RCF EVOX J11 White Active 3-Way Column PA Speaker System

Product Overview

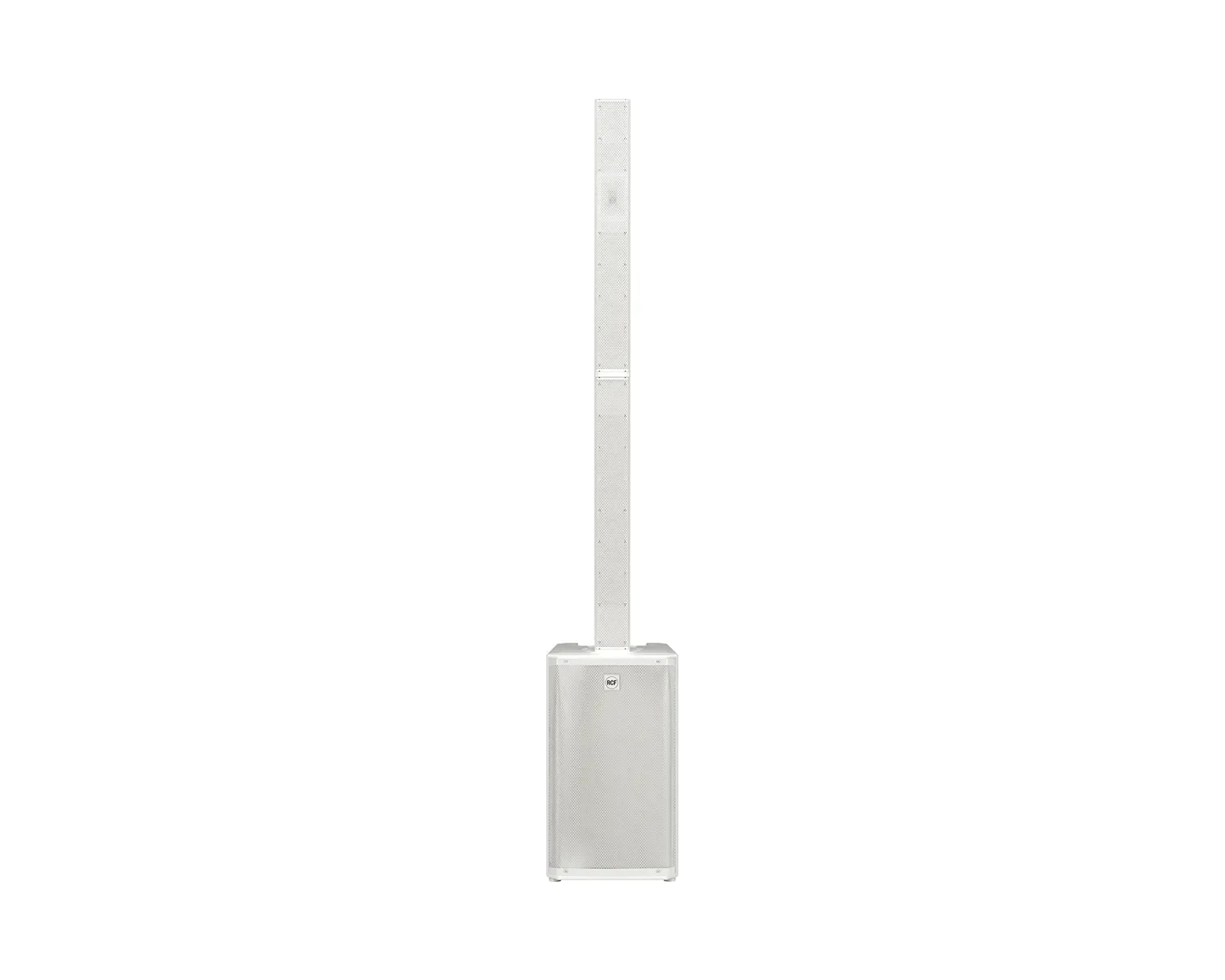

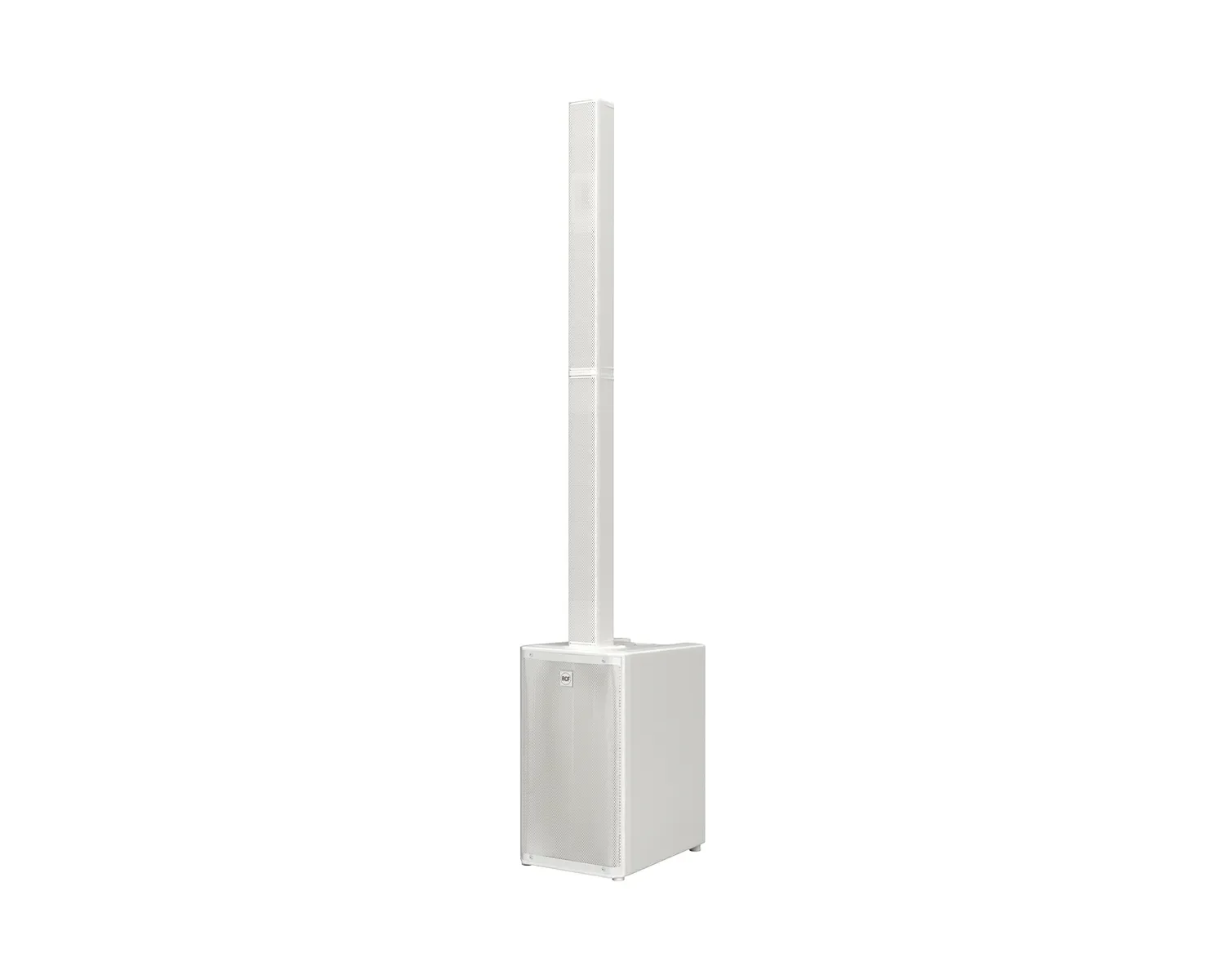

The RCF EVOX J11 White Active 3-Way Column PA Speaker System is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75″ compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12x 3″ full-range transducers and a high-power 12″ woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows.

Driven by a 3500W onboard dual-channel Class-D amplifier, the RCF EVOX J11 White Active 3-Way Column PA Speaker System delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

Available in white, the RCF EVOX J11 White Active 3-Way Column PA Speaker System is the ultimate choice for professionals who demand power, clarity, and portability in one elegant package.

Product Description

Professional 3-Way Active Column PA

The RCF EVOX J11 White Active 3-Way Column PA Speaker System represents the perfect fusion of professional column PA technology and portable convenience. Designed for musicians, DJs, and live performers who demand exceptional sound quality in a compact, easy-to-transport package, this system delivers on every level.

Exceptional Coverage and Clarity

At the heart of the system’s superior performance is the 1.75″ neodymium compression driver mounted on a 120° × 40° True Resistive Waveguide. This proprietary RCF technology ensures wide, consistent coverage across the entire listening area, delivering uniform tonal balance whether audience members are seated or standing.

The twelve 3″ full-range neodymium transducers work in perfect harmony to deliver articulate mids and precise vocal definition, making the RCF EVOX J11 White Active 3-Way Column PA Speaker System ideal for both music playback and spoken word applications.

Deep, Controlled Low Frequencies

A high-power 12″ RCF Precision low-frequency woofer with a 2.5″ voice coil housed in a bass-reflex enclosure provides deep, controlled lows that extend down to 37Hz. This powerful subwoofer section ensures the RCF EVOX J11 White Active 3-Way Column PA Speaker System delivers full-range performance with authority and impact.

Touring-Grade Amplification and DSP

Powered by a 3500W dual-channel Class-D amplifier, the RCF EVOX J11 White Active 3-Way Column PA Speaker System achieves touring-grade dynamics with exceptional headroom. The built-in DSP processor offers four carefully tailored presets:

• LINEAR/LIVE – Flat, accurate response for critical listening and live performances

• CLUB – Enhanced low-end for DJ and dance applications

• VOICE – Maximum intelligibility for speech and presentations

Premium Construction

The RCF EVOX J11 White Active 3-Way Column PA Speaker System features a PP Composite cabinet with an aluminium stand mount for the satellite speakers. The system includes:

• PP Composite cabinet for lightweight durability

• Steel grille for driver protection

• Quick-fit pole mount socket for rapid deployment

• 1 top handle for easy transport

• PowerCon TRUE1 TOP IN/OUT mains connectors for secure, reliable power

• Convection cooling for silent operation

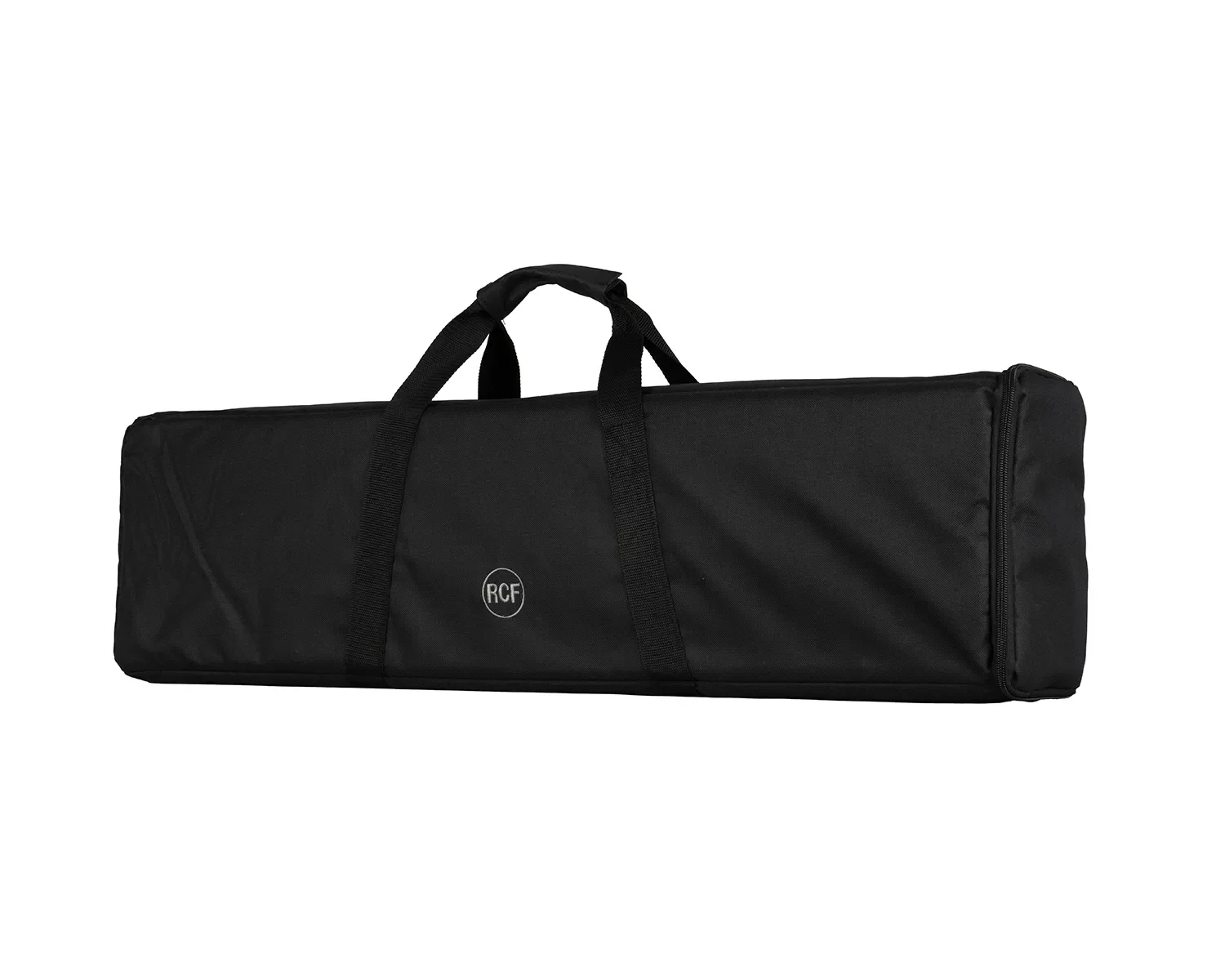

• Padded carrying bag for the satellite speakers

Key Advantages

• Professional 3-way active column PA system

• 3500W peak power with Class-D amplification

• 132 dB maximum SPL for demanding live applications

• 1.75″ neodymium compression driver with 120° × 40° True Resistive Waveguide

• Twelve 3″ full-range neodymium transducers for articulate mids

• 12″ RCF Precision woofer for deep, controlled bass

• Frequency response from 37Hz to 20kHz

• Built-in DSP with 4 presets (LINEAR/LIVE, CLUB, VOICE)

• Composite cabinet with aluminium stand mount

• PowerCon TRUE1 TOP mains connector

• Padded carrying bag included

• Available in white

Key Features

• Professional 3-way active column loudspeaker

• 3500W peak Class-D amplifier (1500W HF + 2000W LF)

• 132 dB maximum SPL

• 1.75″ neodymium compression driver with 1.75″ voice coil

• 120° × 40° True Resistive Waveguide for wide, consistent coverage

• 12x 3″ full-range neodymium transducers with 1″ voice coils

• 12″ RCF Precision low-frequency woofer with 2.5″ voice coil

• Frequency response: 37Hz – 20kHz

• Crossover frequencies: 160Hz / 1800Hz

• Built-in DSP with presets: LINEAR/LIVE, CLUB, VOICE

• Soft limiter with thermal and RMS protections

• Convection cooling for silent operation

• PowerCon TRUE1 TOP IN/OUT mains connectors

• Combo XLR/Jack input and XLR output

• PP Composite cabinet with aluminium stand mount

• Steel grille for driver protection

• Quick-fit pole mount socket

• 1 top handle for easy transport

• Padded carrying bag for satellite speakers included

• CE Compliant

• Available in white

Specifications

Applications

The RCF EVOX J11 White Active 3-Way Column PA Speaker System is perfect for:

• Live bands and musicians

• Solo performers and acoustic acts

• DJs and mobile entertainers

• AV rental companies

• Corporate presentations and conferences

• Weddings and celebrations

• Houses of worship

• Clubs and bars

• Schools and educational environments

• Theatres and performance venues

• Outdoor events and festivals

• Any application requiring professional audio in a portable package

Why Choose the RCF EVOX J11 White Active 3-Way Column PA Speaker System?

The RCF EVOX J11 White Active 3-Way Column PA Speaker System represents the ultimate in portable column PA technology. With its 3500W of peak power, 132 dB maximum SPL, and professional three-way design, this system delivers the performance and reliability that demanding live sound applications require.

The 1.75″ neodymium compression driver with True Resistive Waveguide ensures wide, consistent coverage, while the twelve 3″ full-range transducers deliver articulate mids and precise vocal definition. The 12″ RCF Precision woofer provides deep, controlled lows that extend to 37Hz, ensuring full-range performance with authority.

The built-in DSP with presets (LINEAR/LIVE, CLUB, VOICE) allows you to optimise the system for any application instantly. Whether you’re performing live, DJing at a club, or delivering a corporate presentation, the RCF EVOX J11 White Active 3-Way Column PA Speaker System delivers the sound quality, flexibility, and portability you need.

With its PP Composite cabinet, aluminium stand mount, and padded carrying bag, the RCF EVOX J11 White Active 3-Way Column PA Speaker System is built for the road and ready for any challenge.
