Description

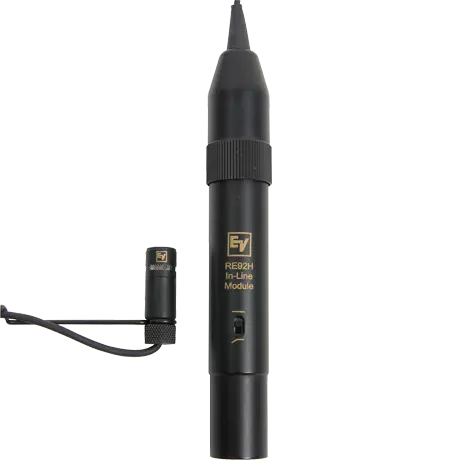

Electro-voice RE92H Cardioid Pattern Hanging Microphone W/HPF

RE92H

Cardioid pattern hanging microphone w/HPF

Hanging installation microphone
Wide, smooth frequency response
Cardioid polar pattern
In-line electronics module
12 dB/octave switchable high pass filter
Transformer less differential output to drive long cables

Designed specifically for applications where the condenser microphone needs to be suspended from above the sound source. The RE92H is ideal for theatre, house of worship or any application where a small, high-quality mic needs to be “heard but not seen.” Also available in white (RE92HW).

SPECIFICATIONS

Connector Type	3-pin XLR
Maximum SPL (1% THD)	135dB
Height	0.41″ (10.5mm)
SPECIFICATIONS

Weight Net	8.47oz (240g)
Frequency Response (-3 dB)	40 – 20,000 Hz
Family	RE Series Installation
Polar Pattern	Cardioid
Wired/Wireless	Wired
Mic Type	Hanging
Diameter (Max)	1.26″ (32mm)
Element	Condenser (back-electret)
Impedance, Low-Z balanced	250Ω
Open Circuit Voltage	5.6mV/Pascal
Case Material	Metal
Finish	Non-reflective black or white
Power Requirement	24 – 52 V Phantom
Current Consumption	6 mA
Specials	external pre-amp
