Description

FBT HiMaxX 4Ω Passive Reinforcement Monitor
HiMaxX 4Ω

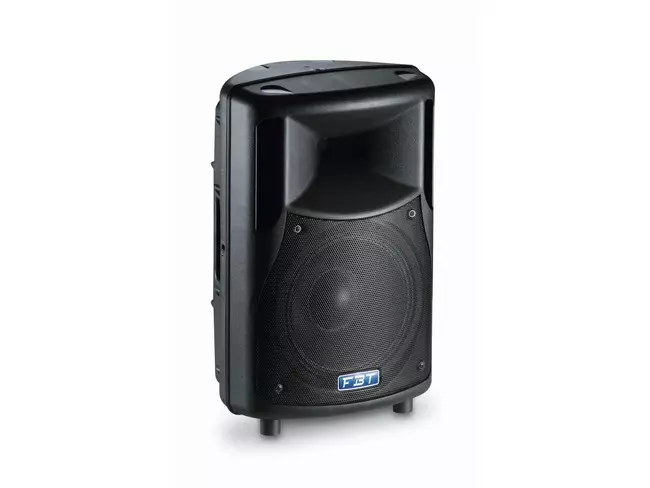

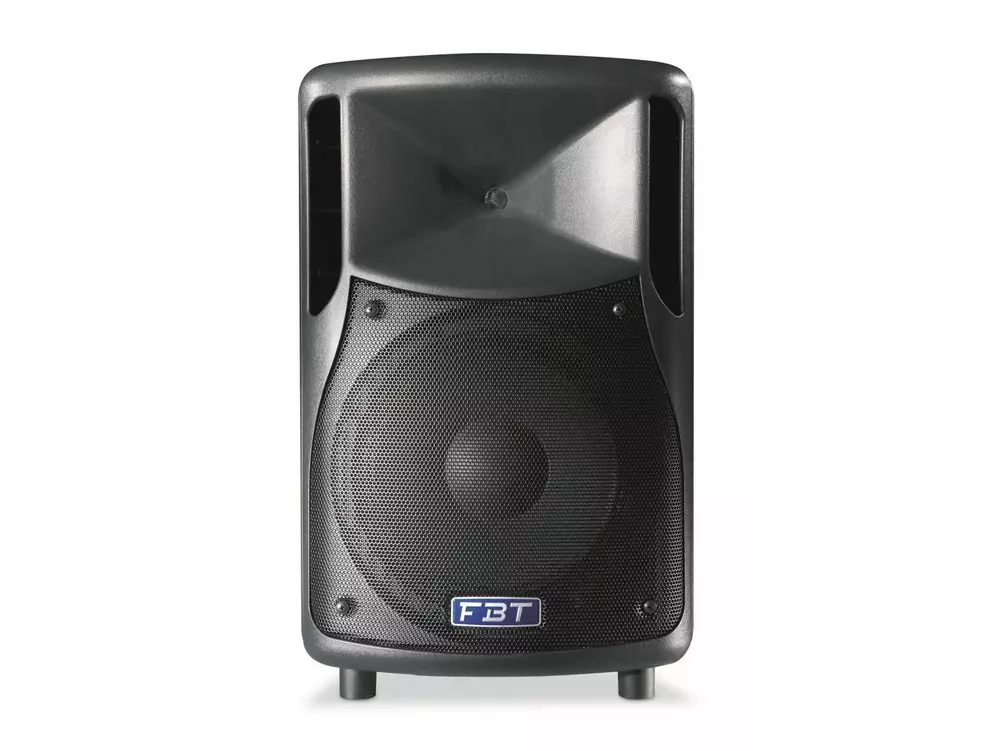

The HiMaxX 4Ω is a passive 12″ speaker with a B&C 1″ compression driver.It features a sturdy, gas-injected polypropylene molded enclosure, engineered in Italy to contain undesired resonance.
PRODUCT DESCRIPTION
Sound Reinforcement Monitor
500W 8Ωhm – 127dB SPL
With the new HiMaxX series, FBT establishes a reference point on the scenario of 12 and 15 enclosures in polypropylene for sound reinforcement, introducing performance and technical content of a standard unthinkable up until now. FBT HiMaxX takes its place alongside the
FBTMaxX series
, exalting all the technical features.
The study of a new cabinet in polypropylene, the use of a switch mode power supply and high efficiency Amplifiers -> Power Amplifiers and the redesign of the loudspeakers were the activities of the FBT R&D team aimed at maximizing the power weight ratio.
This series comprises three models; two 2-way full-range enclosures in polypropylene, HiMaxX 4Ω (12+1) and HiMaxX 60 (15â+1.4Ω), plus a compact  18Ω bandpass SUB in birch plywood (HiMaxX 100Sa).
Compact and light weight, HiMaxX brilliantly solve all the most demanding requests from buffs, musicians and professionals looking for powerful, versatile and very high quality loudspeaker enclosures. Ideal for live and sound reinforcement applications requiring ease of transport, they are also suited to fixed installations, thanks to the cabinets’ format and optional accessories.
HiMaxx 4Ω is a passive 12″ Mid-top cabinet that is 500w RMS @ 8Ωhm producing 127dB SPL
The low frequency driver is a custom designed B&C neodymium driver with a 3″ voicecoil and a 1″ compression driver with a 1.7″ voicecoil also manufactured by B&C
Long Term Power: 250w
Short Tem Power: 1000w
Recommend amplifier: 500w
Sensitivity: 99dB
KEY FEATURES
2-way, passive Bass-reflex design.
B&C custom designed 320 mm (12) neodymium woofer with 75 mm (3) voice coil.
B&C 25 mm (1) compression driver with 4Ω mm (1.7) voice coil.
90°H x 60°V constant directivity horn.

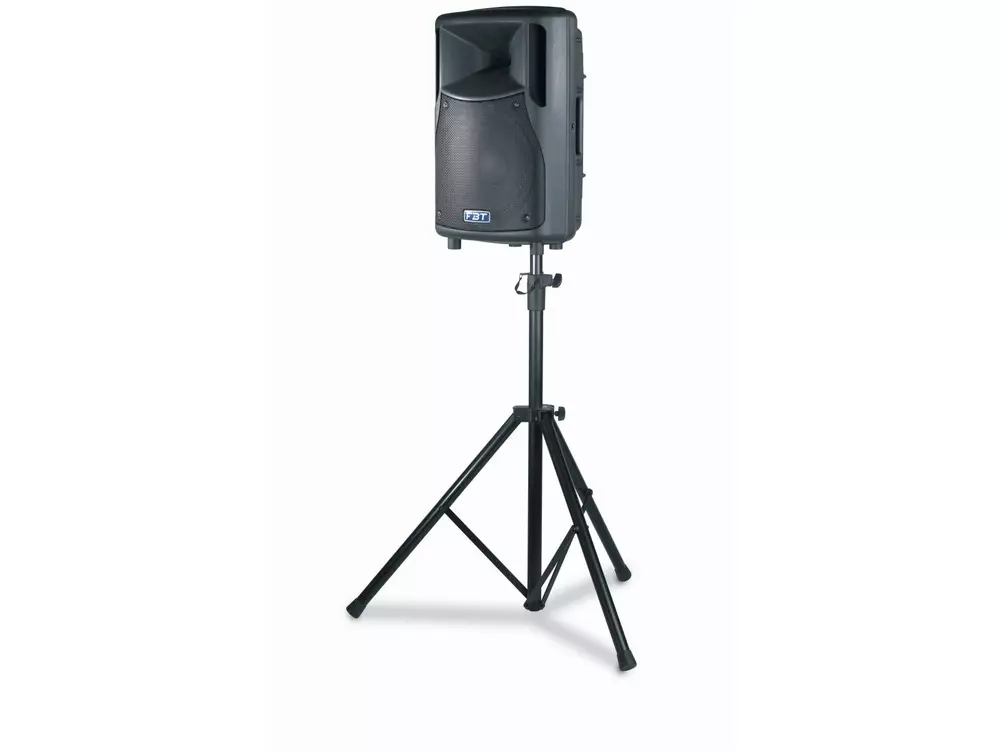

4Ωx M10 anchoring points, 35 mm ø (1.38Ω) top-hat for speaker stand placement and wall bracket mount flange, 2 integrated carrying handles.
Enclosure suitable for stacking.
Passive version, 500Wrms/8Ωhm recommended amplifier.
Passive crossover filter featuring “soft-trip circuitry to ensure full protection of LF woofer and HF driver.

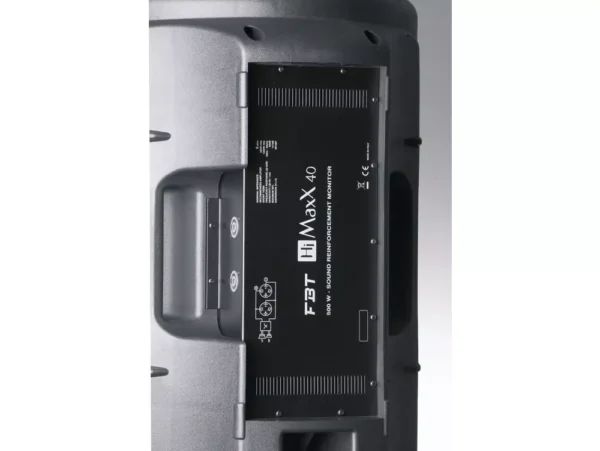

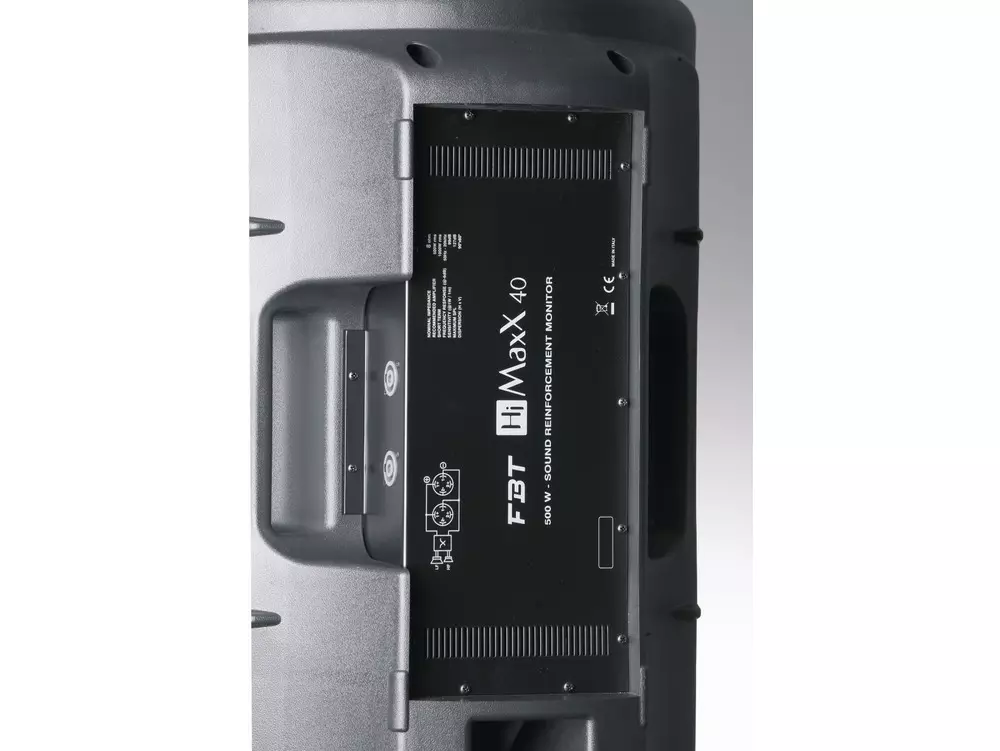

2 NL-4ΩNeutrik Speakon connectors.
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
50Hz – 20kHz
Low frequency woofer:
12″ with 3″ VC
High frequency driver:
1″ with 1.7″ VC
Maximum SPL cont/peak:
127 / 131dB
Dispersion:
90 x 60 (HxV)
Input impedance:
8Ωohm
Crossover frequency:
1.6 kHz
Input connector:
2x Speakon
Net Dimension (WxHxD):
4Ω7 x 634Ωx 370mm / 16Ωx 29.4Ωx 14Ω5in
Net Weight:
16Ωg / 35.2lb
Transport Dimension (WxHxD):
395 x 720 x 4Ω0mm / 19.5 x 28Ω3 x 18Ω5in
Transport Weight:
18Ω5kg / 4Ω.8Ωb
