Description

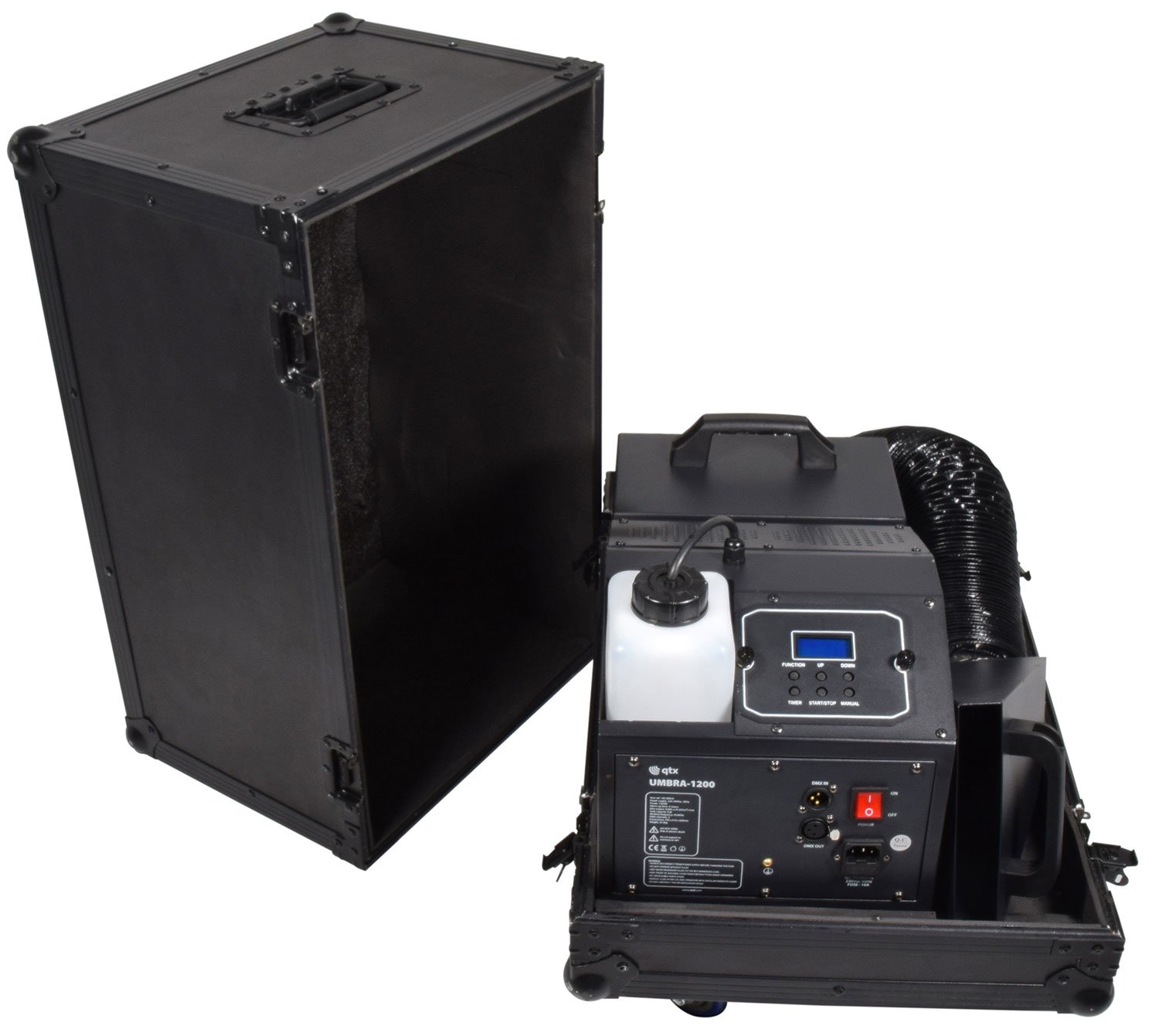

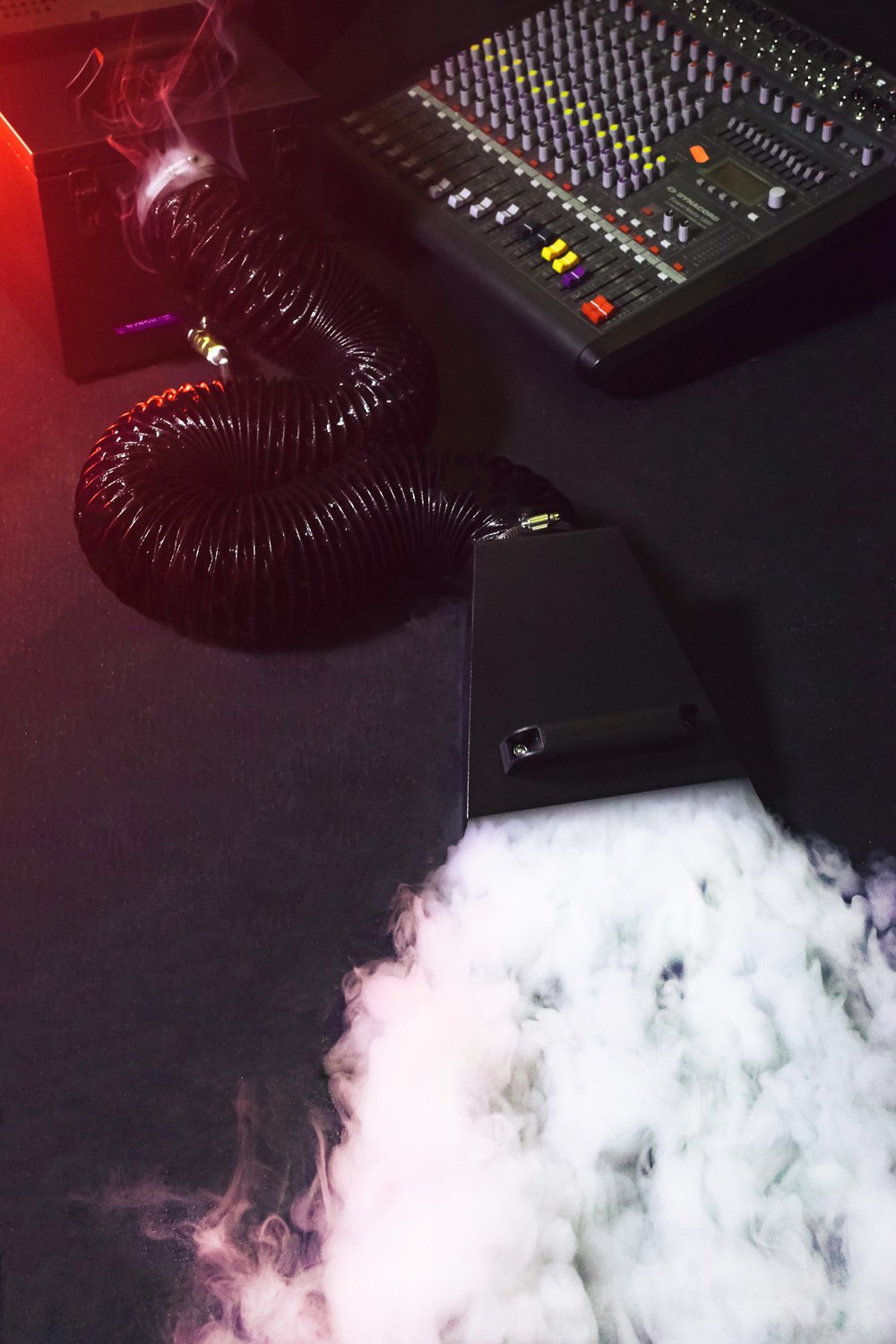

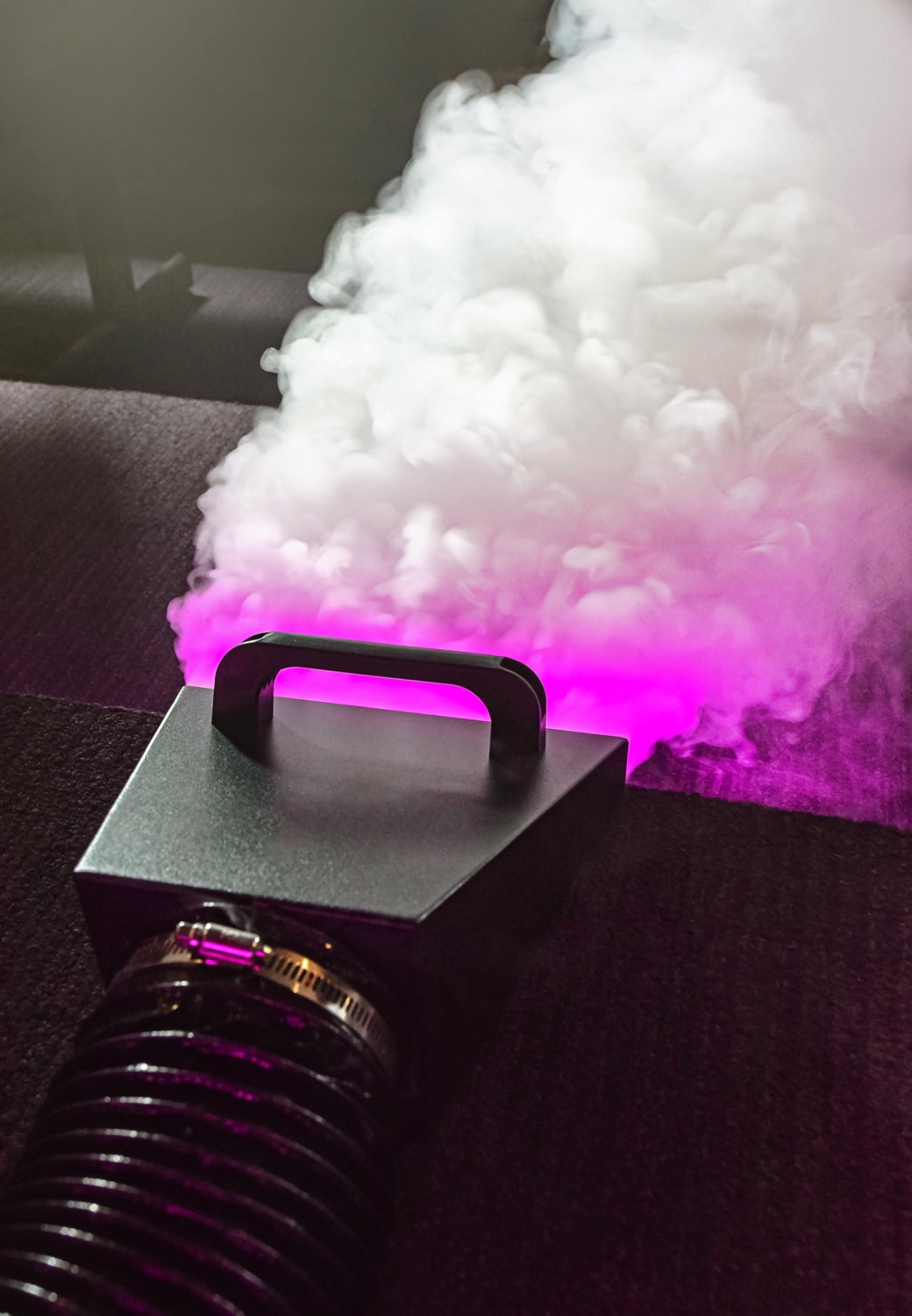

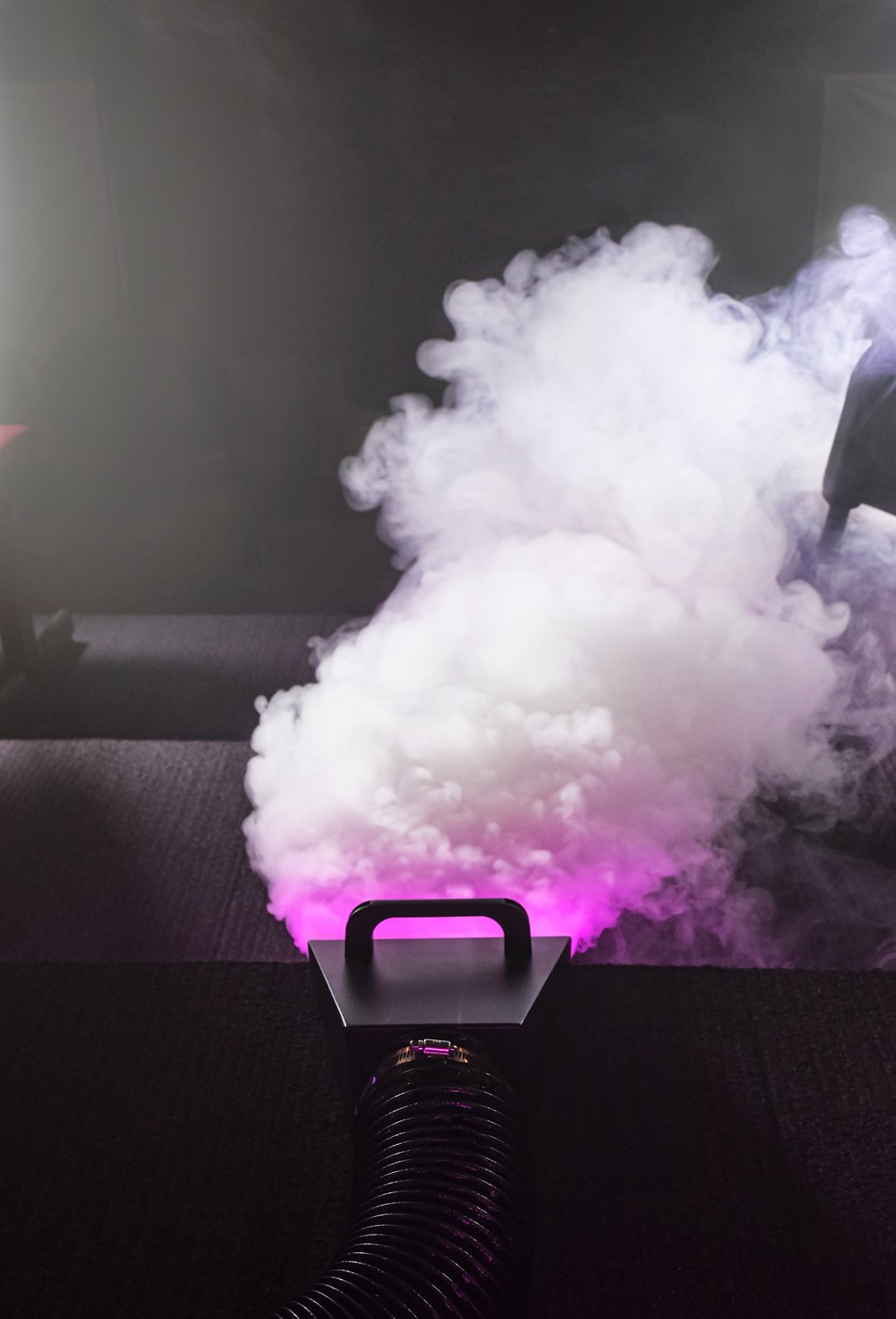

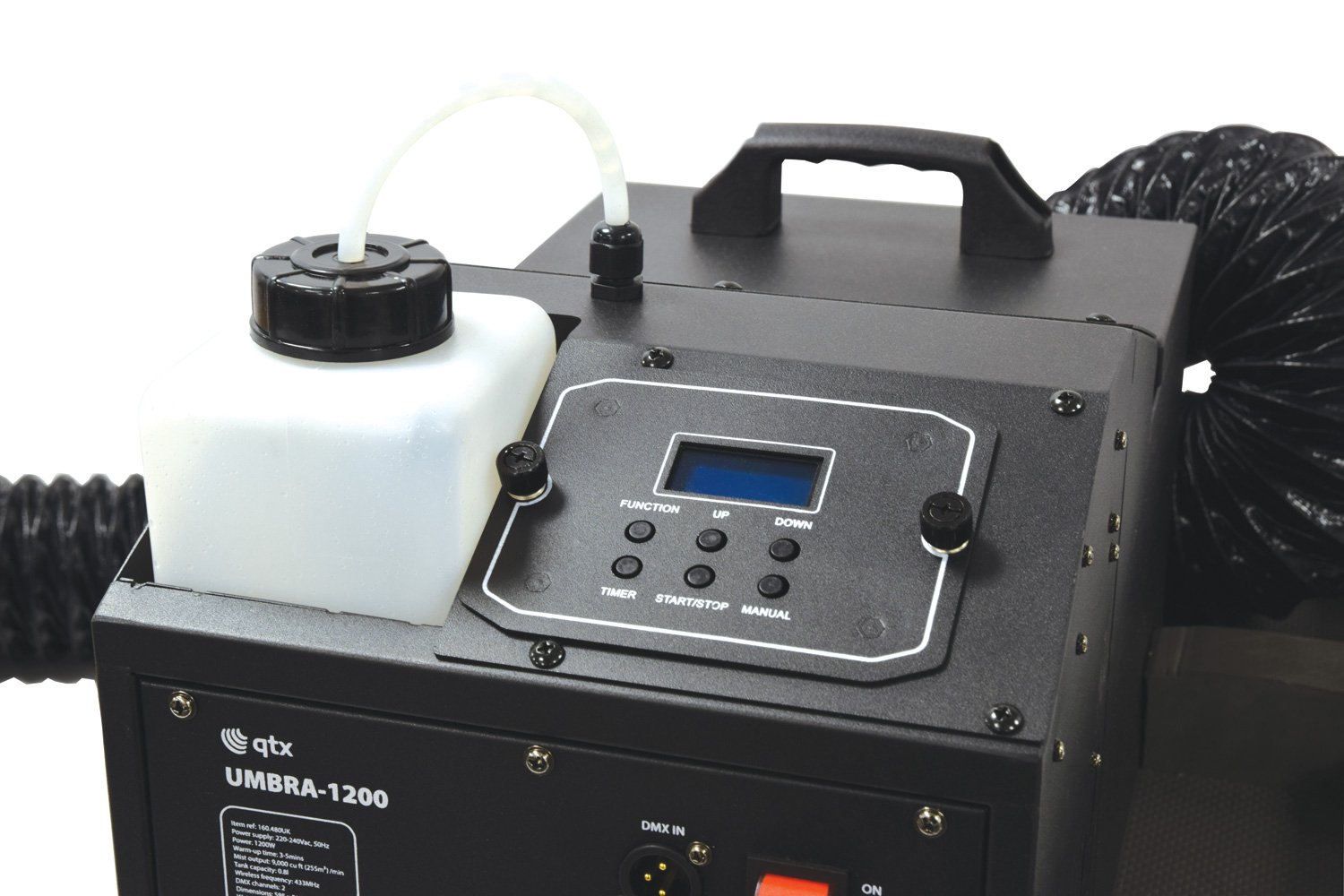

Stage effect machine producing ‘dry ice’ type low fog effects without the use of carbon dioxide or ice. New technology delivers a ground-hugging mist from standard fog fluid and water. Housed in a full flight case with castors for portability, the main unit has a removable fluid tank and easy access water reservoir with drain tap. the mist is delivered via a flexible duct and output funnel to allow the user to direct the effect onto a specific area of the stage. Operated by the onboard digital control panel, which can be detached as a wired remote or via DMX512. Designed to provide a dramatic low flowing mist scene for stages, theatres and themed events.
Power supply 220-240Vac, 50Hz (IEC)
Dimensions 590 x 510 x 410mm (in flight case)
Weight 25kg (in flight case)
Connection DMX in & out (3-pin XLR)
Power consumption 1200W
Fluid capacity 0.8 litre (fog fluid)
Fog output 9000 Cu Ft (255m³) /min
DMX channels 2
Warm up time 3-5 minutes
Fuse F8AL
Remote control connection 5-pin XLR
