Description

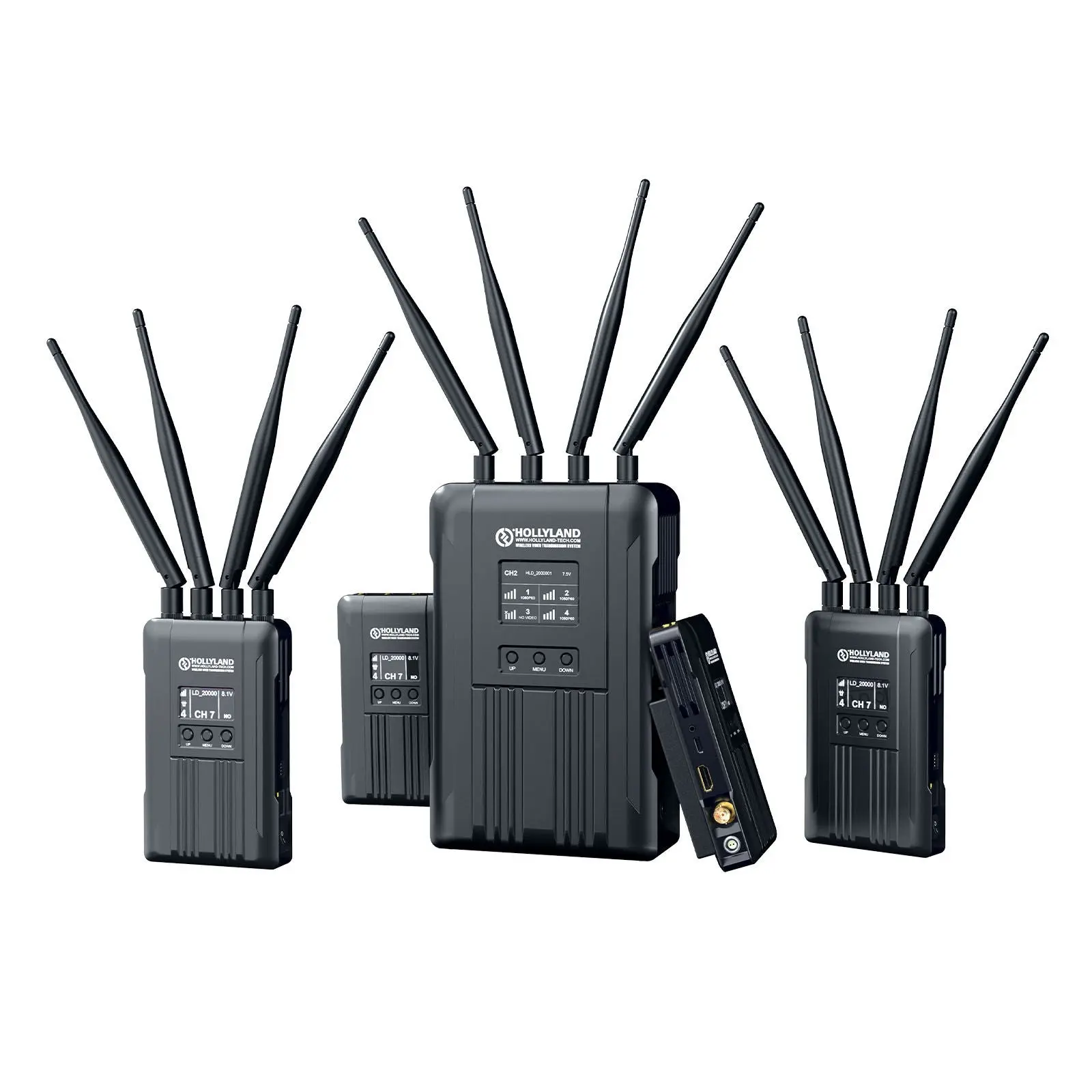

421S-4TX1RX AV Transmission System
The receiver features 4 x SDI and 4 x HDMI outputs (one for each transmitter) to connect to a monitor or switcher Control PTZ cameras via IP or RS-422/485 serial connections Transmitters have a dedicated tally output port that supports optional tally lights Transmitters and receiver feature a 2-Pin power input for alternate DC power options Up to 1080p60 transmitter/receiver system 1800ft (548.64m) line-of-sight transmission Passes control and tally over LAN OLED display – Confirms the resolution transmission channel signal strength and battery power System includes a heavy-duty utility case with foam inserts featuring pressure relief valves for international travel waterproof o-ring seal between the lid and base safety lock latches and ID slot Additional wireless transmitter available – Order code: HL0022.

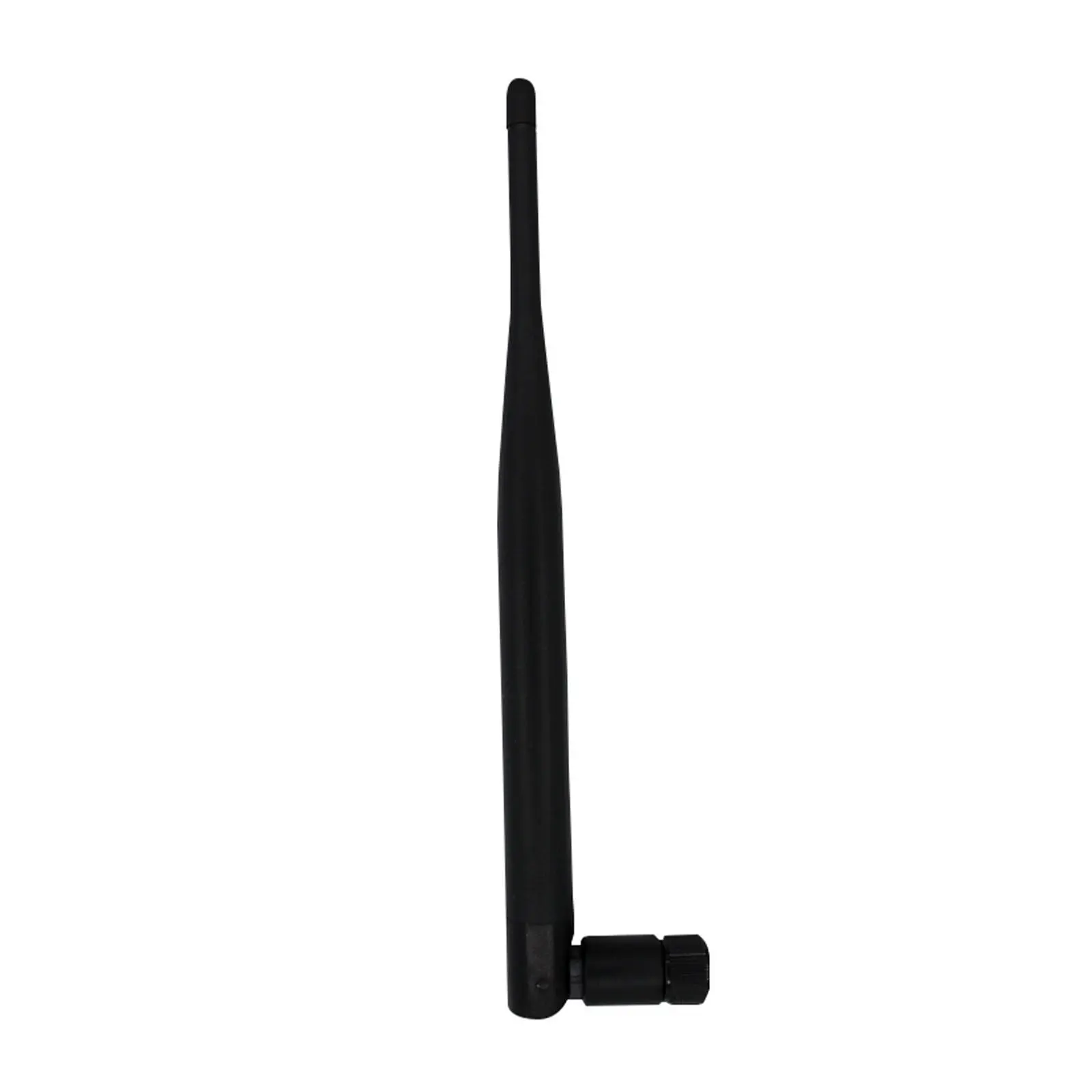

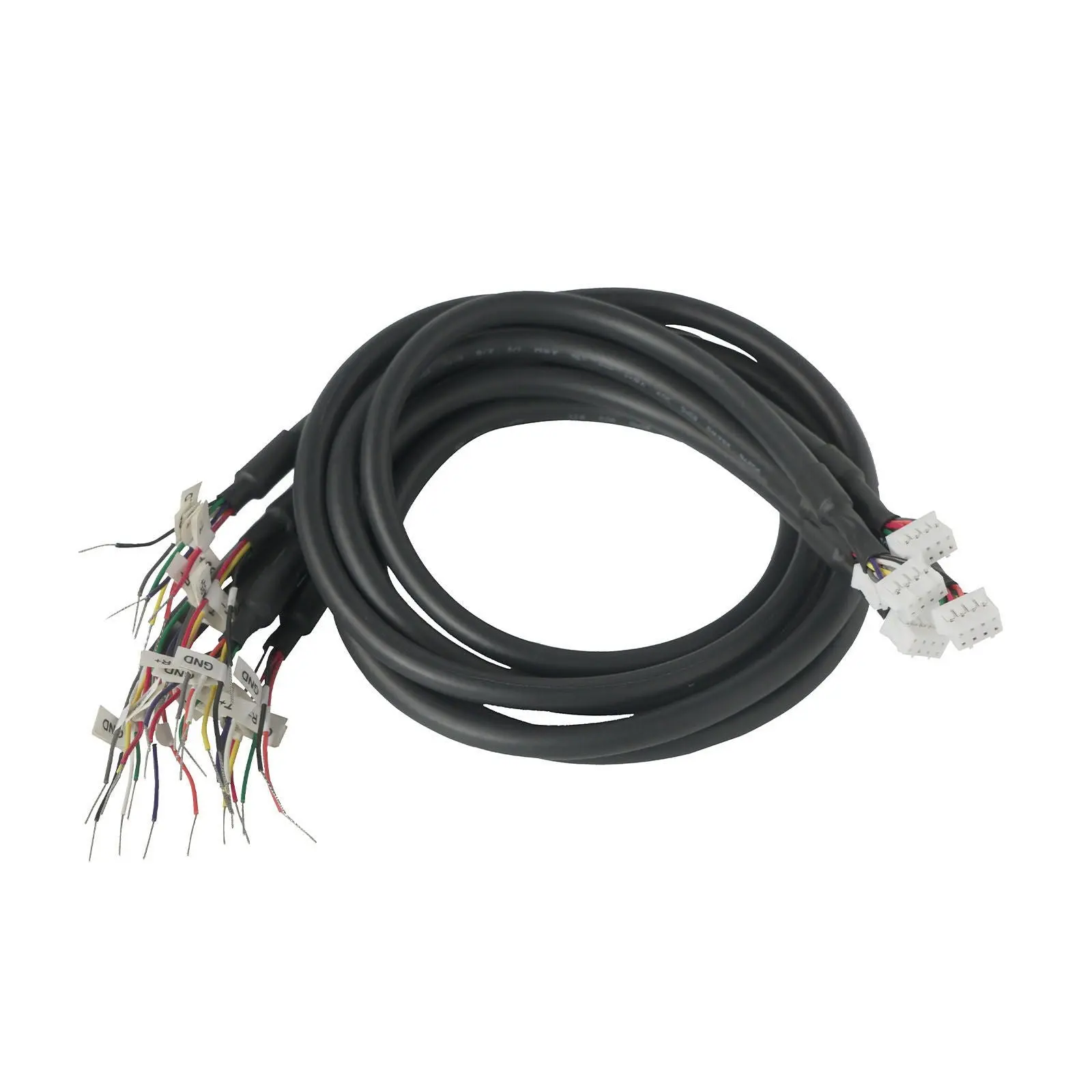

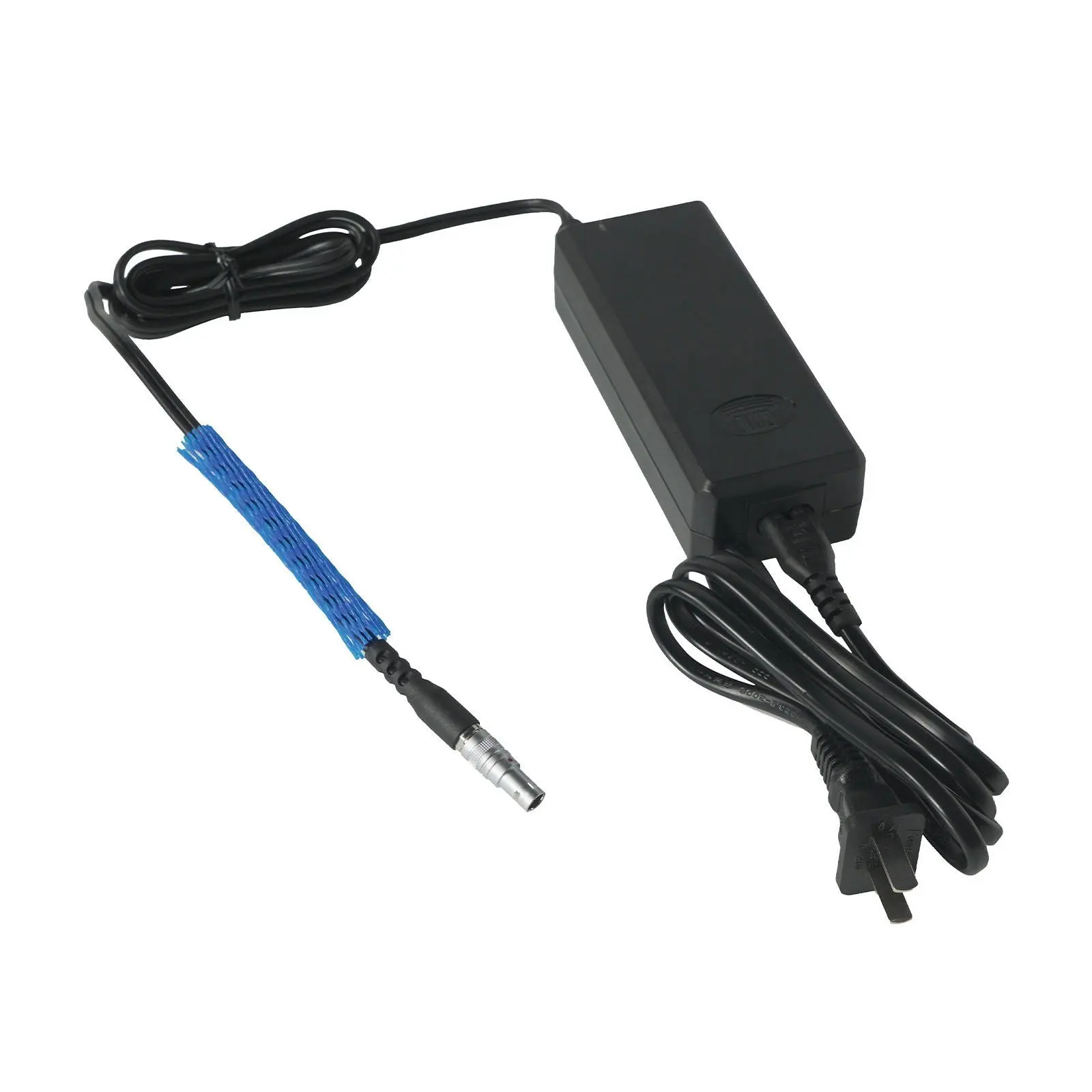

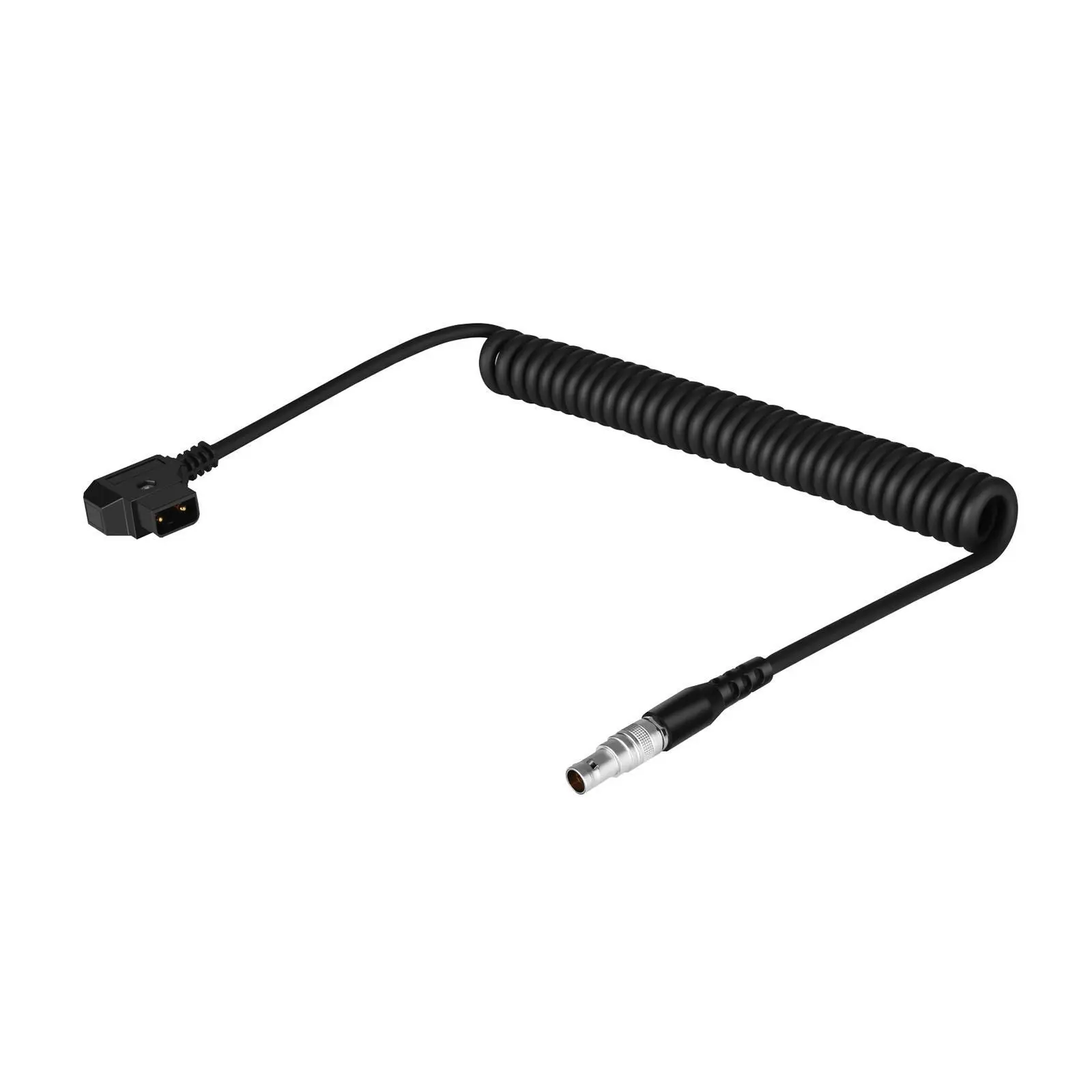

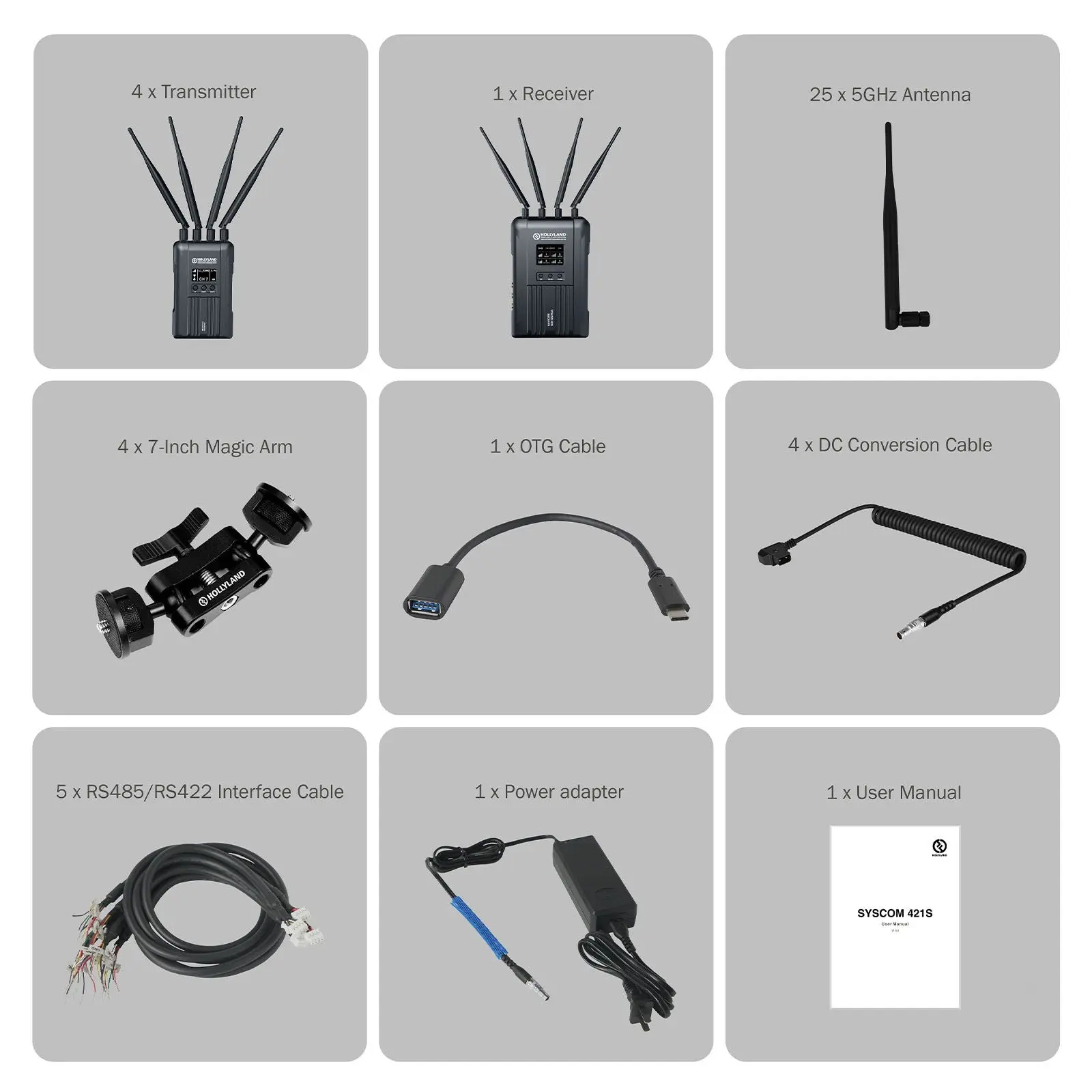

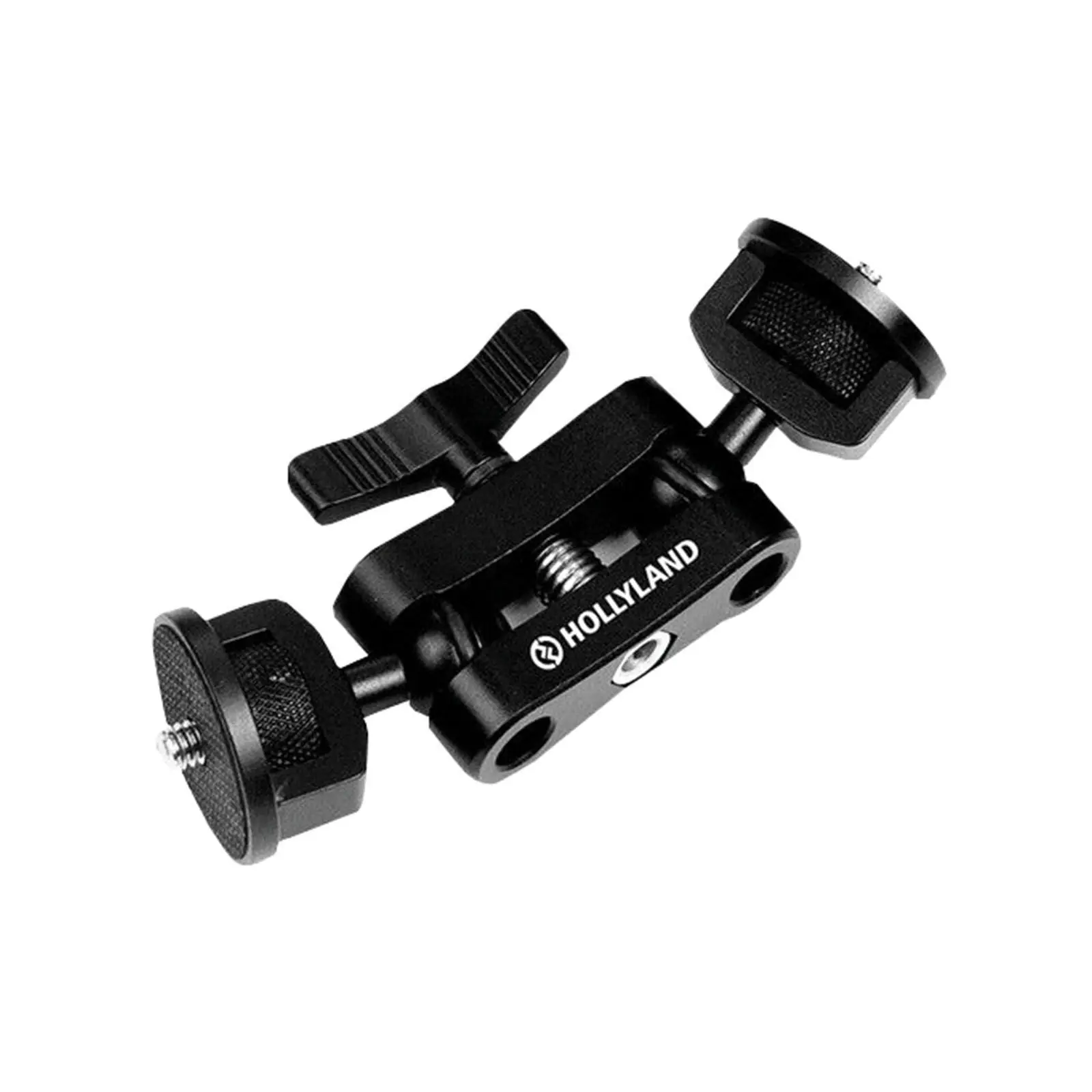

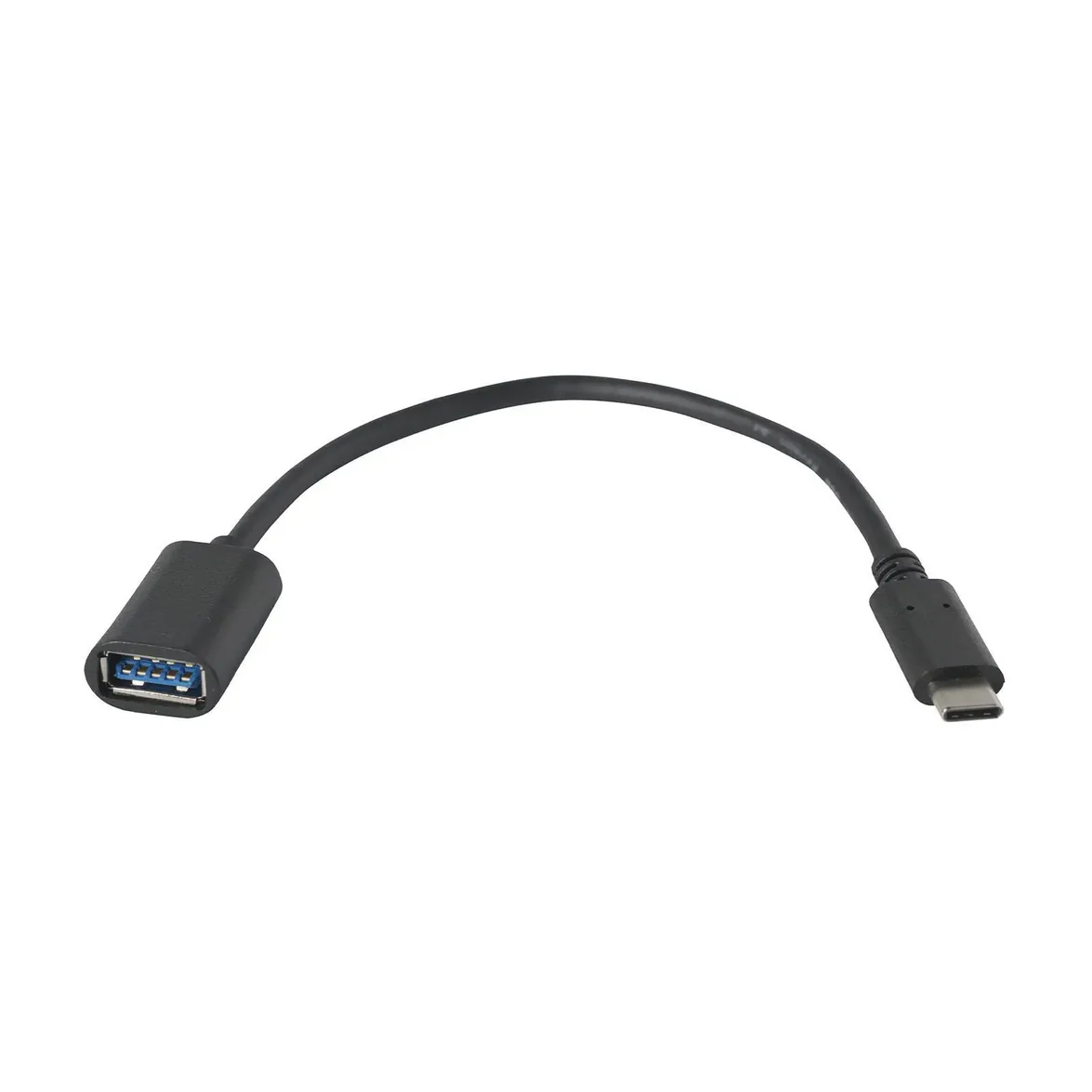

Contents: 4 x Transmitter 1 x Receiver 25 x 5GHz Antenna 4 x 5.7-inch Magic Arm 1 x OTG Cable 4 x DC Conversion Cable 5 x RS485/RS422 Interface Cable 1 x Power Adaptor 1 x Heavy-duty utility case.

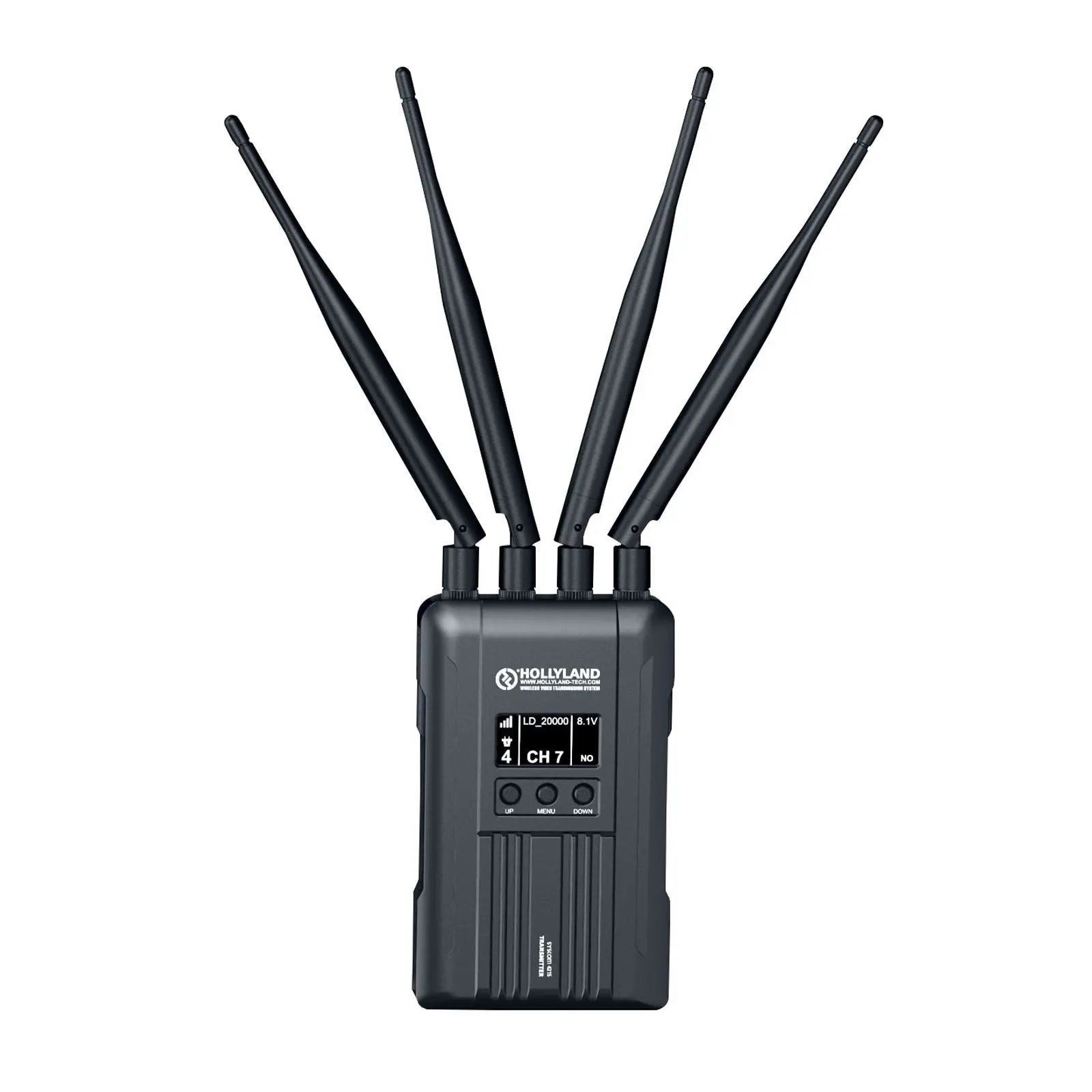

Transmitter Spec:
- Connectivity: SDI Input (BNC Female) HDMI Input (Type A Female) 3.5mm TALLY Output 4 Antenna (RP-SMA Male) DC Power Input USB Type-C LAN RS485/RS422
- Power supply: 7~36V
- DC Frequency: 5.1~5.9GHz
- Dimensions (H x W x D): 144 x 88 x 30mm (External antenna and battery plate excluded)
- Weight: 431.5g

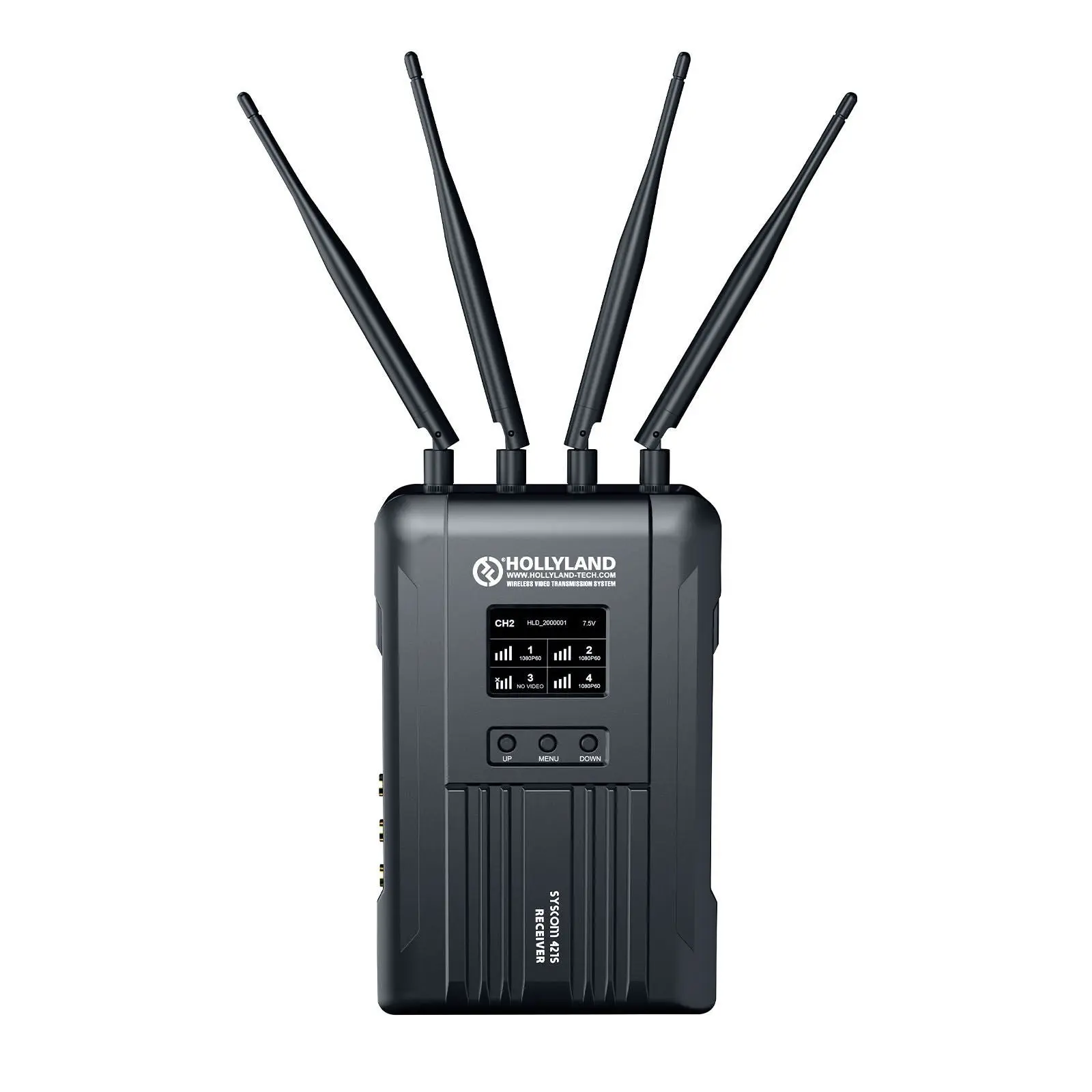

Receiver Spec:
- Connectivity: SDI Input (BNC Female) HDMI Input (Type A Female) 3.5mm TALLY Output 4 Antenna (RP-SMA Male) DC Power Input USB Type-C LAN RS485/RS422
- Power supply: 18~36V
- DC Frequency: 5.1~5.9GHz
- Dimensions (H x W x D): 242 x 148 x 62mm (External antenna and battery plate excluded)
- Weight: 1621g
