Description

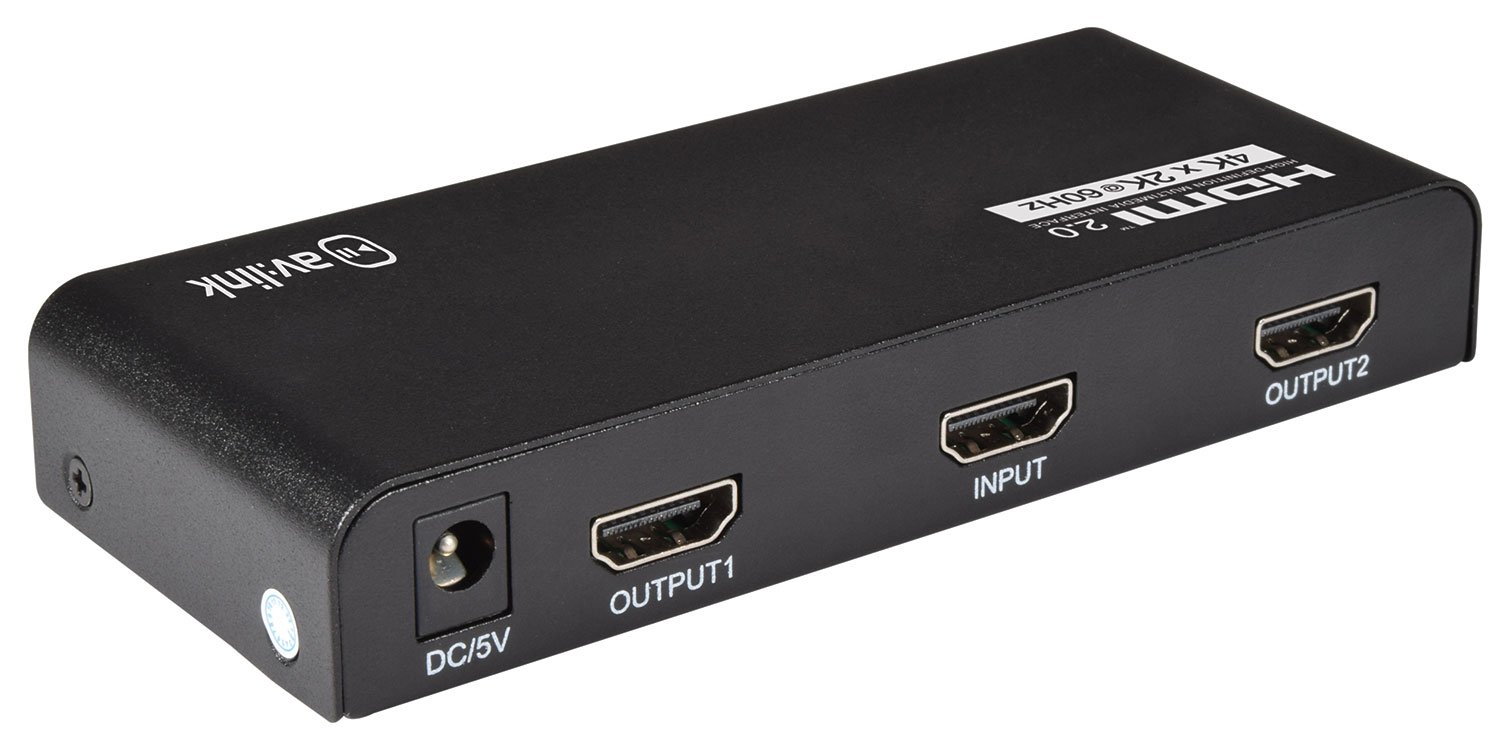

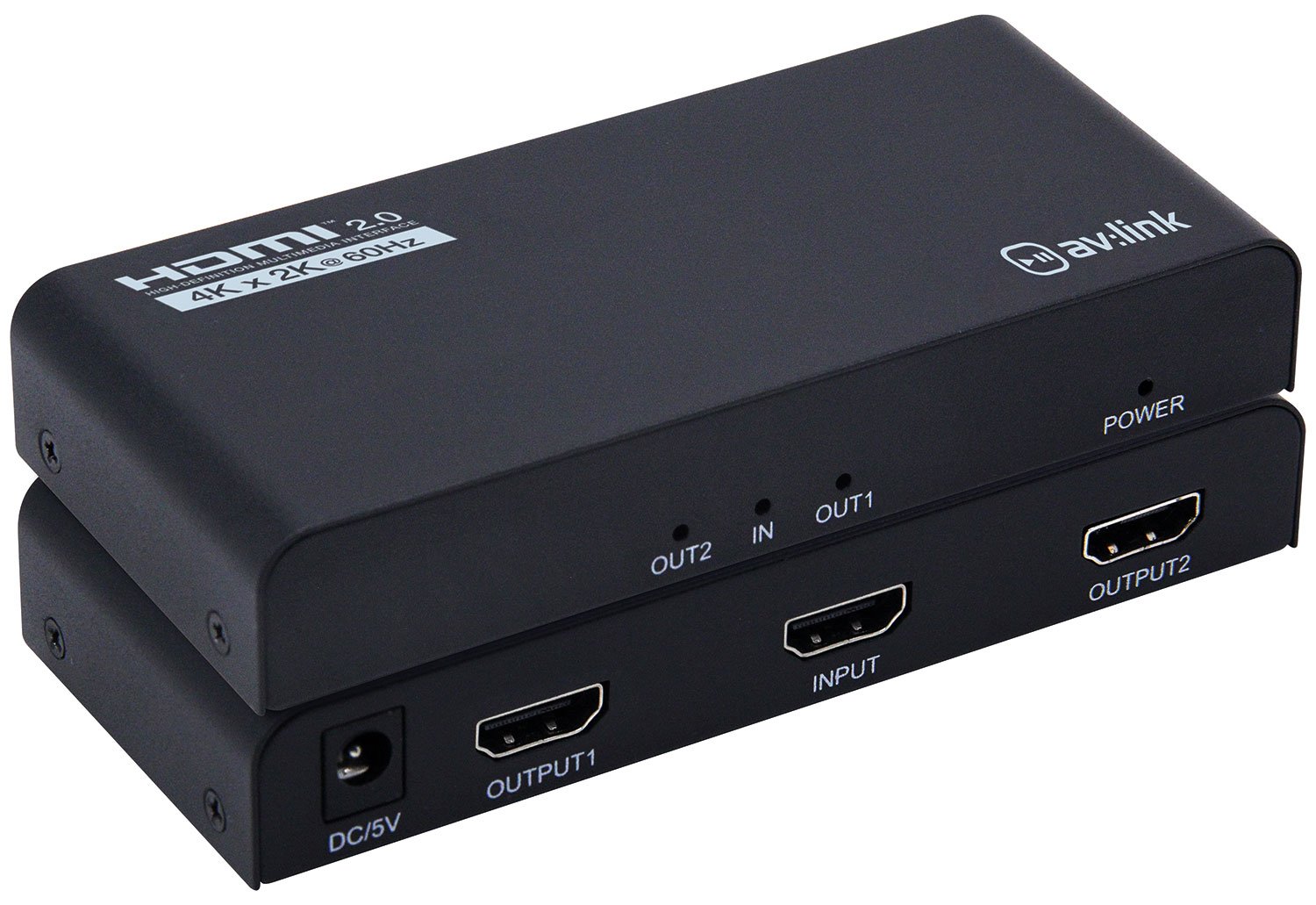

4K HDMI Splitter HDS12v2.0

Slimline 4K HDMI splitters to easily connect a single HDMI source to multiple displays at the same time. This updated version will support HDMI resolutions up to 3840 x 2160 @ 60Hz, compatible with the latest digital TV boxes and game consoles.

• Video resolution Up to 3840 x 2160 @ 60Hz
• Display colours 8/10/12bit deep colour
• Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
• HDCP version 2.2
• Max. bandwidth 600MHz
• Transmission distance 35m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
• Operating temperature range -15°C to +55°C
• Max. baud rate 18Gbps
• Output connections 2x HDMI
• Dimensions 128 x 53 x 23.5mm
• Weight 139g
• Max. working current 450mA
• Power supply Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
