Description

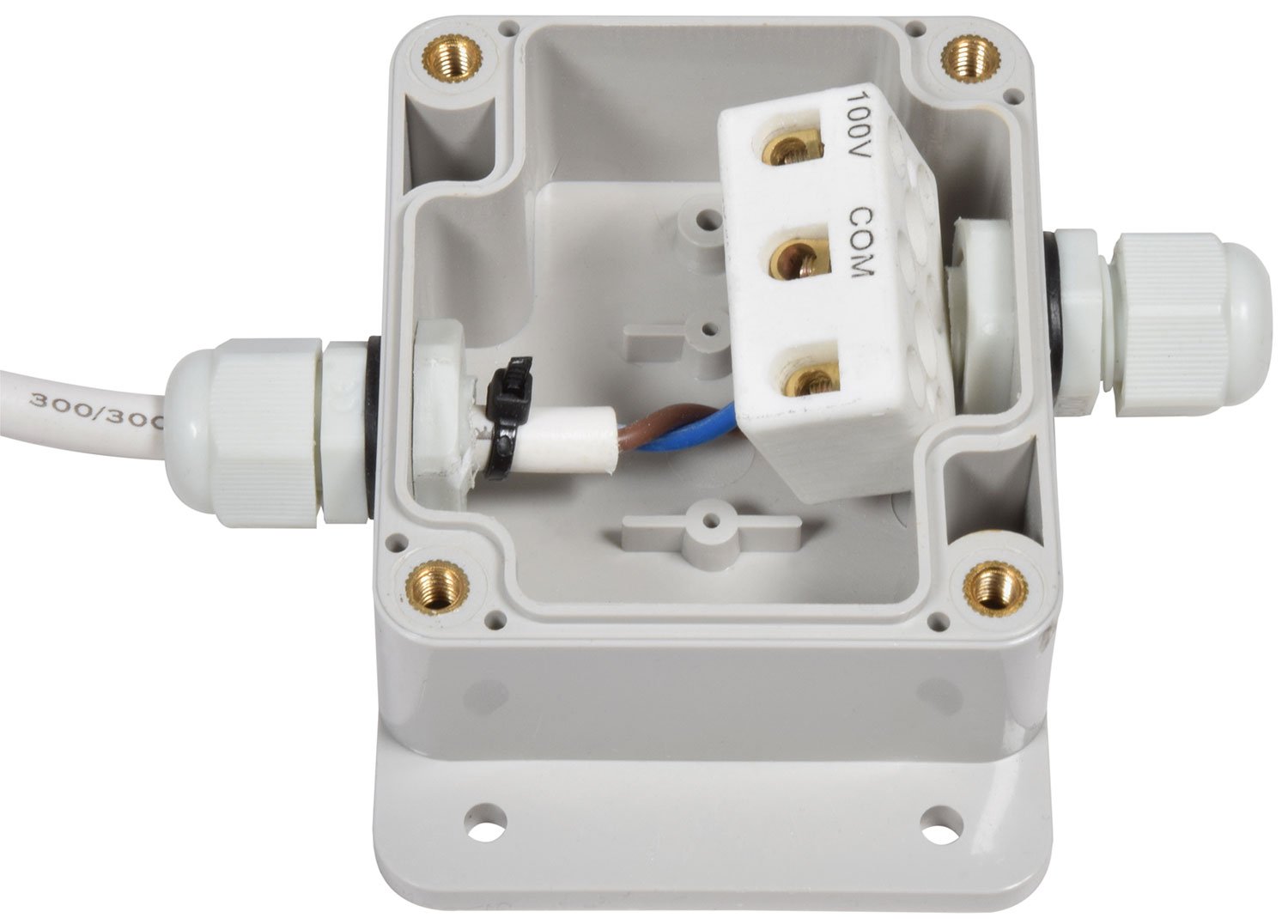

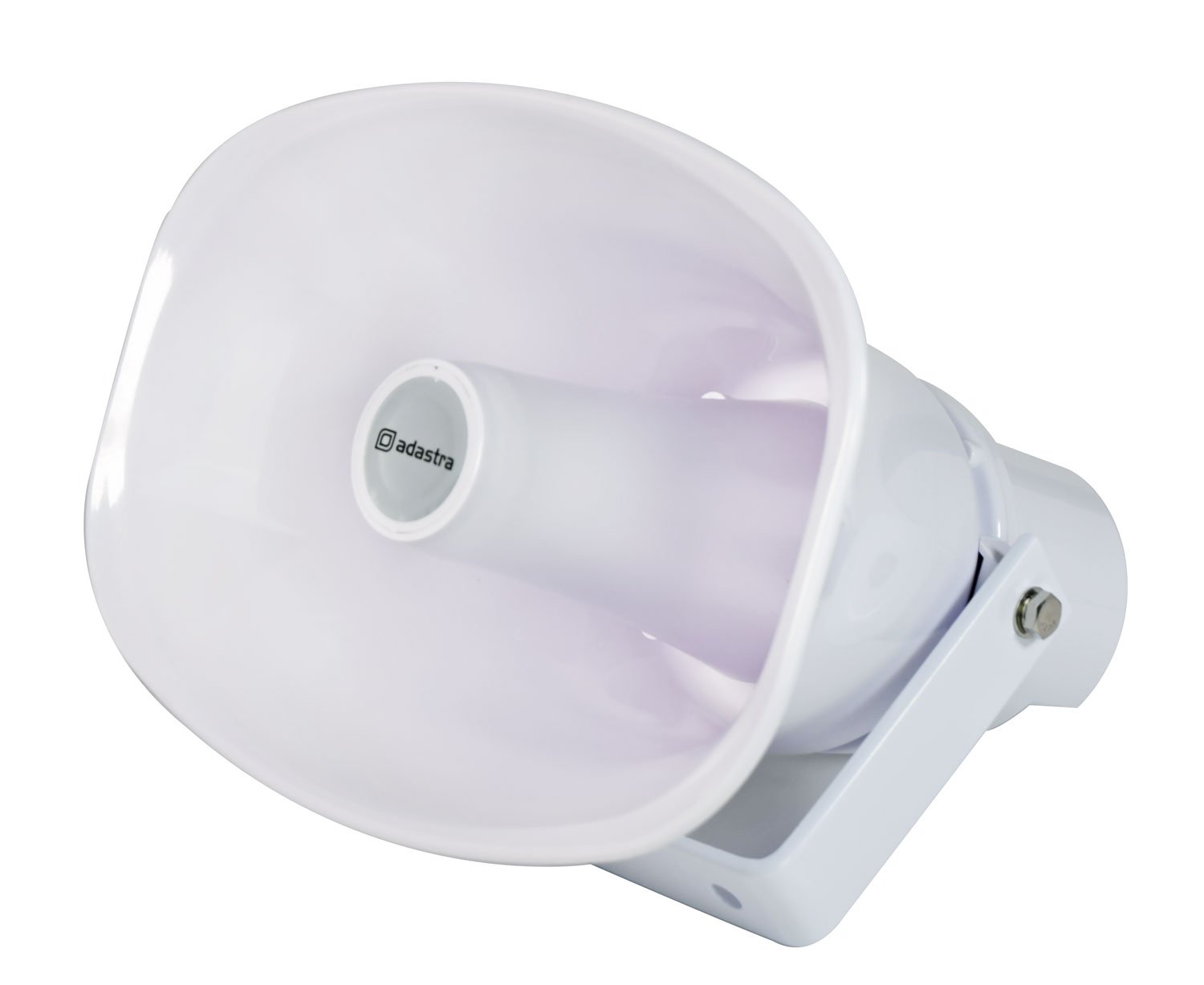

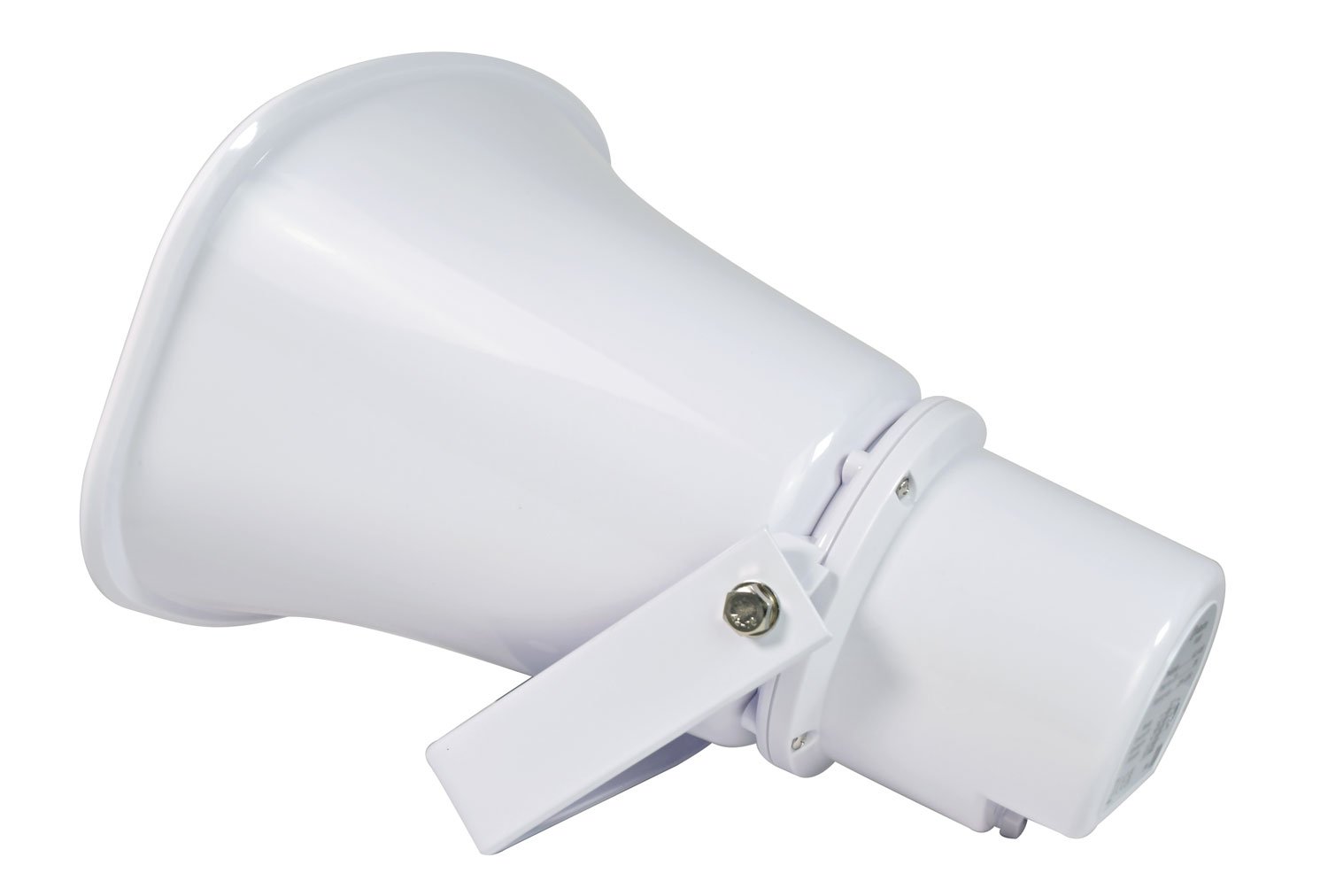

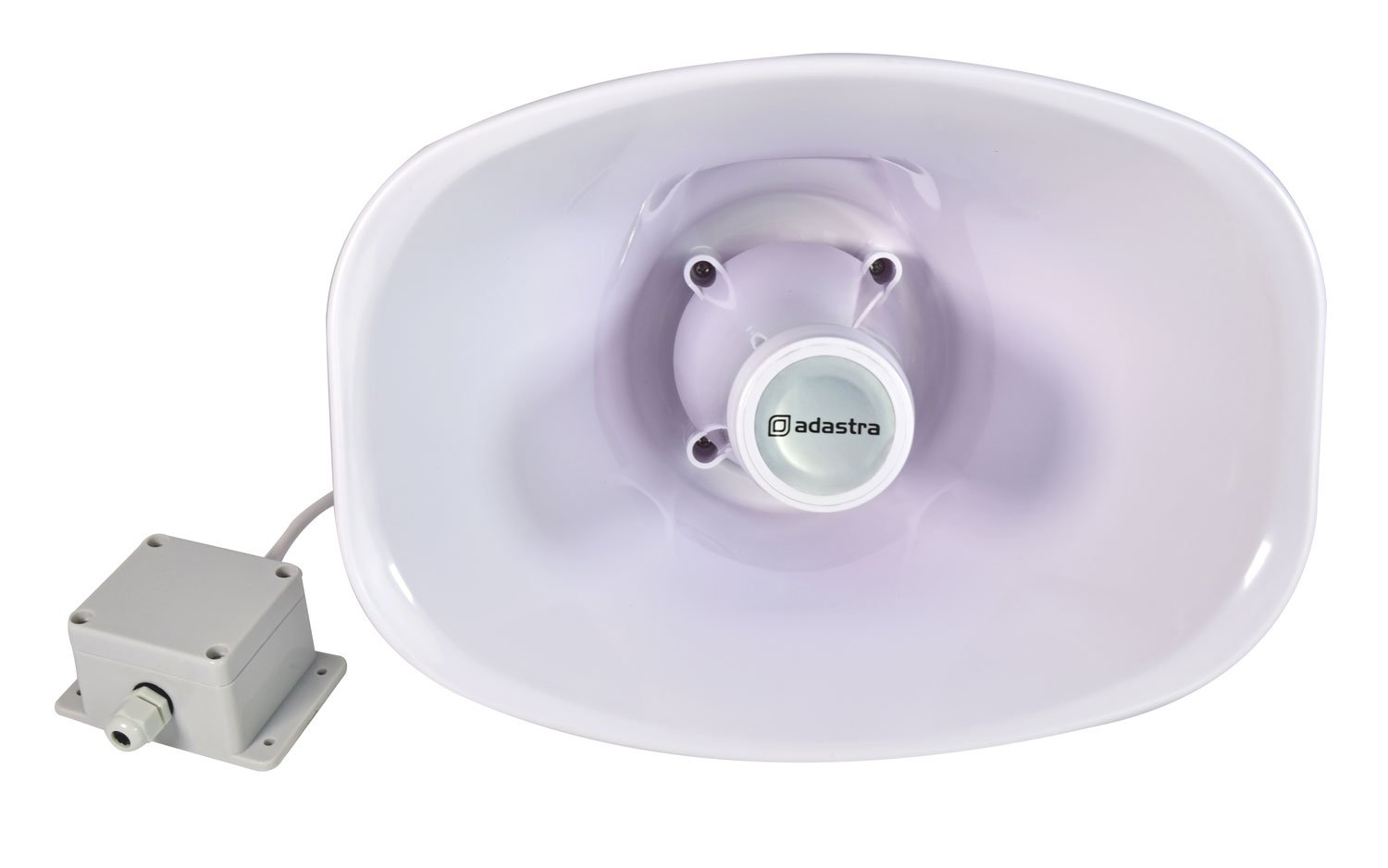

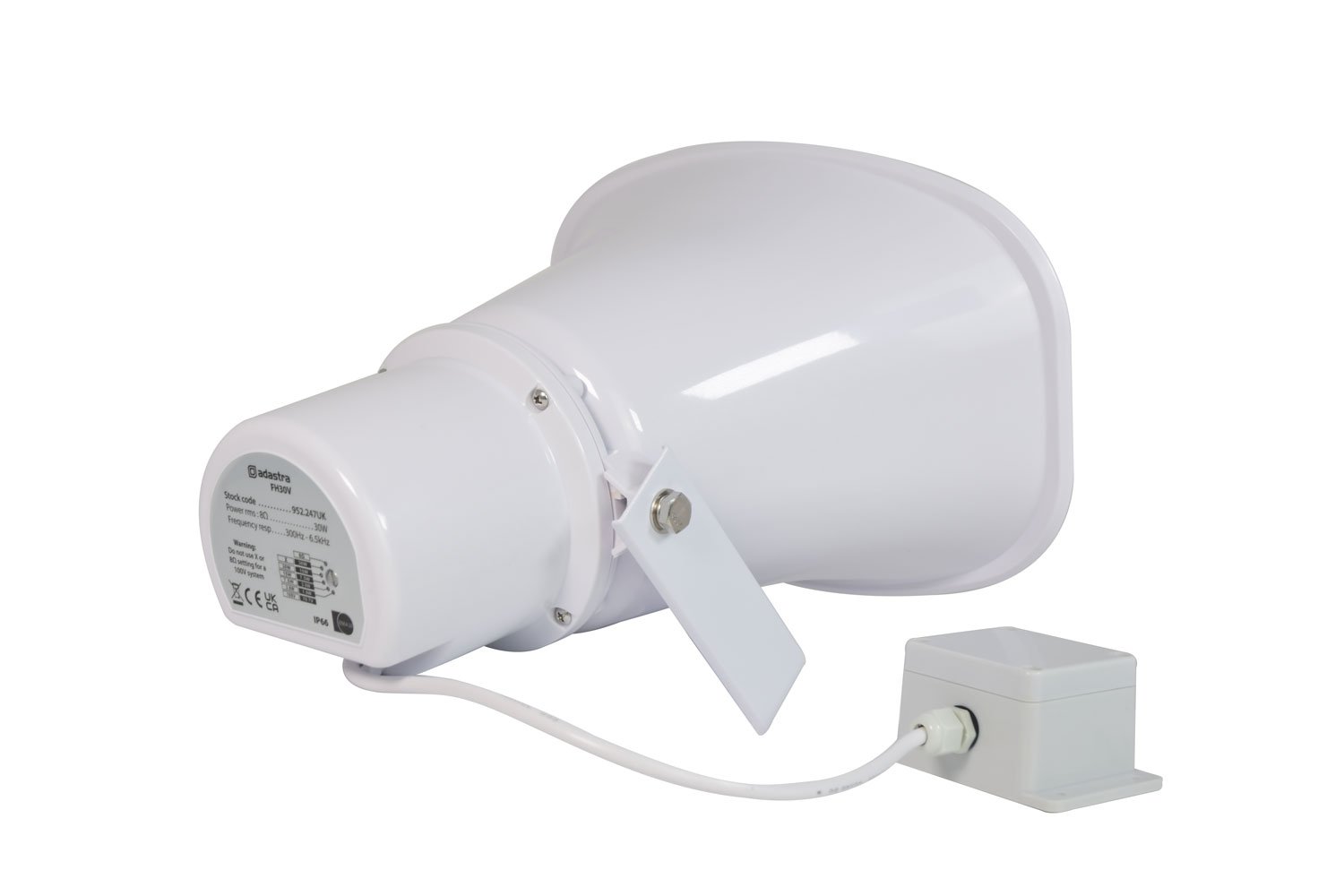

Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a powder-coated steel adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.
Construction 5VB fire-rated ABS housing, powder-coated steel bracket
IP rating IP66
Fire rating EN54-24 certified
Circuit protection Thermal fuse
Connection Hard-wired fire-resistant cable, ceramic terminal block
Power rms : 8 Ohms 30W
Tappings 3.8W, 7.5W, 15W, 30W (100V) & 8 Ohms
SPL @ 1W/1m 113dB
Frequency response 300Hz – 6.5kHz
Dimensions 300 x 282 x 203mm
Weight 2.26kg
