Description

100V ceiling speakers with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity, and is fitted with a spring loaded mechanism for the speaker unit to pull into position for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V. Certified to EN54 standard for compliance with fire detection and alarm systems requirements.
100V line tappings 0.75W, 1.5W, 3W, 6W
Fire rating EN54-24
SPL @ 1W/1m 92dB
Frame material Steel (powder coated)

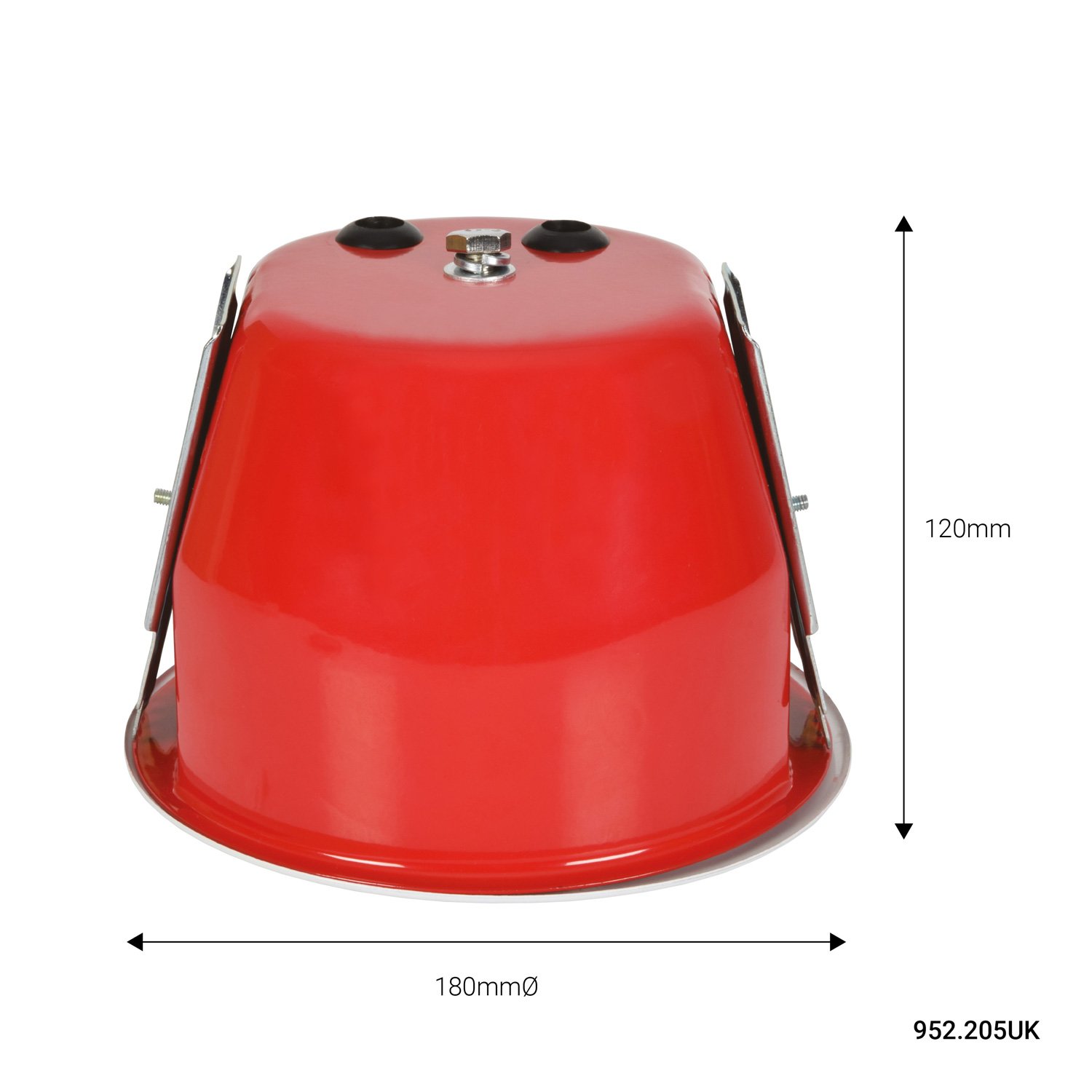

Dimensions 120 x 180mmØ
Weight 1.23kg
Frequency response 130Hz – 15kHz
Cutout 160mmØ
Driver 135mmØ (5.25″) reinforced paper cone
