Description

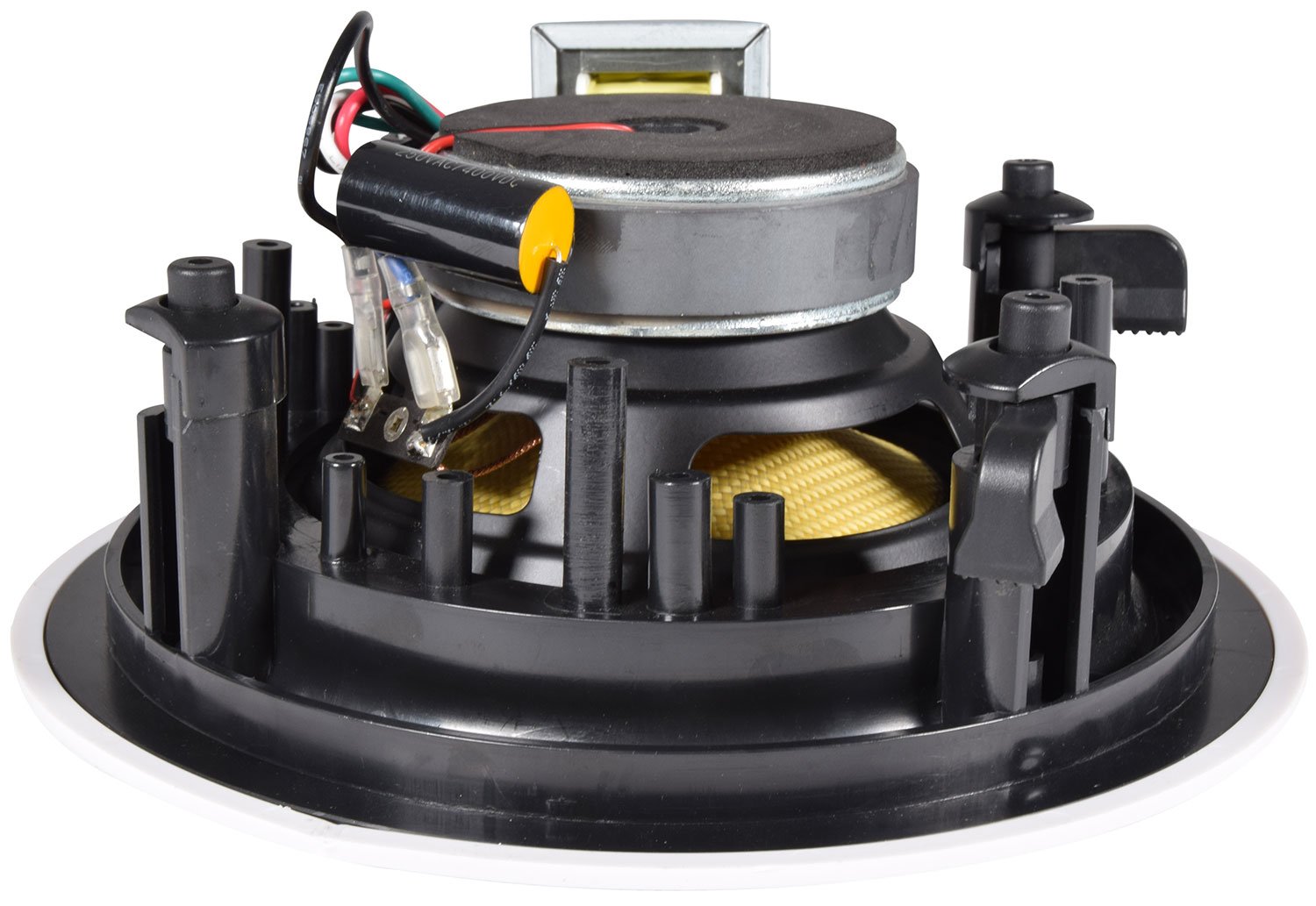

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV-T speaker is fitted with a 100V transformer with selectable volume tappings. High performance ceiling speakers to integrate with 100V voice and background music systems.
Construction ABS basket & powder coated steel grille
Dispersion angle 120°
HF driver 25mmØ (1″) ASV diaphragm
Impedance 500, 1k, 2k Ohms or 8 Ohms
Tappings 5W, 10W, 20W & 8 Ohms (40W)
Magnet weight 270g
SPL @ 1W/1m 89dB
Max. SPL 100dB
Frequency response 80Hz – 20kHz
Cutout 180mmØ
Mounting depth 80mm
Dimensions 80 x 206mmØ
