Description

Active sub cabinet with 8″ (20cm) reinforced driver and internal amplifier with active filter circuit. Inputs are on twin RCA or from a stereo amplifier on spring terminals (between amp and mid-top speakers). Cutoff frequency and Gain rotary controls can be adjusted as required. “Auto Off” function deactivates the amplifier when no incoming signal is detected to conserve energy.
Power supply 220-250Vac, 50/60Hz (Fig 8)

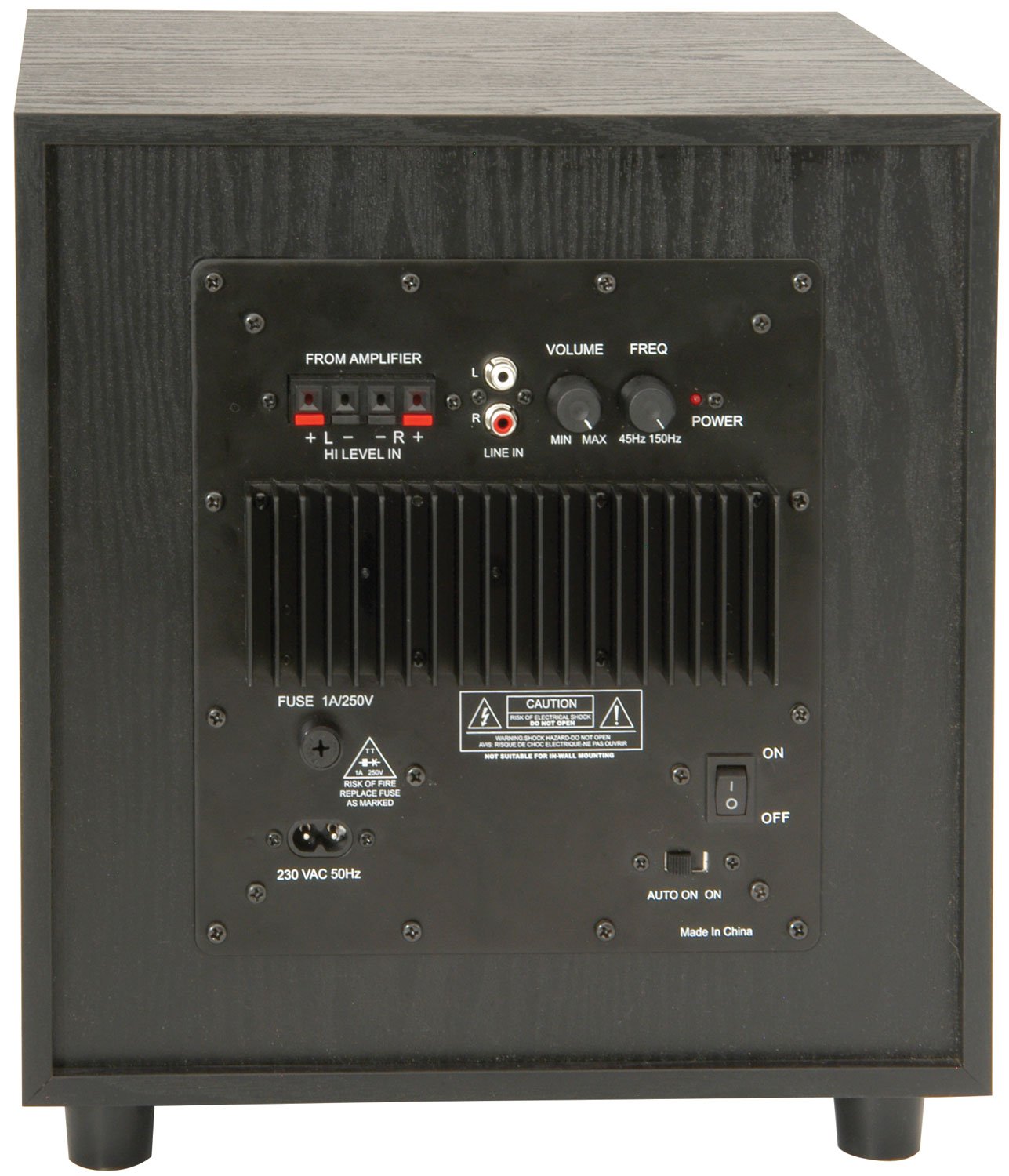

Connections Speaker level input terminals, RCA line level in
Frequency response 50 – 250Hz
Peak output 200W
Rated output power 100W
Driver 20cm (8″) reinforced cone
Dimensions 300 x 330 x 300mm
Weight 7.44kg
Cut-off frequency 45 – 150Hz
Speaker : impedance 4 Ohms
