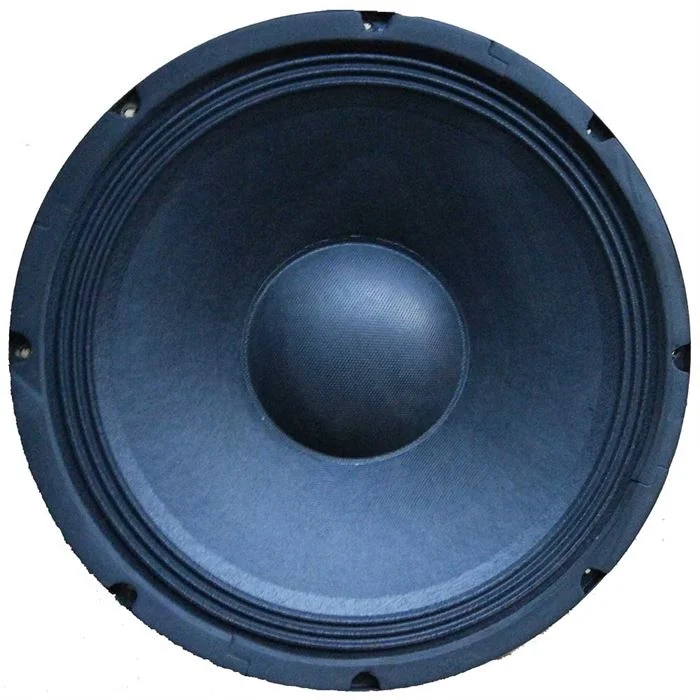

BishopSound 12″ Speaker 300w RMS Full Range Pressed Steel LF Driver – BSP12 8 ohm

Description

BishopSound 12″ Speaker 300w RMS Full Range Pressed Steel LF Driver – BSP12 8 ohm

• Description

  Our Classic 12″ PA speakers can be used in a range of wood and plastic, active or passive cabinets. Bishopsound woofers are high-quality PA speakers. They are made from professional-grade materials the Classic Series features pressed steel baskets, Kapton coils, ferrite magnets, and paper cones with rolled cloth edges and push terminals.

  The BishopSound Classic range of Pressed Steel drivers comes in 8″, 10″, 12″ and 15″

  These 12″ speakers are ideal for vocal PA, keyboards, club systems and monitors. BishopSound 12″ Speakers are critical in delivering clarity in those midrange frequencies.

• Technical Specifications

  RMS Power:	300w
  Program Power	600w
  Peak Power	1200w
  Voice Coil DC Resistance	_5.6 ½
  Usable Frequency Range:	-6dB 45 Hz – 4.5 kHz
  Nominal Impedance:	8 Ohm
  Nominal Voice Coil Diameter:	50 mm (2 inch)
  Magnet Weight:	40 Oz
  Flux Density	0.9 T Sensitivity@1W/1m: 94 dB
  Magnet	Ferrite
  Voice Coil Winding	Copper
  Voice Coil Former	Kapton
  Basket	Pressed Sheet Steel
  Resonance Frequency	_42 Hz
  Dust Cap Dome	Paper
  Mechanical Q Factor	_8.73
  Electrical Q Factor	_0.521
  Total Q Factor	_0.505
  Mechanical Moving Mass Mms:	87.2g
  Mechanical Compliance Cms:	193.7 um/N
  Equivalent Acoustic Volume .	_77.5 It
  Nominal Overall Diameter:	312mm
