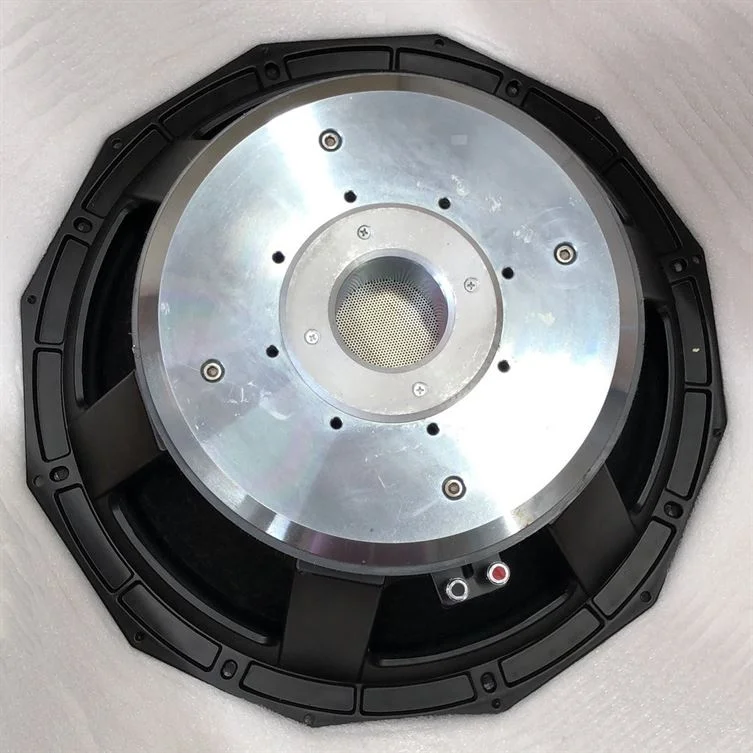

BishopSound 18″ 1500w RMS Subwoofer Bass Speaker Cast Alloy LF Driver With Push Terminals BWP18 – 4 ohm
Key Features
1500w AES – 3000w Program Power
5″ Voice Coil
200 Oz Magnet
Faston Stainless Steel Press Terminals
4 Ohm Impedance
Description
Powerful and proven in many different cabinet designs and classed by
professional speaker
cabinet designers. We load this driver in all our UK-built sub-woofers for power and reliability.
We use high-quality cast chassis. Made from professional-grade materials the Kapton coils, ferrite magnets, BRITISH paper cones with rolled cloth edge and push terminals.
Technical Specifications
Product Weight
22kg
Product Depth
52cm
Product Height
52cm
Product Width
26cm
RMS Power:
1500
Nominal Diameter:
470mm / 18″
Re:
5.4 ¬Ω
Qms:
9.743
Qts:
0.38-
Vas:
163.1 litres
Mms:
248 g
Sd:
1244 cm2
BL:
30.3 T/m
Xmax:
11 mm
Bolt Hole:
7mm
Voice Coil Diameter:
125mm / 5.0″
Mounting Hole Diameter:
422mm
Sensitivity (1w / 1m):
100 dB
Frequency Range: 3
35 Hz – 2 kHz
Resonance:
32 Hz
Voice Coil Winding Depth:
32mm
Voice Coil Material:
Copper
Magnet Material:
Ceramic
Fs:
32 Hz
