Description

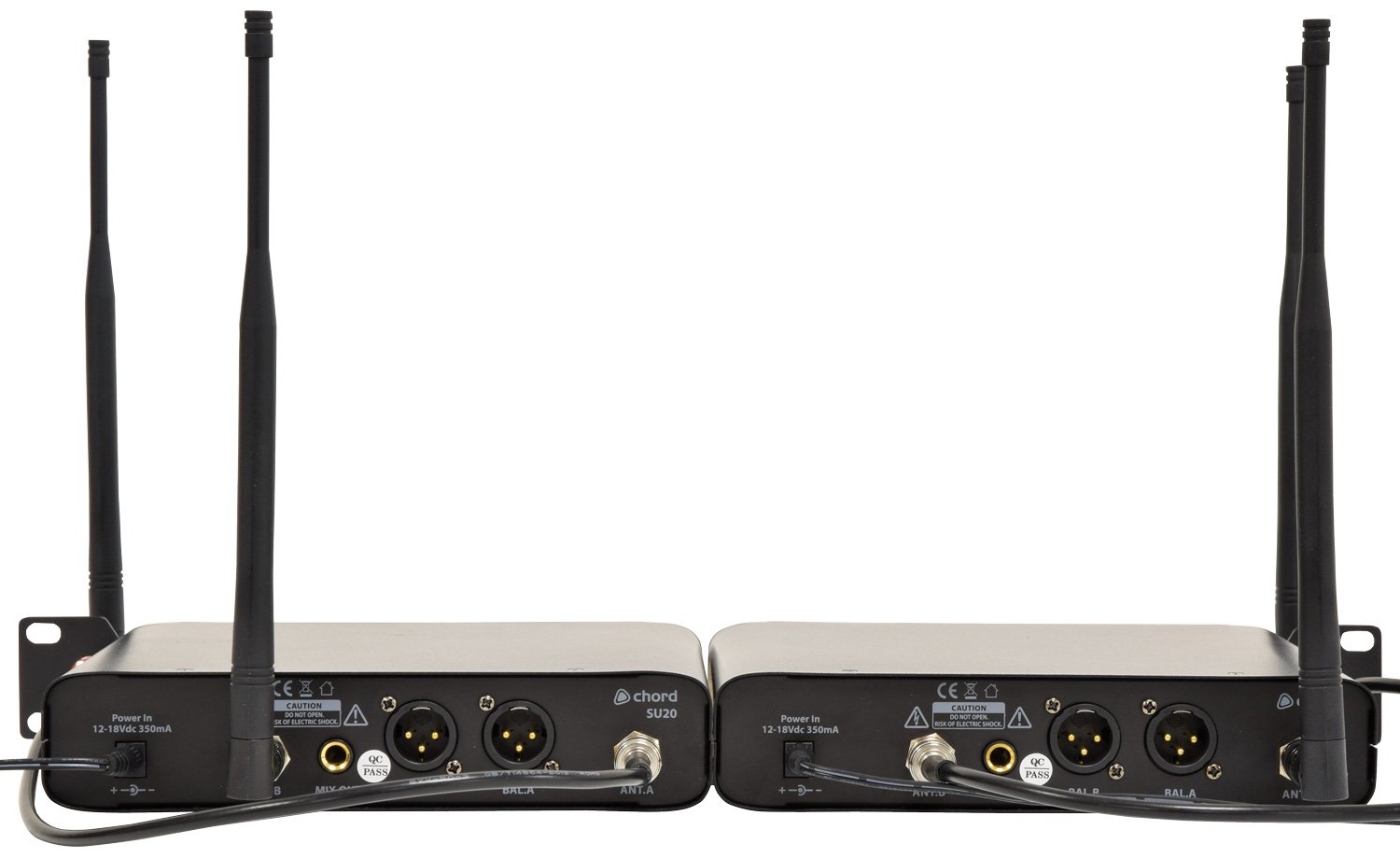

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19″ rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.
Power supply 14Vdc 350mA (adaptor supplied)
Antenna connection BNC
Batteries 4 x AA (2 per transmitter) included
Range 60m
Microphone : polar pattern Cardioid (handheld, neckband or lavalier)
Output connections 2 x balanced XLR, 1 x unbalanced 6.3mm jack
Output impedance 2.2k Ohms
Output level 400mV (balanced), 200mV (unbalanced)
Frequency response 50Hz – 18kHz (±3dB)
S/N ratio >80dB
THD <0.5% @ 1kHz Dimensions : receiver 203 x 187 x 42mm Weight : receiver 845g Dimensions : handheld transmitter 250 x 47mmØ Weight : handheld transmitter 231g (no battery) Dimensions : beltpack transmitter N/A Weight : beltpack transmitter N/A Carrier frequencies 863.42MHz (Red) + 864.3MHz (Green)
