Description

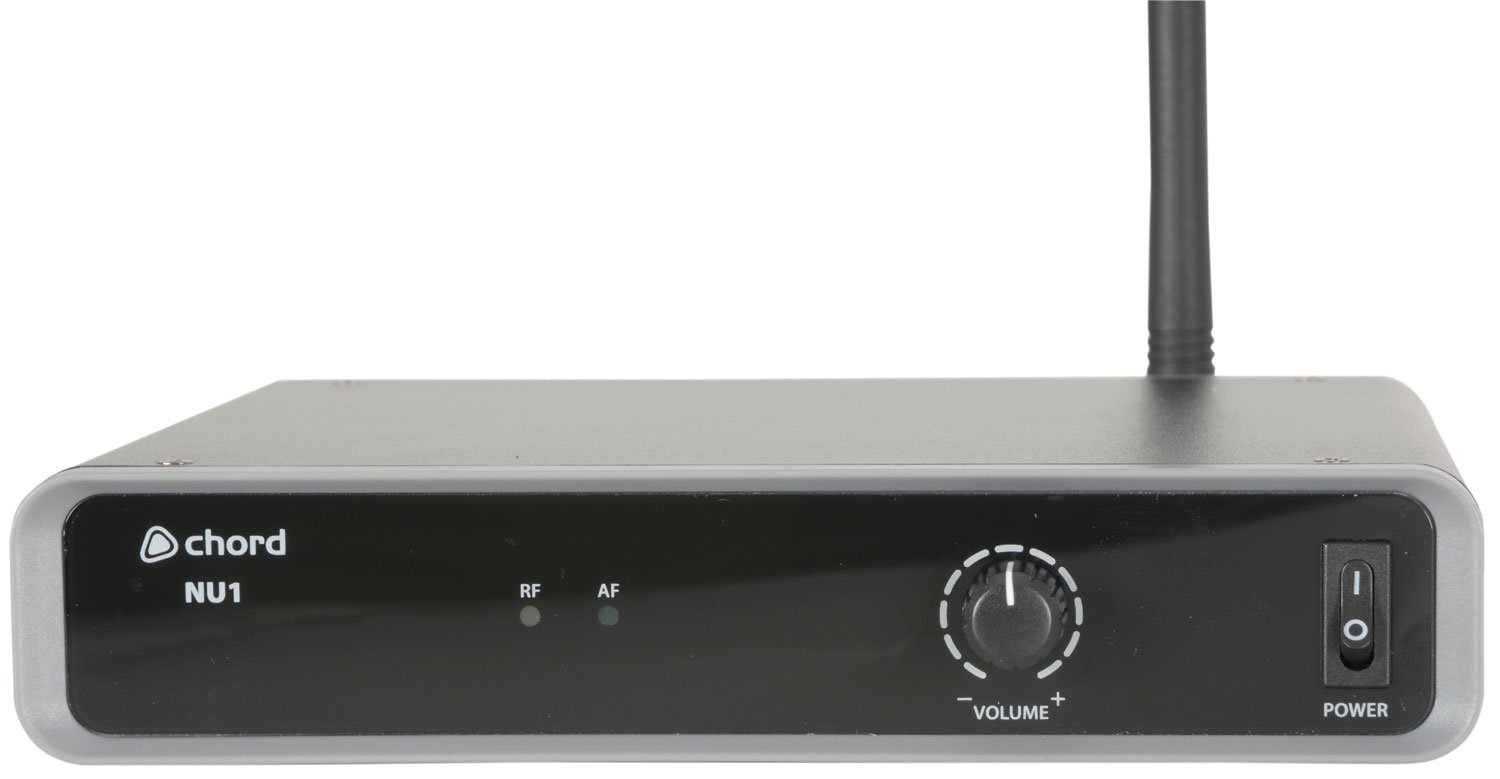

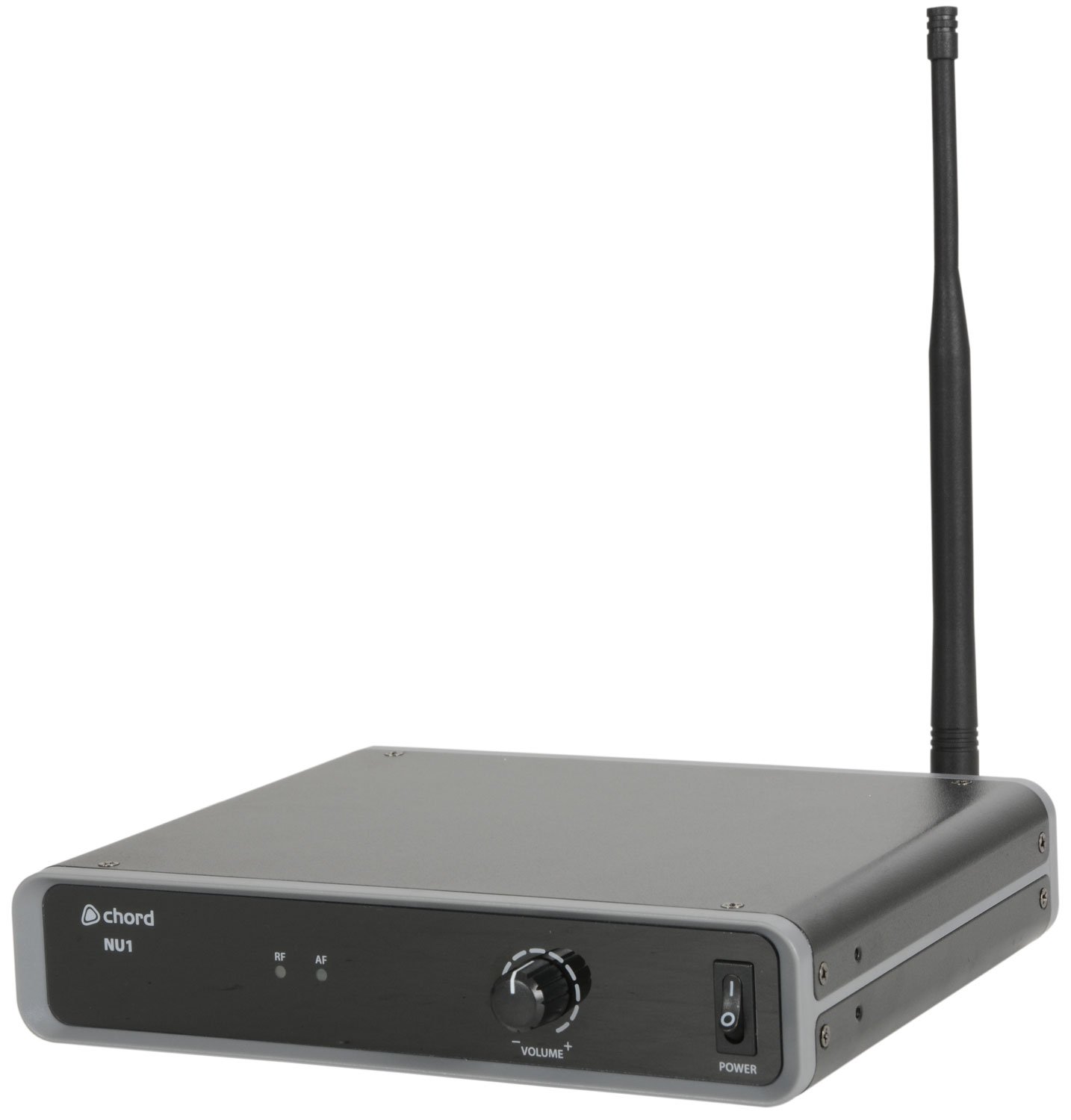

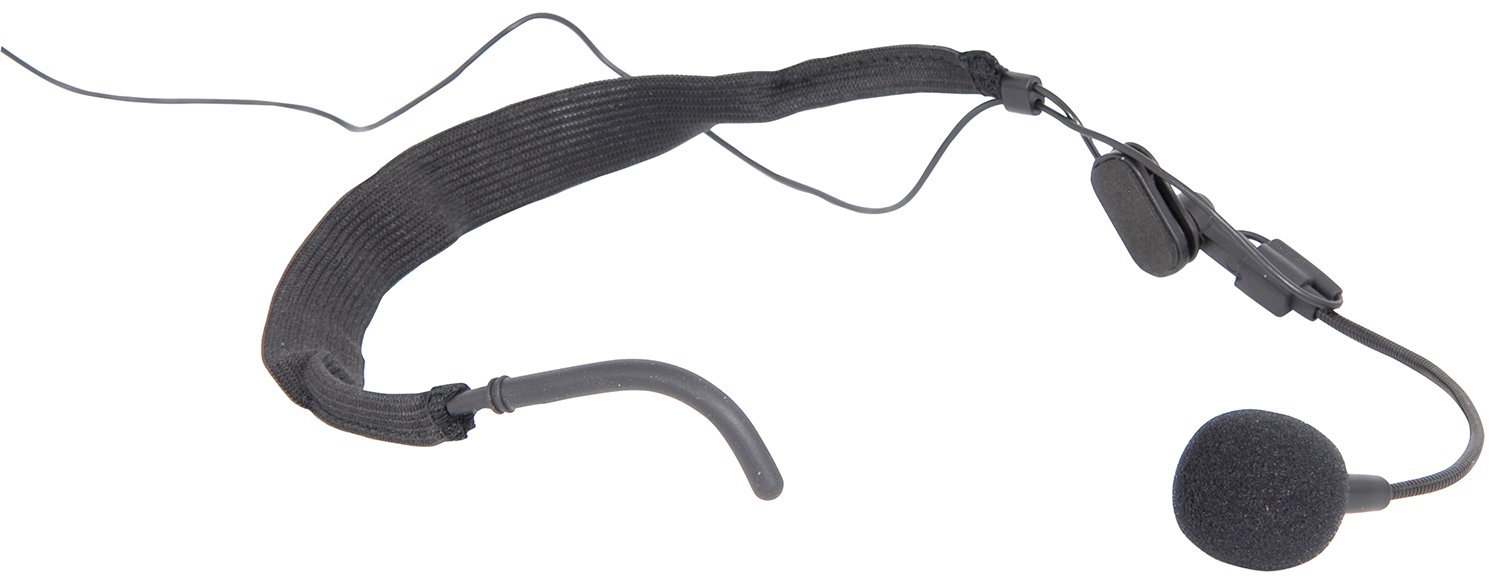

Wireless microphone system with fixed UHF beltpack transmitter and half rack-width receiver. Supplied with a choice of neckband or lavalier microphones. The receiver unit is compatible with standard 19″ racks using the included rack ears and front mounting antenna accessories.
Power supply 12-18Vdc, 350mA (mains adaptor included)
Batteries 2 x AA (for transmitter – included)
Range 60m
Signal to noise ratio >105dB
THD <0.5% @ 1kHz Frequency response 50Hz-18KHz ±1 dB Image rejection >85dB
Output impedance 2.2k Ohms
Output level 400mV (balanced), 200mV (unbalanced)
Dimensions : receiver 44 x 198 x 190mm
Weight : receiver 710g
Dimensions : transmitter 205 x 68 x 25mm
Weight : transmitter 76g (no battery)
Carrier frequency 864.1MHz
