Description

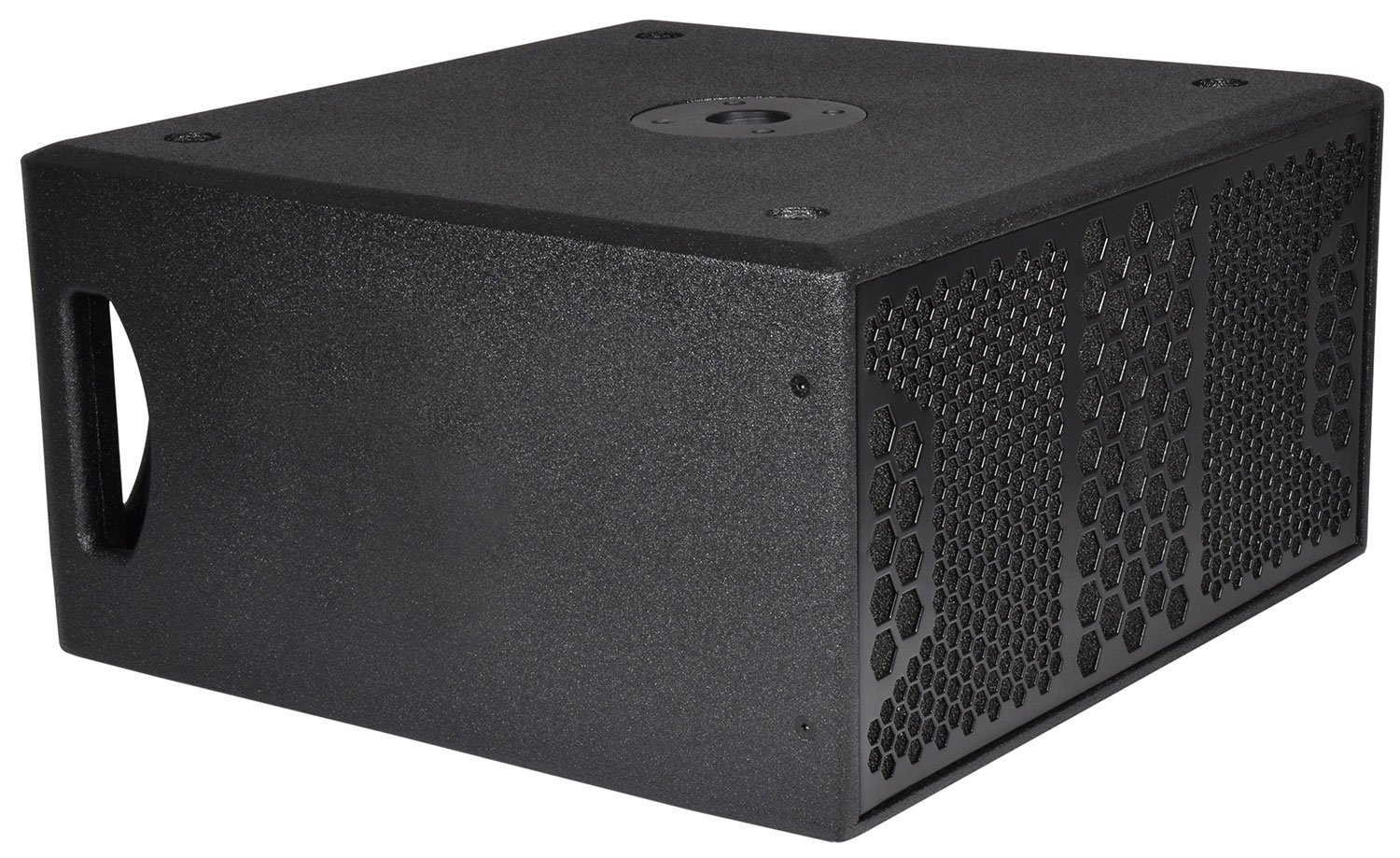

Compact slim profile active subwoofer cabinet with internal amplifier for mobile and fixed sound reinforcement. Line level input is connected via balanced XLR or 6.3mm jack with an XLR line output for cascading the signal onto further active cabinets. Preset DSP control accurately filters low frequencies to the class-D amplifier section to drive the twin 8″ woofers up to 400Wrms output. A level control adjusts the output and the gain can be increased by engaging the Boost function. A phase switch can be used to correct time-alignment or out-of-phase situations. This sub unit can be postitioned flat to accept a 35mm pole to mount a full-range speaker or upright for a smaller footprint. The compact dimensions also make this a perfect option for hiding behind or underneath furnishsings in an installation.
Power supply 230Vac, 50Hz (IEC)
Construction 15mm MDF with durable polyurea finish
Hardware Integral carry handle & 35mm pole mount socket
Amplifier : construction Class-D

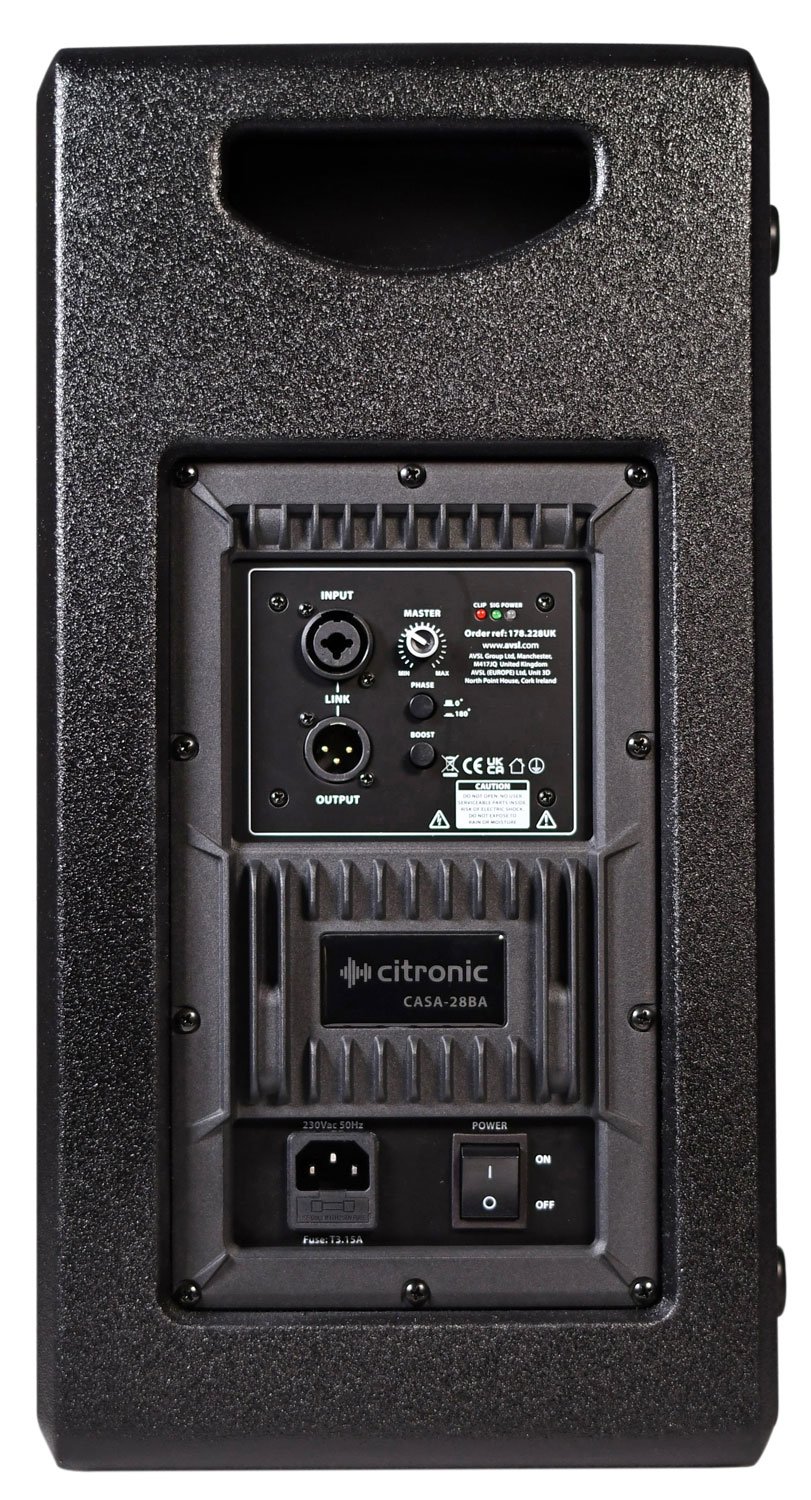

Line input Balanced XLR / 6.3mm jack
Line output Balanced XLR
Controls Master level, Phase switch, Boost switch
Drivers 2 x 200mmØ (8″) woofers
Frequency response 55 – 150Hz
Output power rms 400W
Output power max. 700W
Peak output 1400W
SPL max. 122dB
Dimensions 475 x 450 x 250mm
Weight 15.7kg
