Description

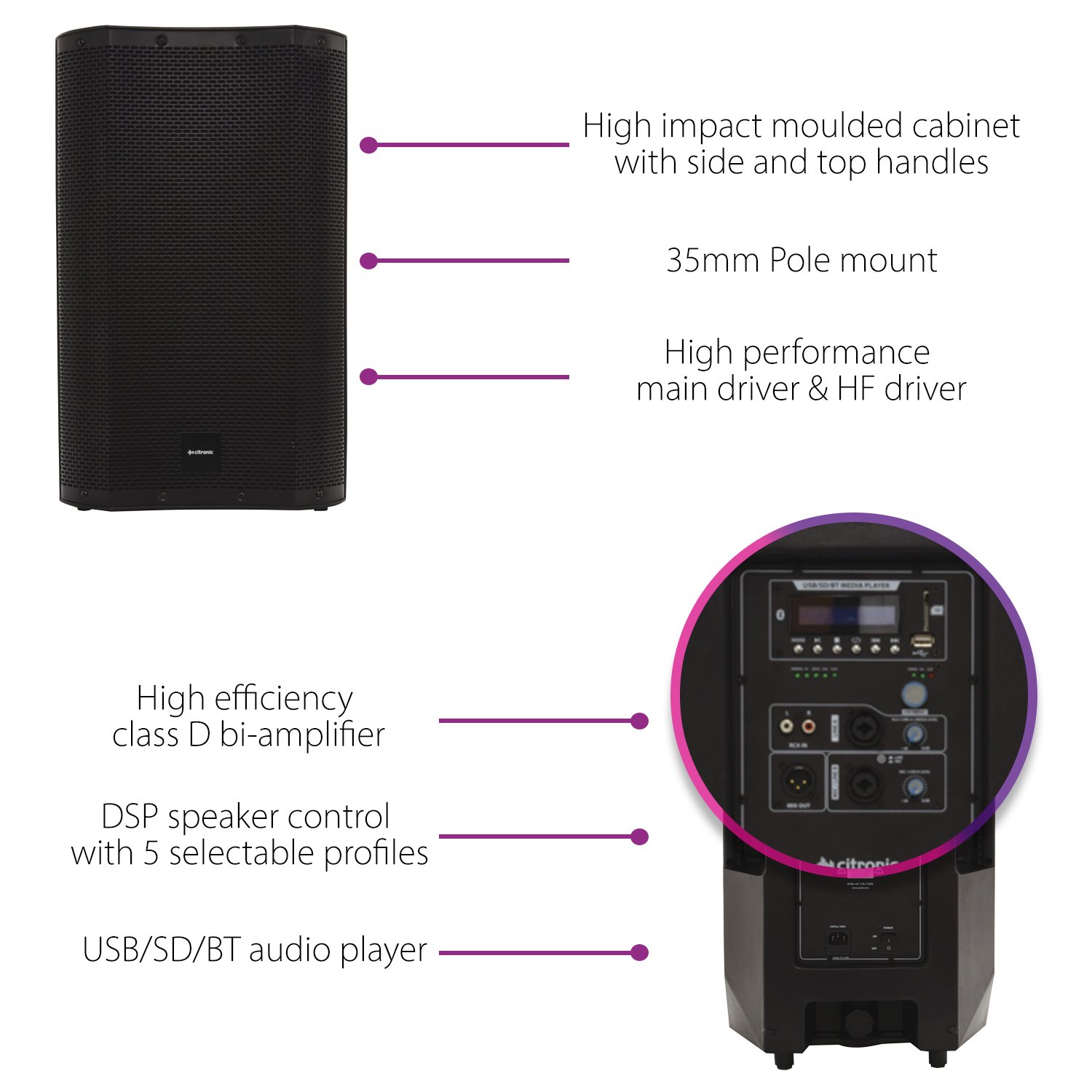

Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.
Power supply 230Vac, 50Hz (IEC)
Audio source USB/SD player + Bluetooth receiver
Line output XLR
DSP settings Normal, DJ. Voice, Live, Flat
Main driver 250mmØ (10″)
HF driver 25mmØ (1″) Ti compression driver
Voice coil 50mmØ (2″)
Output power : rms 220W
Output power : max. 440W
Sensitivity 95dB
Inputs XLR/jack mic/line, 6.3mm jack mic/instrument, L+R RCA line
Dimensions 500 x 310 x 260mm
Weight 10.27kg
Output power peak 880W
SPL max. 121.0dB
Frequency response 55Hz – 19kHz
