Description

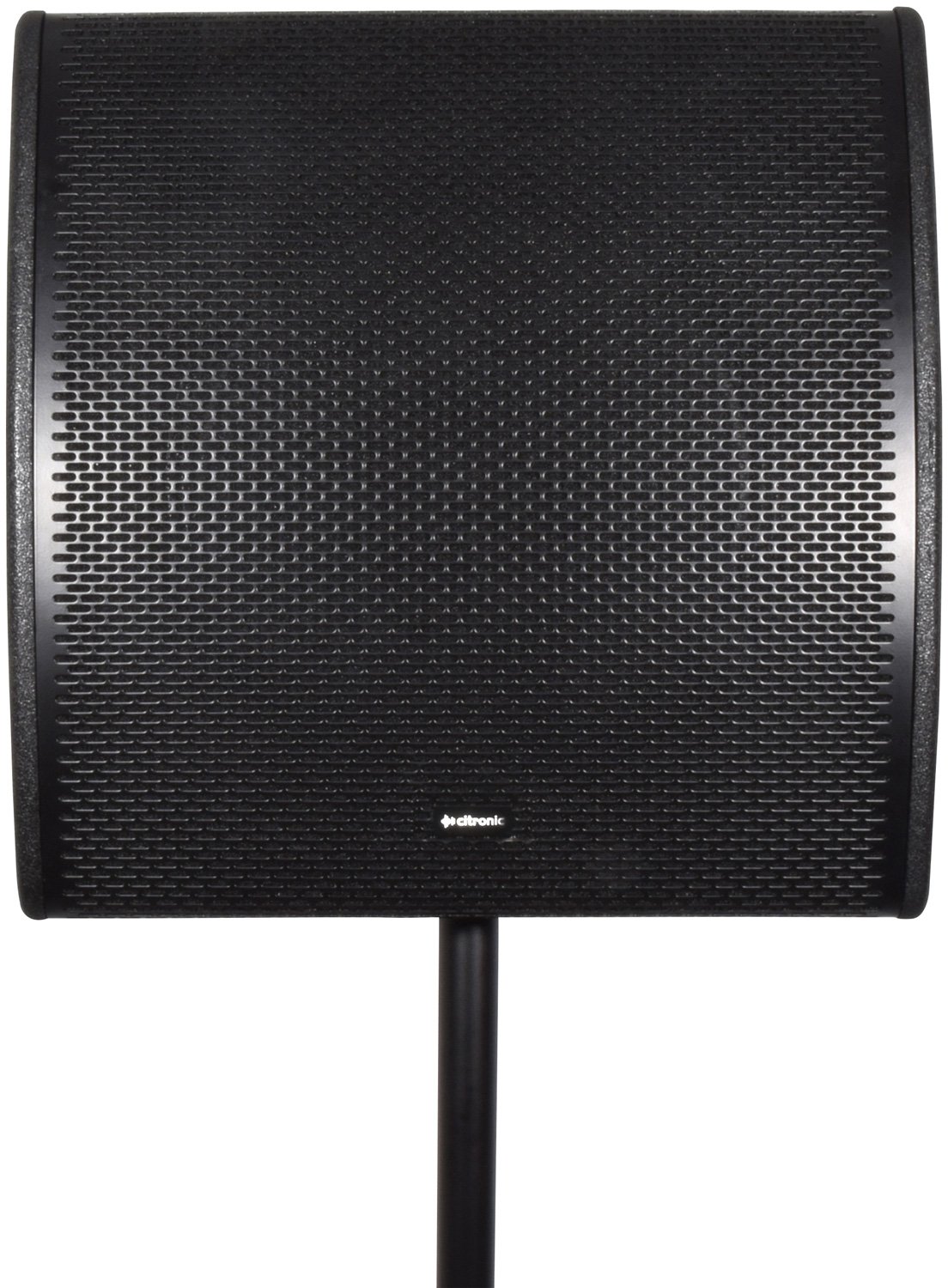

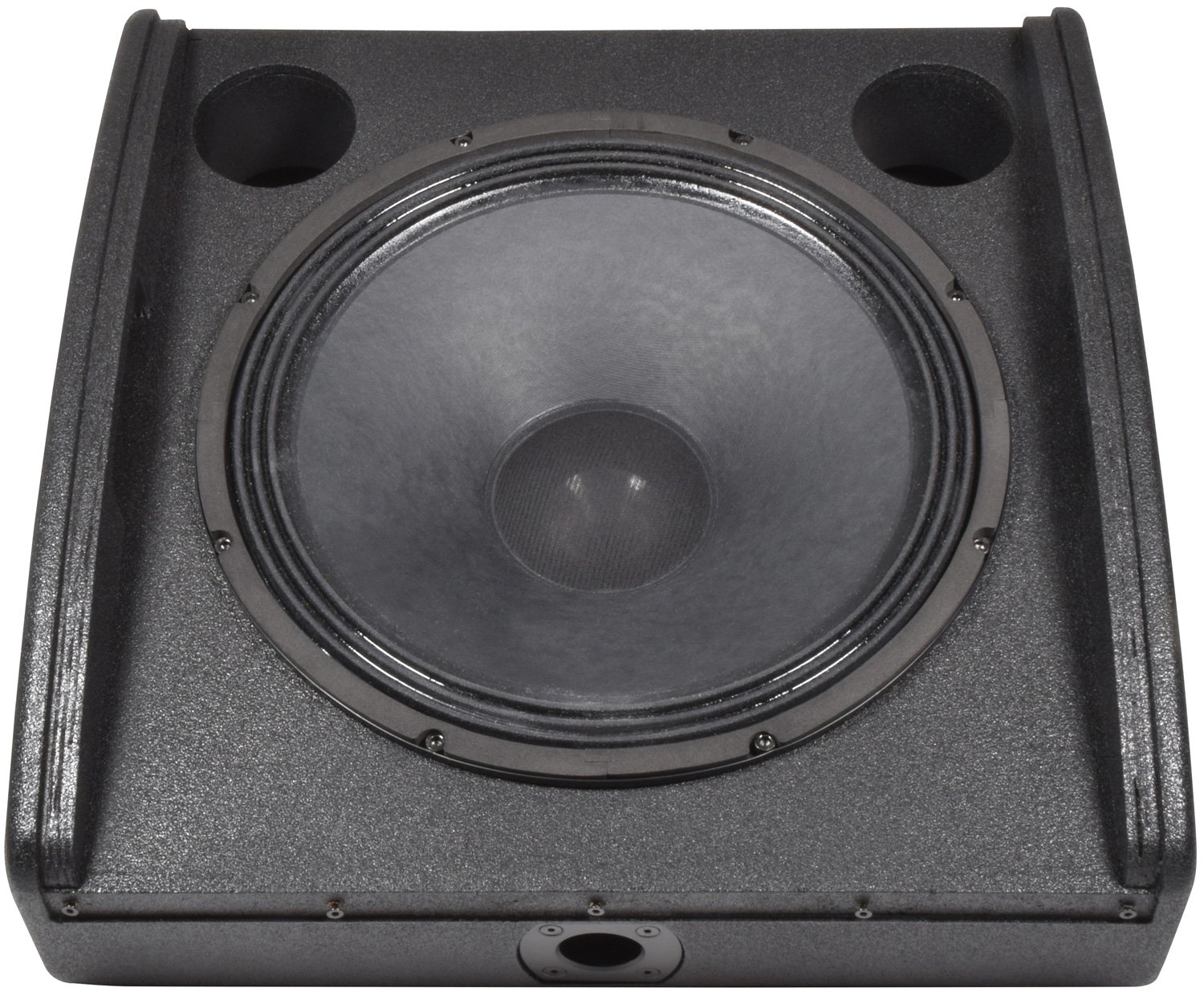

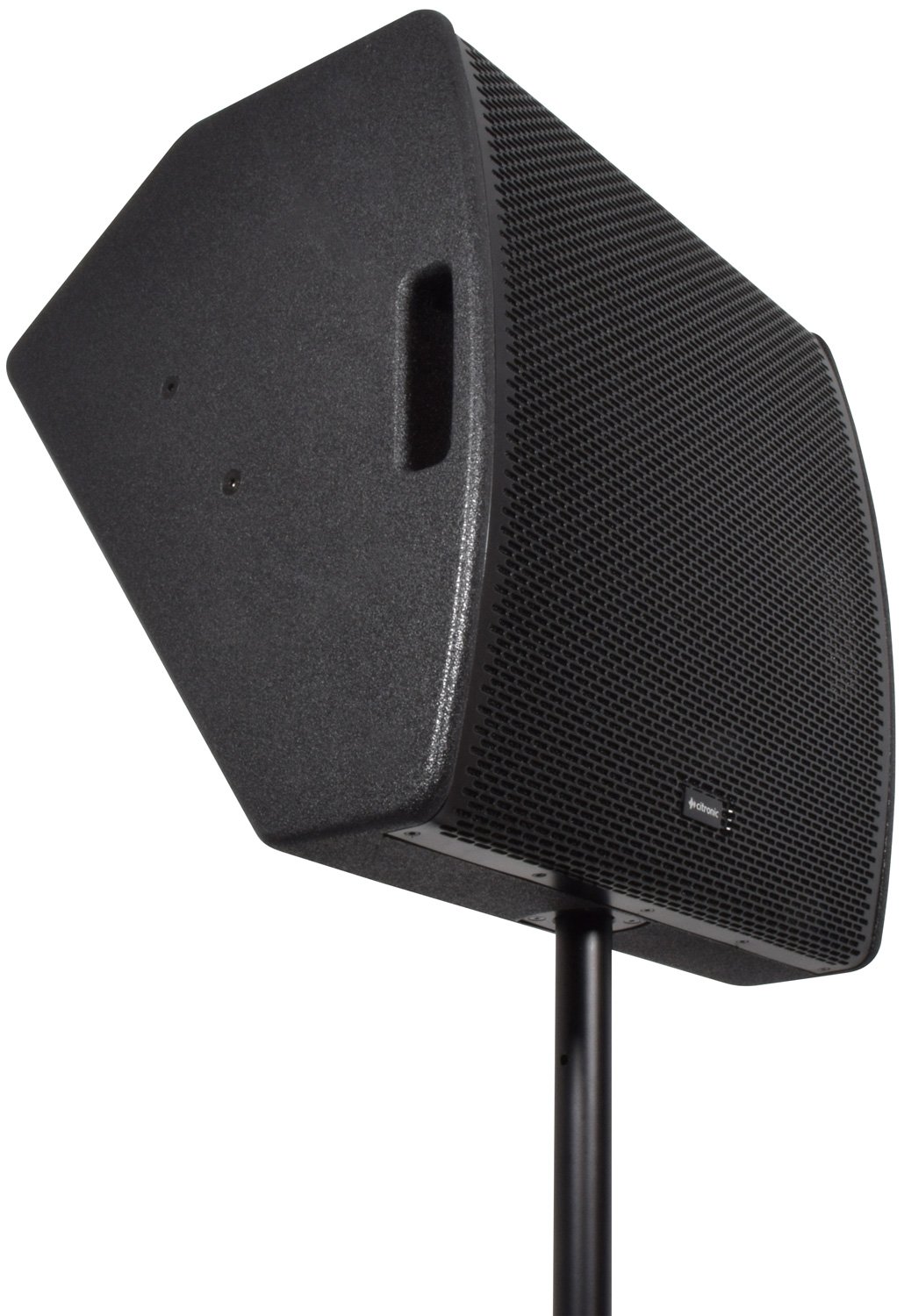

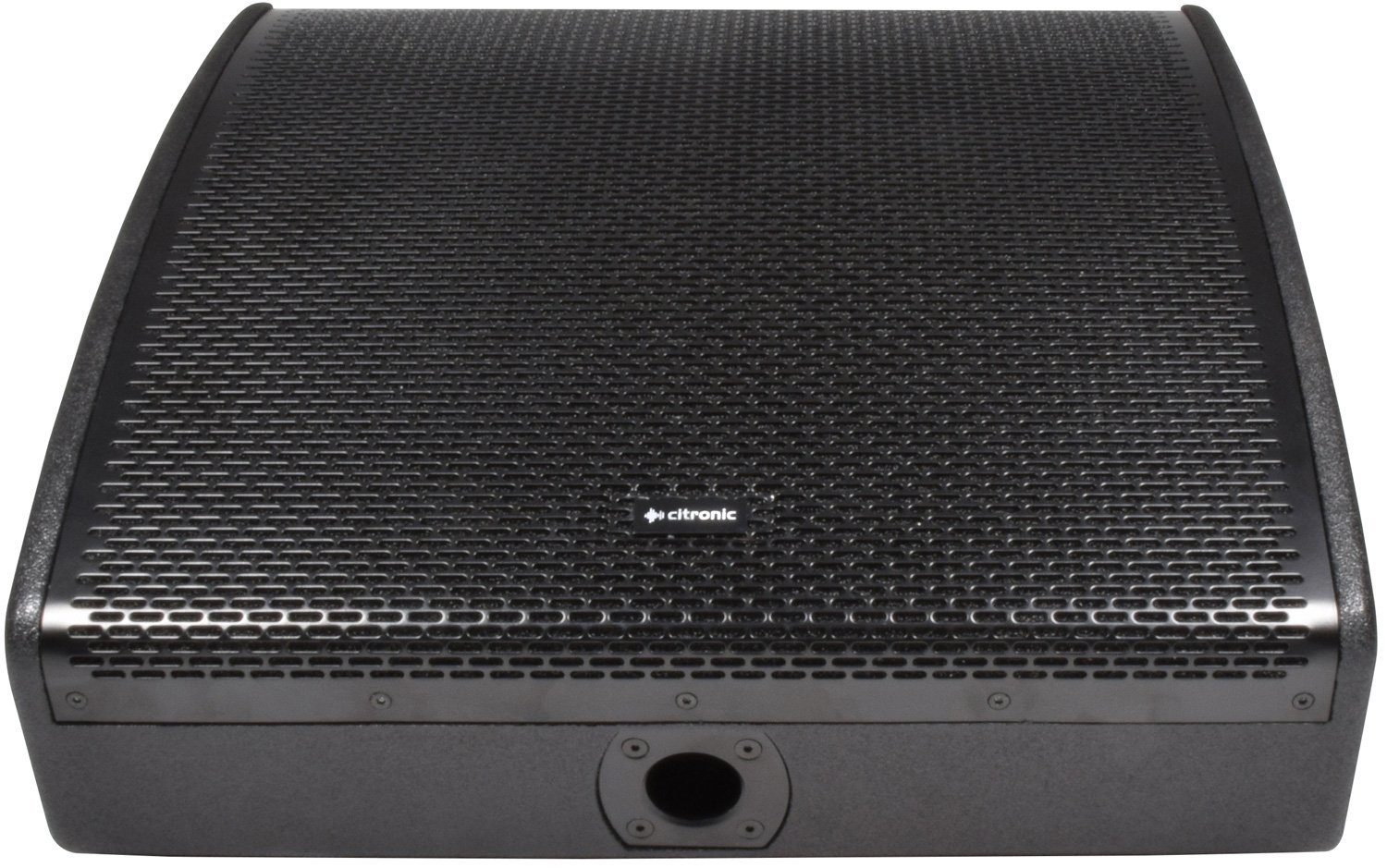

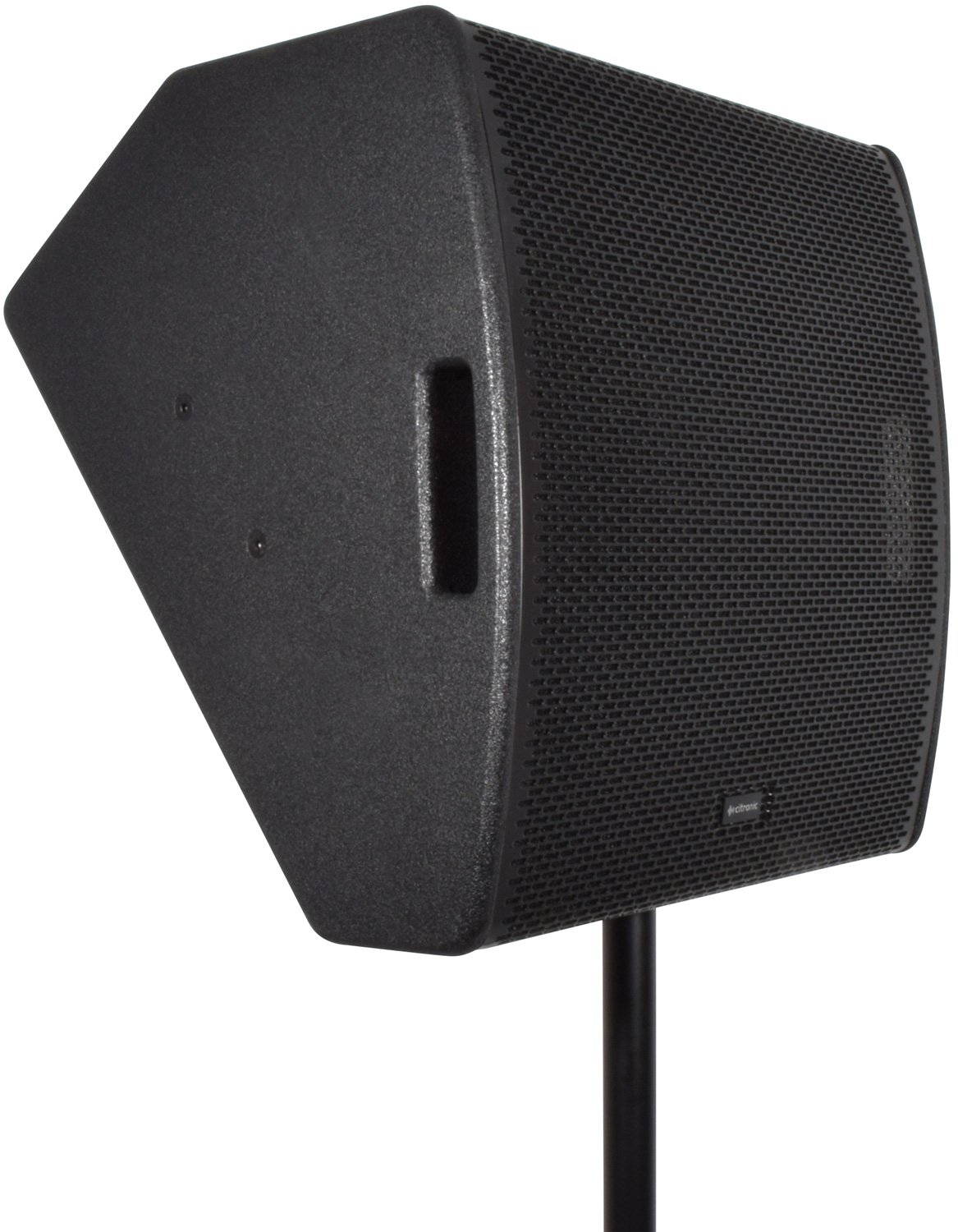

Active wedge speaker in a durable, texture coated wooden cabinet with minimal footprint. The main driver delivers punchy low frequencies with the help of 2 bass ports and a concentric titanium tweeter is mounted within the main driver for perfectly aligned, sparkling high frequencies. An arched powder-coated steel grille provides heavy duty protection from the rigours of stage performances and forms 2 side handle holes for easy portability. Powered from its inbuilt class-D amplifier, each wedge has enough output to deliver clear sound quality in high SPL situations and is even serviceable independently as a compact PA cabinet, thanks to the 35mm pole mount socket and M8 flying points. A DSP section provides 5 different EQ profiles to accurately match the program material and sound environment. In addition to a mic/lin input and separate line input, the CM-series wedges also have a Bluetooth® receiver, which makes it ideal as a musician’s practice amplifier. Surprisingly powerful in such a compact enclosure, this speaker offers high quality sound output with flexible options for stage foldback, keyboard and e-drum amplification.
Weight 9.87kg
HF driver 44mmØ (1.75″) Ti compression driver
Amplifier : construction Class-D
Impedance 4 Ohms
DSP settings Normal, DJ. Voice, Live, Flat

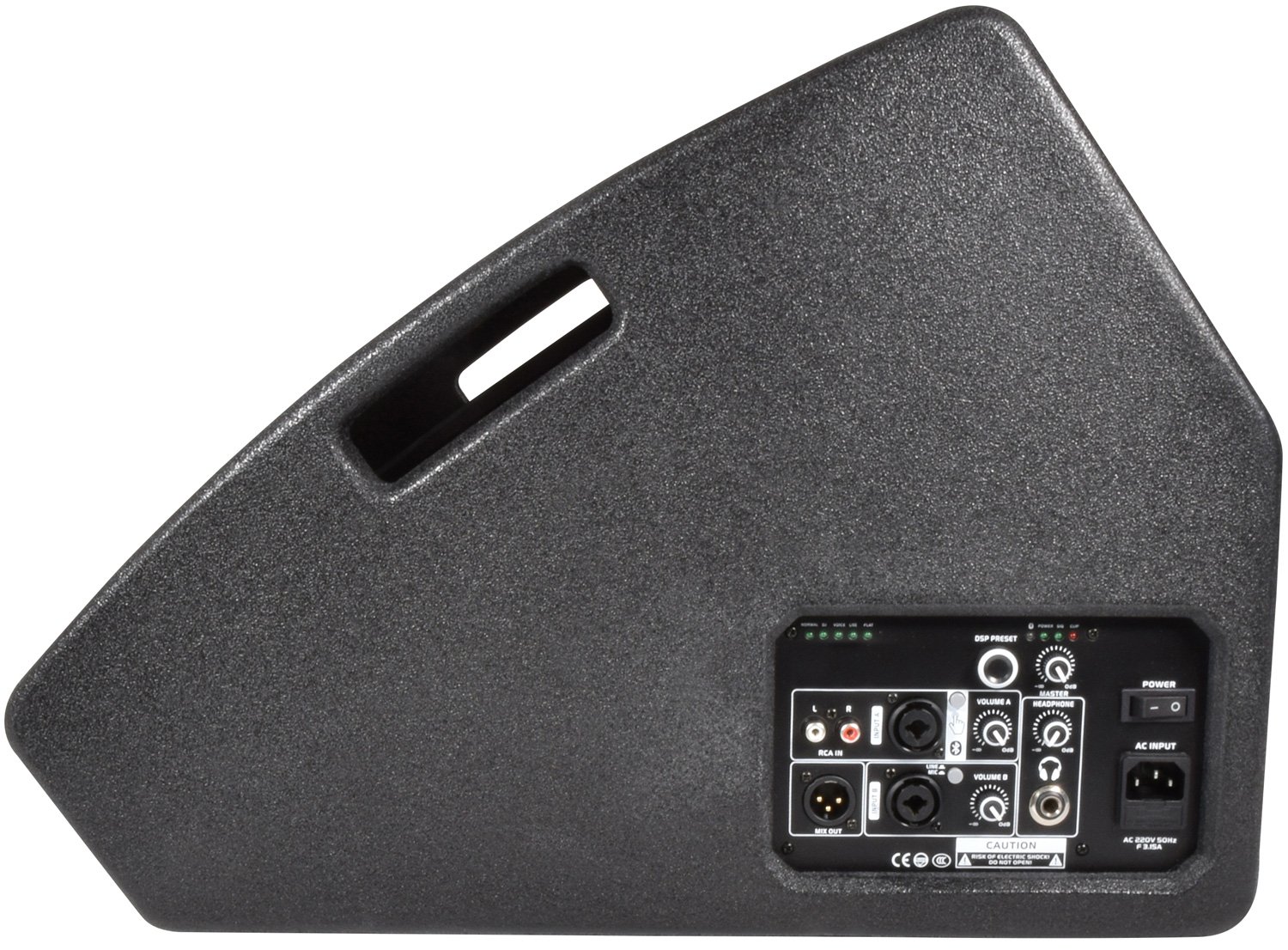

Inputs Mic/Line (XLR/jack), Line (XLR/jack/RCA), Bluetooth®
Outputs Headphones (6.35mm jack), Mix out (XLRM)
Main driver 380mmØ (15″) with concentric tweeter
Voice coil 75mmØ (2.5″)
Magnet weight 1.50kg (53oz)
Output power rms 350Wrms
Output power peak 700W
Frequency response 45Hz – 20kHz
Sensitivity 97dB
Dimensions 528 x 504 x 382mm
Weight 15.00kg
