Description

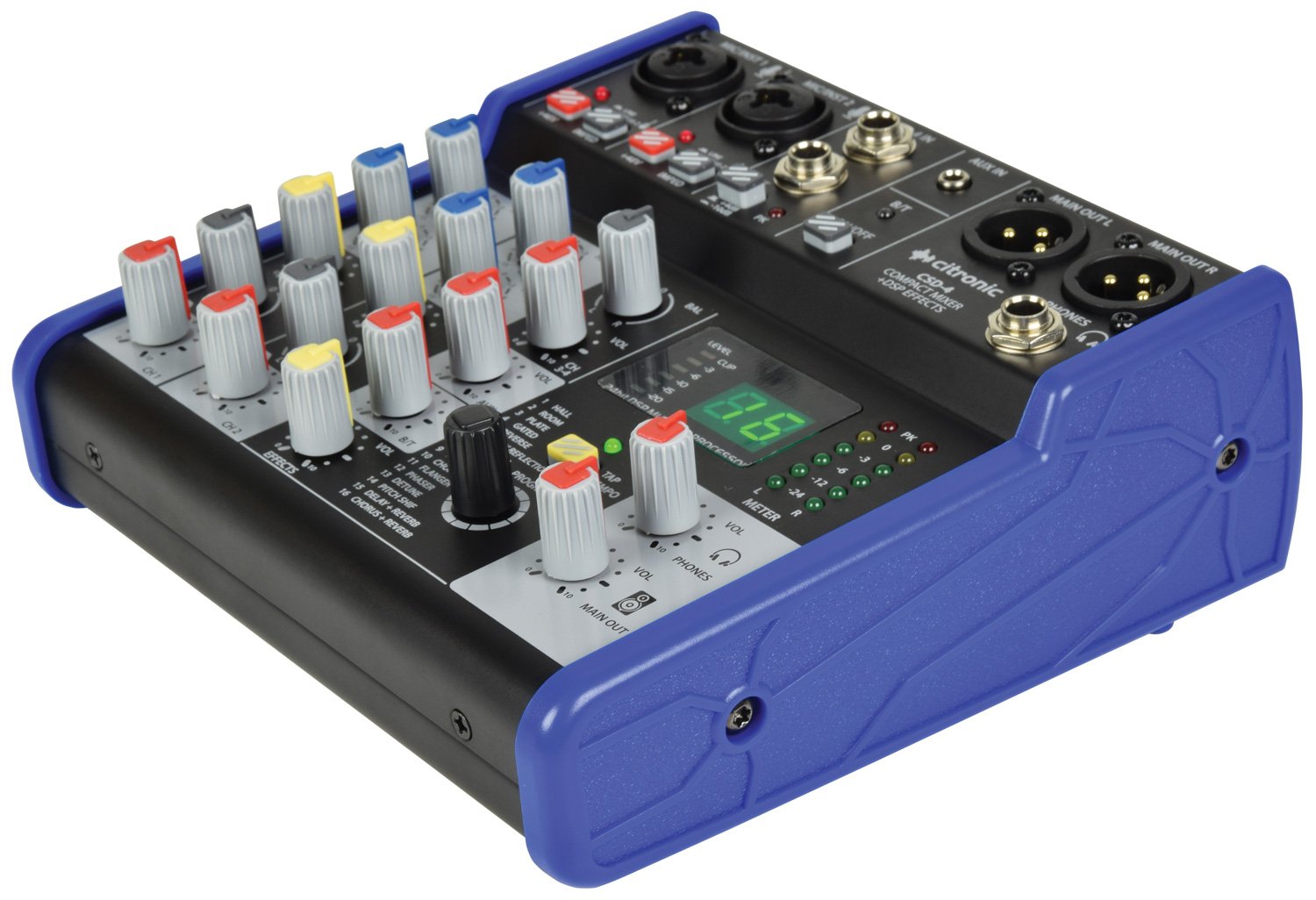

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
Power supply 5Vdc 1A (adaptor included)
Power consumption max. 5W
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Phantom power +48V individually switchable (XLR inputs only)
Input impedance : mic 2k Ohms
Input impedance : instrument 1M Ohms
Input impedance : line 20k Ohms
Audio source Bluetooth receiver
Bluetooth version 2.1 + EDR
Frequency response 20Hz – 20kHz (±0.5B)
THD +N <0.03% @ 1kHz Dynamic range 102dB Crosstalk : stereo 92dB Output Left + Right balanced XLR Output impedance 120 Ohms Max. output level 3Vrms Effects 16 program DSP (24-bit sigma-delta, 40kHz) Inputs 2 x combo XLR/jack + stereo jack Dimensions 171 x 166 x 66mm Weight 0.92kg
