Description

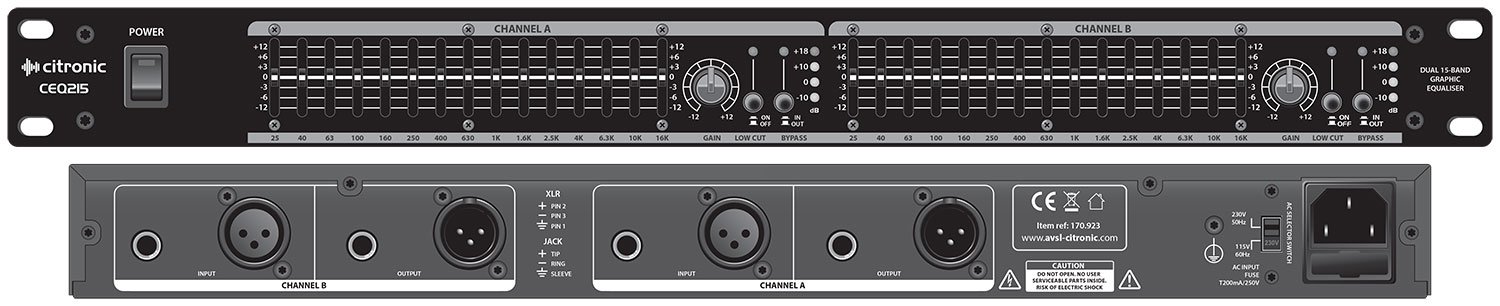

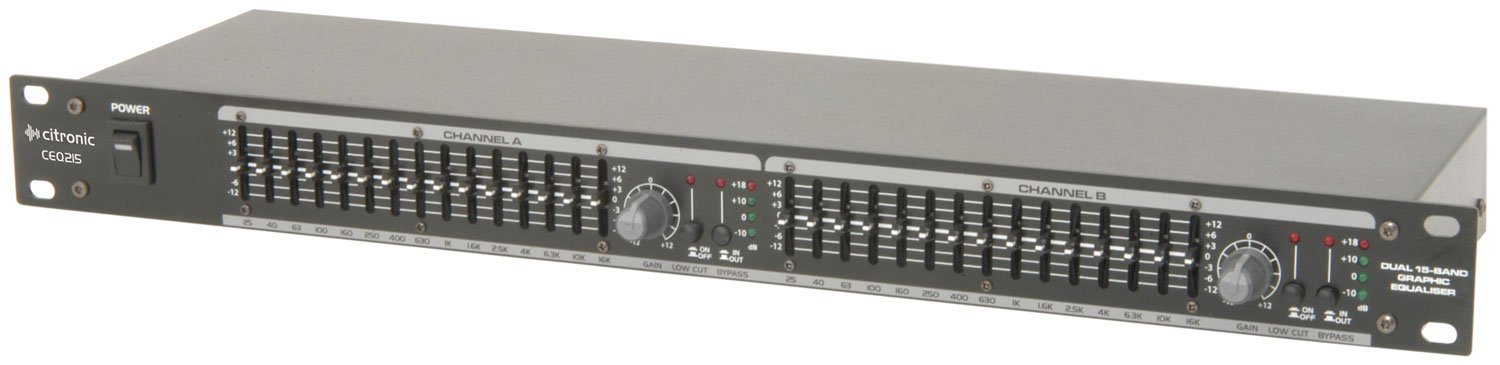

The CEQ215 is a 19″ rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.
Power supply 115/230Vac, 50/60Hz (IEC)
Frequency response 20Hz-20kHz
Input impedance : balanced 40k Ohms
Input impedance : unbalanced 20k Ohms
Output impedance : bal/unbal 330 Ohms
Channel separation >50dB
Signal to noise ratio >102dB
THD 0.005%
Dimensions 482 x 44 x 138mm
Weight 2.0kg
