Description

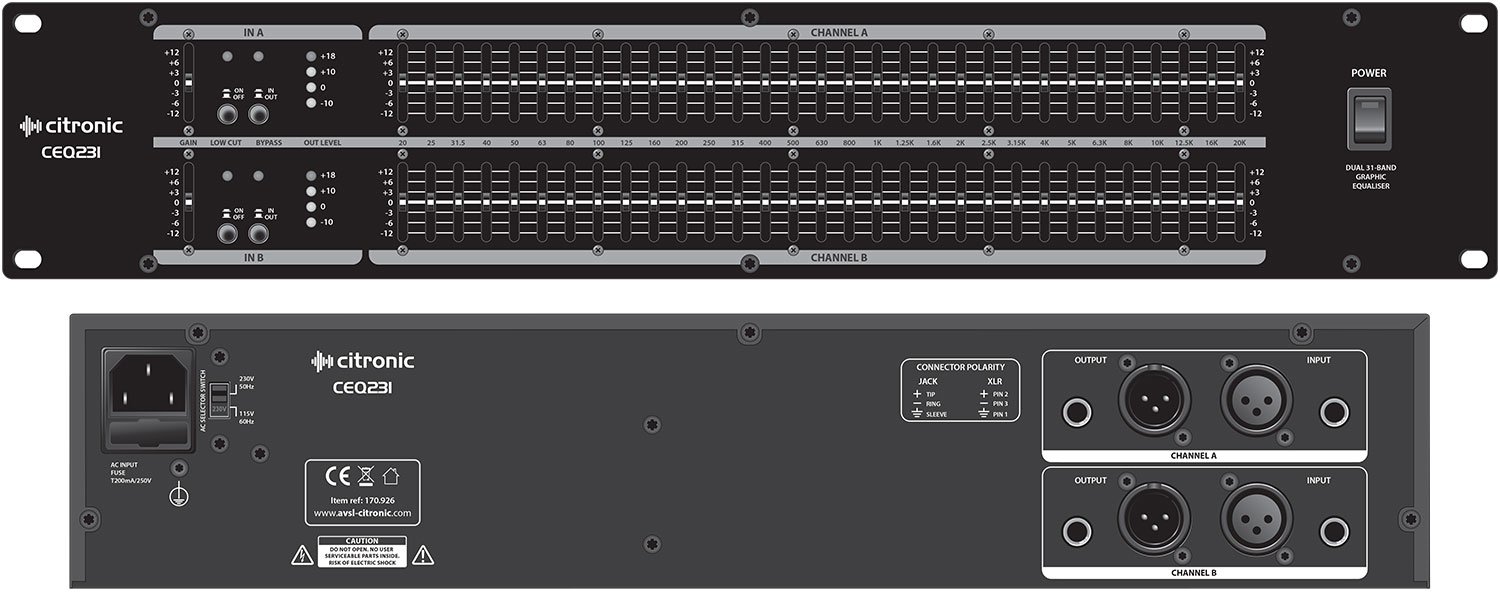

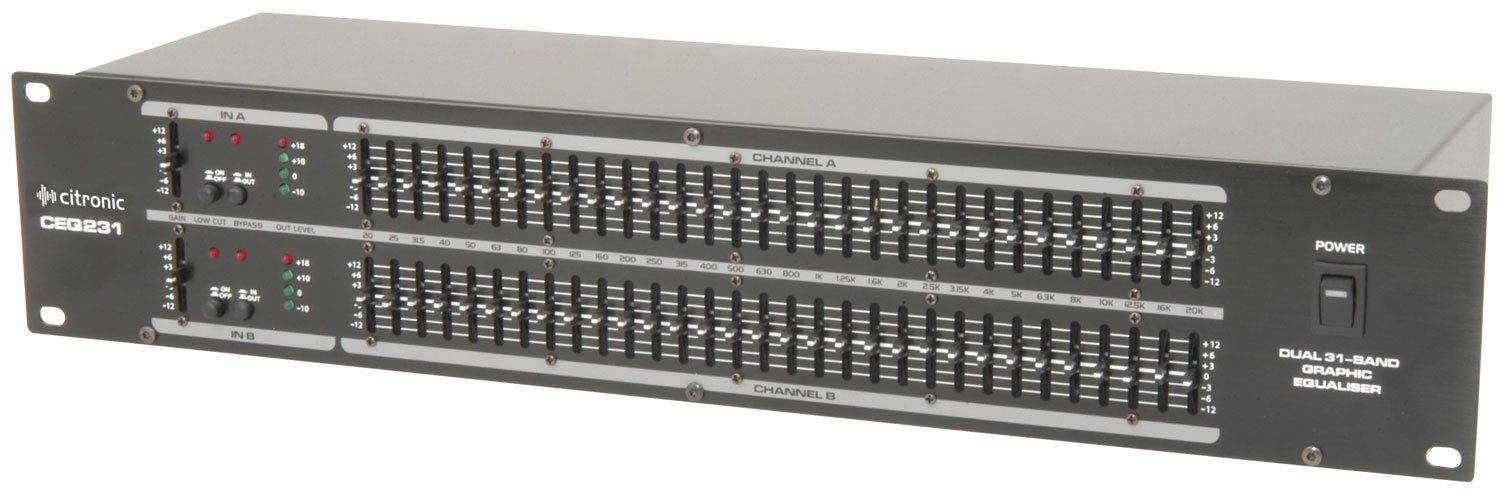

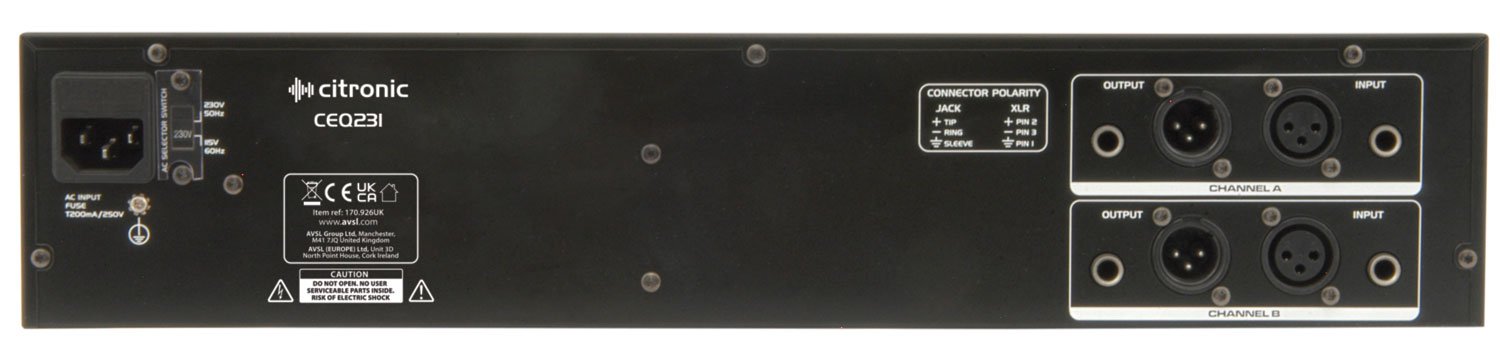

The CEQ231 is a 19″ 2U rack mounted dual 31-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 20Hz to 20kHz for ultimate EQ control.
Power supply 115/230Vac, 50/60Hz (IEC)
Frequency response 20Hz-20kHz
Input impedance : balanced 40k ohms
Input impedance : unbalanced 20k ohms
Output impedance : bal/unbal 330 ohms
Channel separation >50dB
Signal to noise ratio >102dB
THD 0.005%
Dimensions 482 x 88 x 139mm
Weight 3.3kg
