Description

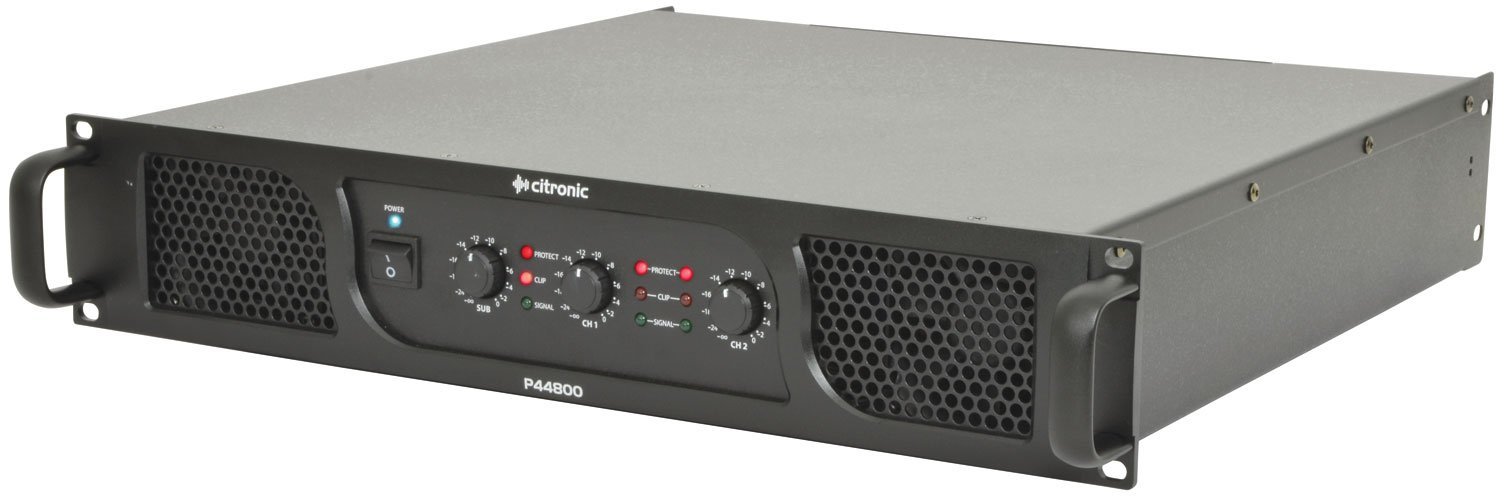

2.1 power amplifiers with 2 channels for mid-top cabinets and a single high power sub output with integral active crossover. Designed as a cost effective and efficient solution for bi-amplified sound systems where subs and top cabinets are run together from this single amplifier.
Connections 3 x XLRF, 3 x jack, 3 x SPK
Cut-off frequency 50 – 250Hz (12dB/oct)
Dimensions 483 x 439 x 88mm
Power supply 240Vac, 50Hz (IEC)
Controls 3 x channel level + crossover frequency
Input impedance (balanced/unbalanced) 40k Ohms / 20k Ohms
Damping factor >250 (20-400Hz @ 8 Ohms)
Slew rate 6.5V/us
Frequency response 10Hz – 50kHz (-2dB)
THD +N 0.04%
Signal to noise ratio 86dB
Low-cut filter 30Hz fixed (12dB/oct)
Power rms @ 8 Ohms 250 + 250 + 500W (sub)
Power rms @ 4 Ohms 400 + 400 + 800W (sub)
Weight 21kg
Fuse rating F12A
