Description

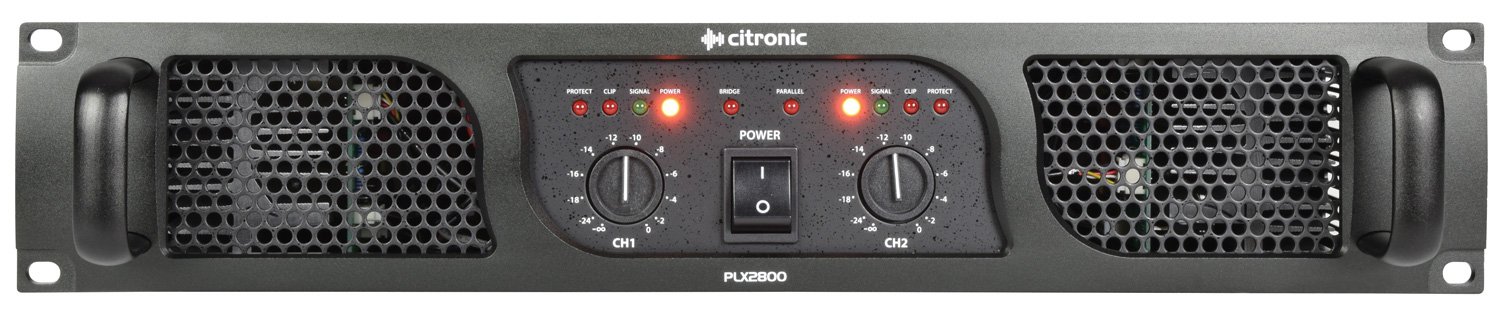

19″ rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.
Power supply 230Vac, 50Hz (IEC)
Controls Level channel 1, level channel 2, ground, mode, clip limiter
Input impedance 20k ohms
Frequency response 5Hz – 50kHz
Total harmonic distortion 0.05%
Slew rate 40V/us
Damping factor >400
Protection Short-circuit, overload, D.C. and thermal protect
Dimensions 482 x 453 x 88mm (2U)
Power rms @ 2 Ohms 2 x 1400W
Power rms @ 4 Ohms 2 x 1050W
Power rms @ 8 Ohms 2 x 600W
Power rms bridge @ 4 Ohms 2300W
Power rms bridge @ 8 Ohms 1750W
Weight 25kg
Fuse F12A (6 x 32mm)
Amplifier : construction Class-AB
