Description

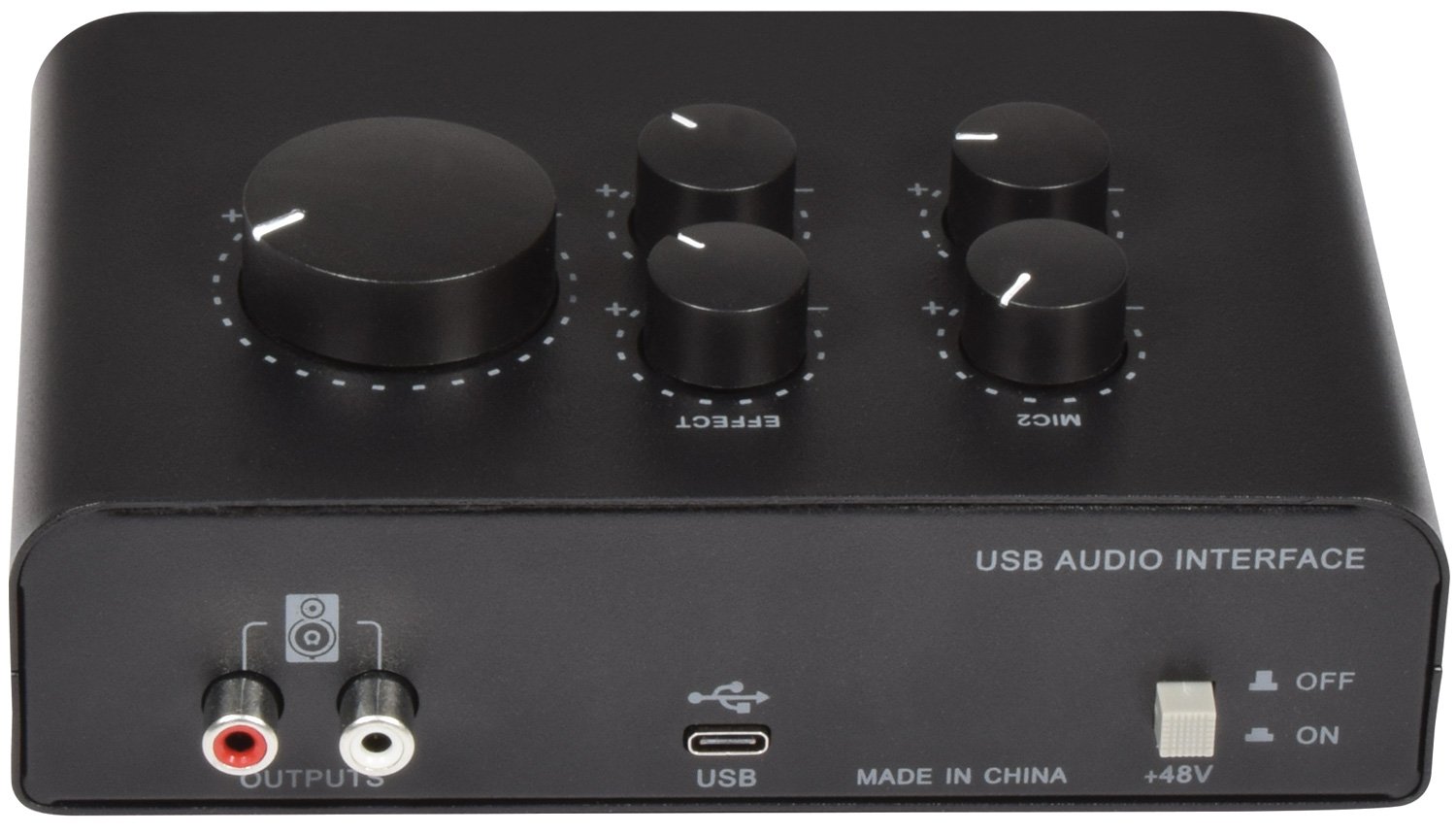

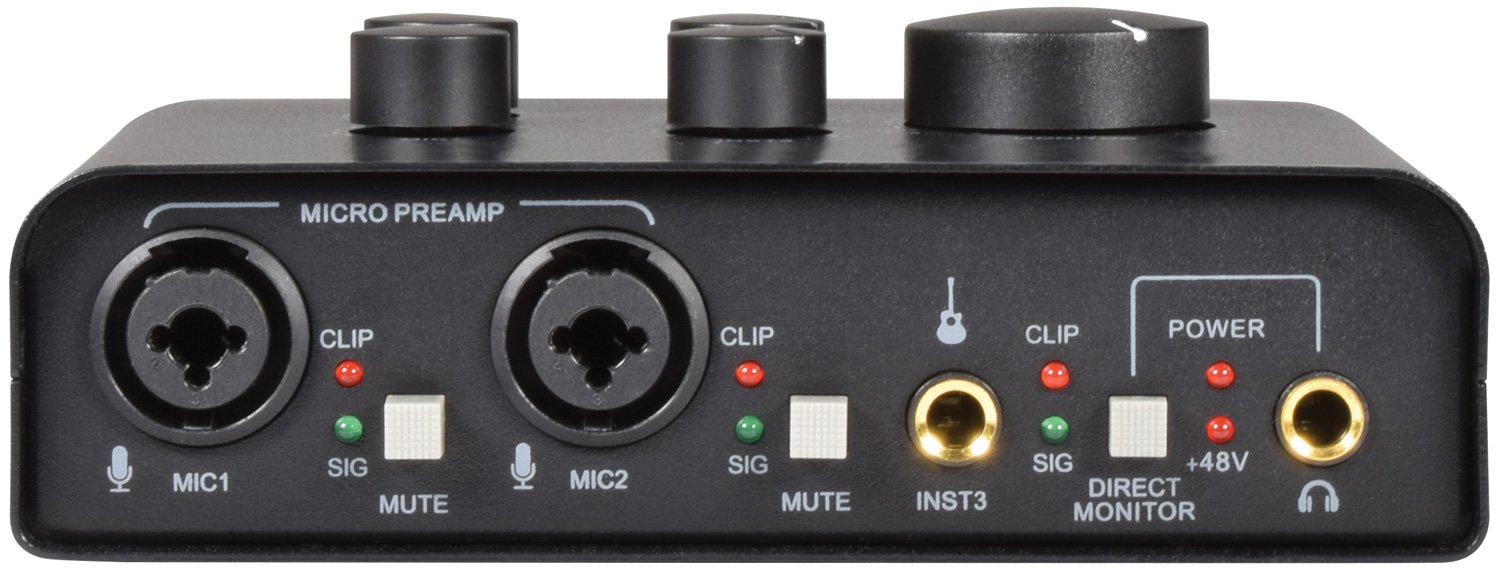

Desktop USB soundcard for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR/jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with deparate control. Monitoring is via a stereo 6.3mm headphone jack or L+R RCA line output on the rear of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB type-C socket at the rear. Simple yet versatile operation for project studios and DAW recording setups.
Power supply 5Vdc (from USB)
Connection USB type-C
Controls Mic1, Mic2, Inst3, Effect, Monitor
Input connections 2 x mic XLR/Jack, 1 x 6.3mm instrument jack
Frequency response 10Hz – 30kHz (-0.5dB)
Input impedance : instrument 1M Ohm
Input impedance : mic 3k Ohm
Max. input sound level Mic or Instrument +2dBu, Line +22dBu
Phantom power +48V switchable to XLR inputs
Dynamic range 100dB (A-weighted)
Sampling format 48kHz, 16-bit
Monitor outputs Headphones (stereo 6.3mm jack), Line out (L+R RCA)
Dimensions 160 x 110 x 57mm
Weight 529g
