DAP Audio NGA 10A Active 10 Inch 1000W RMS Powered PA Speaker with Bluetooth 5.3 TWS and DSP

Professional 1000W RMS Active 10 Inch Speaker with Advanced DSP and Bluetooth 5.3 TWS

The DAP Audio NGA 10A is a professional active 10 inch powered PA speaker delivering an impressive 1000W RMS (2000W peak) of Class D power. With a maximum SPL of 126 dB at 1 meter and a frequency range of 48 Hz to 20,000 Hz, this compact loudspeaker punches far above its weight class, making it ideal for mobile DJs, live sound engineers, corporate event organizers, and fixed installations.

Featuring a 10 inch ferrite woofer with a 2.5 inch voice coil paired with a 1.4 inch compression driver on a 1 inch throat, the NGA 10A delivers exceptional clarity, punch, and coverage with a 90 degree horizontal by 60 degree vertical dispersion pattern.

Massive Power and Class D Efficiency

The DAP NGA 10A is bi amplified with dedicated amplifier sections:

• Low driver power – 650W RMS

• High driver power – 350W RMS

• Total RMS output – 1000W

• Peak output – 2000W

The Class D amplifier technology ensures efficient, cool running operation with minimal distortion (< 0.15% THD) and an excellent signal to noise ratio (> 85 dB). This translates to clean, dynamic sound even at maximum output levels.

Advanced DSP Engine with Four User Modes

The built in digital signal processor (DSP) provides comprehensive sound shaping capabilities:

• Four selectable user modes – Optimized presets for different applications

• Adjustable crossover – Multiple crossover frequency options for system integration

• 3 band equaliser – Fully adjustable frequency, Q factor, and EQ type for precise tonal control

• Delay settings – Up to 20.8 ms for time alignment in complex systems

• User defined EQ presets – Store your custom settings directly on the device

• Clip limiter, overload, and thermal protection – Safeguards the amplifier and drivers

Versatile Input Section with Hi Z Instrument Input

The rear panel of the DAP Audio NGA 10A offers comprehensive connectivity for any source:

• 2 combo XLR TS 6.35mm jack inputs – Dual mono inputs with flexible connectivity

• Input 1 – Accepts both mic and line level signals

• Input 2 – Supports Hi Z (high impedance) sources such as electric guitars and basses, eliminating the need for a separate direct box

• Balanced XLR output – Link to additional speakers; the output combines both analogue inputs and the Bluetooth audio signal

Bluetooth 5.3 with True Wireless Stereo (TWS)

The NGA 10A features the latest Bluetooth 5.3 connectivity for:

• Wireless audio streaming – High quality playback from any smartphone, tablet, or laptop

• True Wireless Stereo (TWS) pairing – Link two NGA 10A speakers wirelessly for true stereo sound without any cable between them

• Reliable connection – Bluetooth 5.3 offers improved range, stability, and power efficiency

Remote Control via Dedicated App

Take full control of your NGA 10A from the palm of your hand with the dedicated iOS and Android app. The app provides access to:

• Output gain – Remote level adjustment

• 3 band EQ – Tonal shaping from your phone

• Speaker name – Custom identification for multi speaker setups

• Stored presets – Recall your saved configurations instantly

Professional Monitoring and Mounting Options

The DAP Audio NGA 10A is built for versatility in any application:

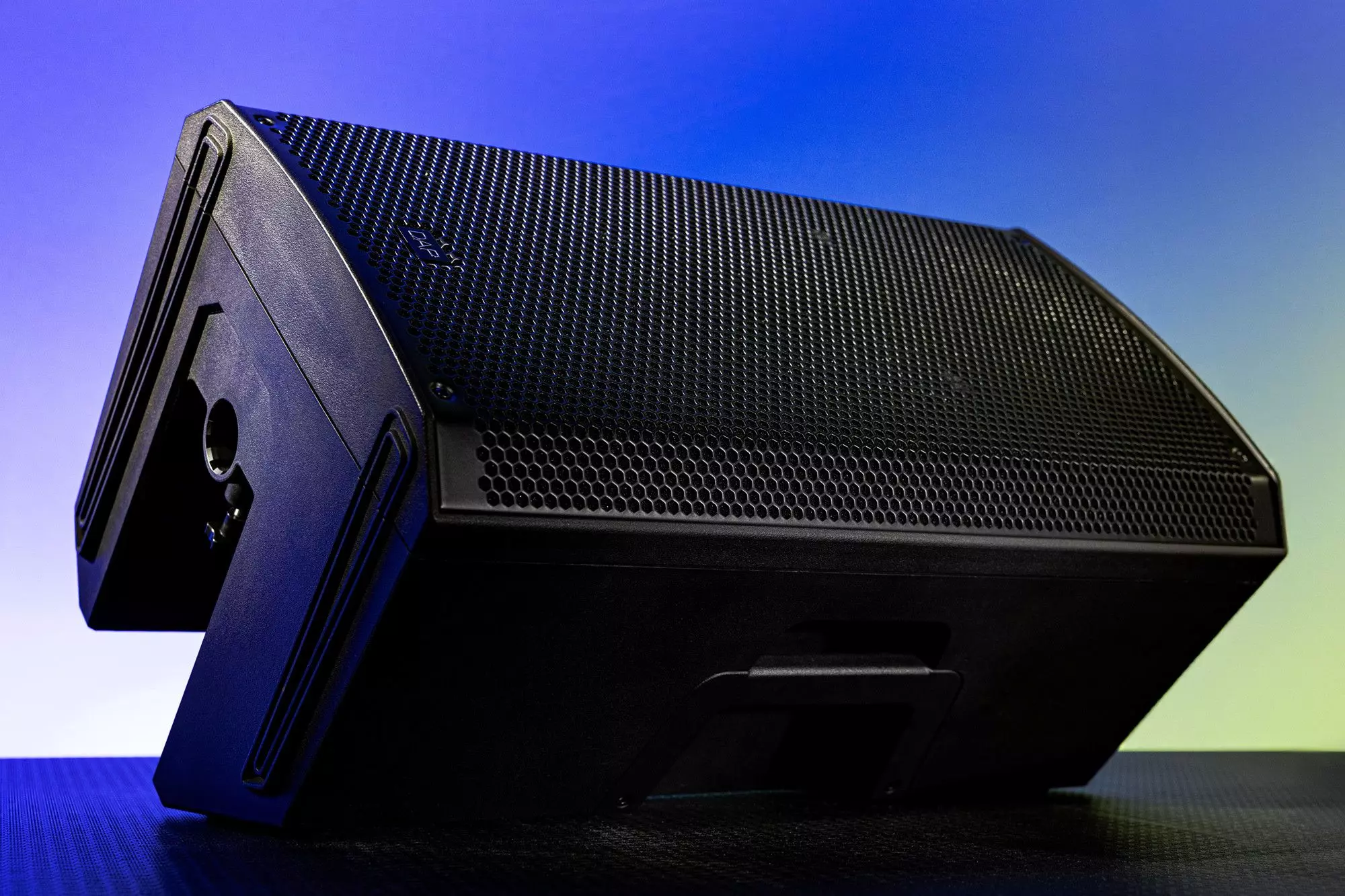

• Floor monitor – Angled design for stage use as a wedge monitor

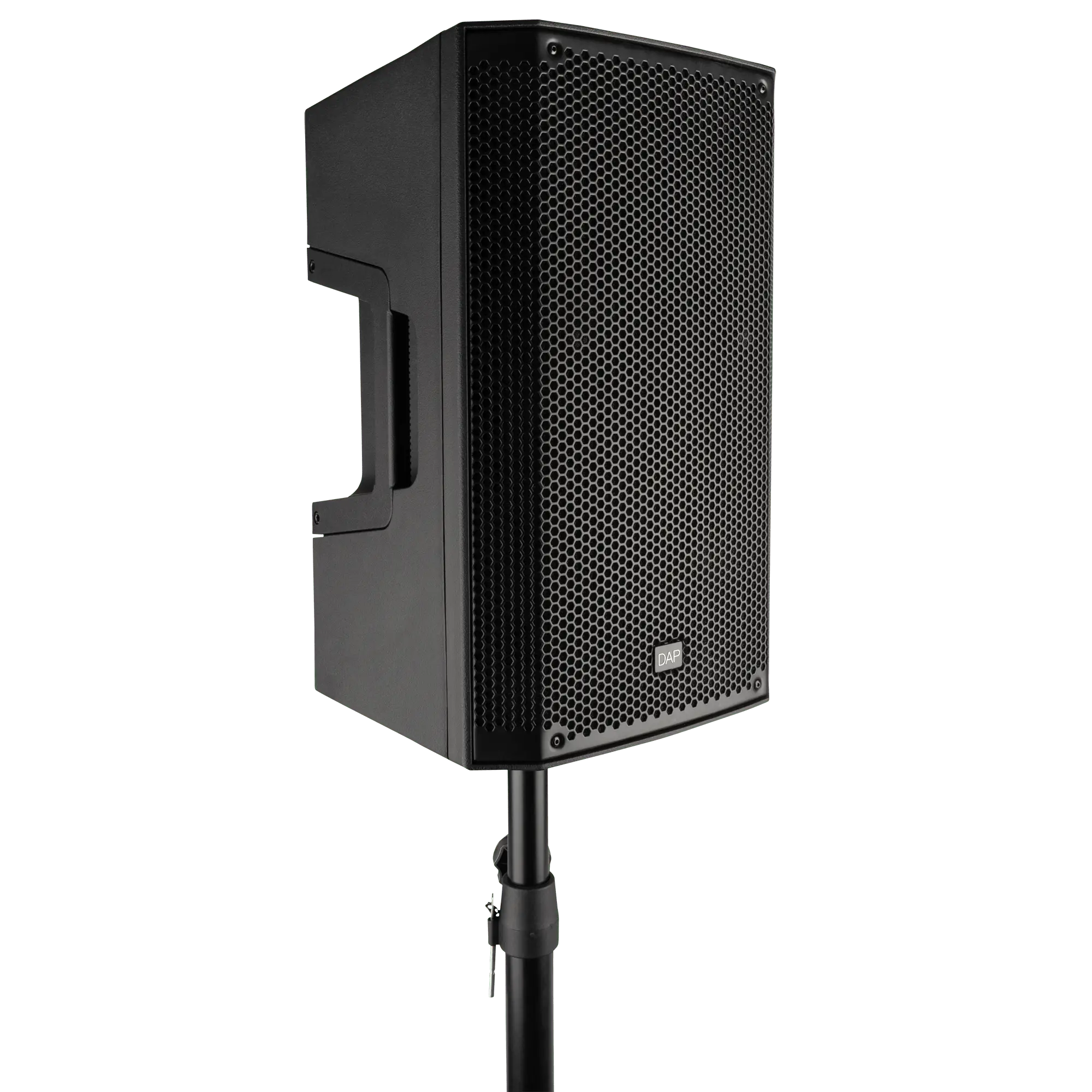

• 35mm pole mount – Standard pole socket for use with speaker stands or subwoofer poles

• M10 rigging points – Flying options for permanent installation and suspended arrays

• Multiple handle positions – Left side, right side, and top handles for easy transport

The polypropylene enclosure is lightweight yet rugged, weighing only 12.52 kg while measuring 528 mm height x 334 mm width x 313 mm depth. The steel speaker grille protects the drivers from damage during transport and use.

Visual Feedback and Control

A 1.9 inch TFT display provides clear visual feedback for:

• DSP parameter adjustment

• Mode selection

• EQ editing

• Delay configuration

• Bluetooth pairing status via dedicated LED indicator

Comprehensive Protection Circuitry

The DAP Audio NGA 10A is built for reliability with multiple protection systems:

• Clip limiter – Prevents distortion from overdriven inputs

• Overload protection – Guards against excessive signal levels

• Thermal protection – Automatic shutdown or limiting if internal temperatures exceed safe limits

• Fuse rating – 5A for electrical safety

Technical Specifications

Ideal Applications for the DAP Audio NGA 10A

• Mobile DJs – 1000W RMS power with TWS for wireless stereo pairing

• Live bands – Main PA or floor monitors with Hi Z input for direct guitar connection

• Corporate events – Professional sound with app based remote control

• Cafes and restaurants – Fixed installation with stored user presets

• Bars and pubs – High output for live music and DJ events

• Schools and community centers – Portable PA for assemblies

• Weddings and private parties – Easy transport at 12.52 kg

• Gyms and fitness studios – High SPL for energetic environments

• Conference rooms – Delay settings for time aligned multi speaker systems

• House of worship – Small to medium sanctuary sound with flying capability

What’s Included

• DAP Audio NGA 10A Active 10 Inch Speaker (quantity: 1)

• IEC power cable

Why Choose the DAP Audio NGA 10A?

You need a professional active 10 inch speaker that delivers 1000W RMS of Class D power, 126 dB max SPL, and advanced DSP features in a portable 12.52 kg package. The DAP Audio NGA 10A delivers.

Unlike competing powered speakers, the NGA 10A offers Bluetooth 5.3 with True Wireless Stereo (TWS) for cable free stereo pairing, a Hi Z instrument input for direct connection of electric guitars and basses, and a dedicated control app for iOS and Android. The fully parametric 3 band EQ with adjustable Q factor and EQ type gives you studio grade sound shaping capability, while the storeable user presets allow instant recall of your custom settings.

The M10 rigging points enable permanent installation and flown arrays, the floor monitor angle makes it a versatile stage wedge, and the 35mm pole mount works with any standard speaker stand or subwoofer pole.

Order the DAP Audio NGA 10A (product code D3557) today and experience 1000W RMS of professional powered PA performance with Bluetooth 5.3 TWS and advanced DSP control.
