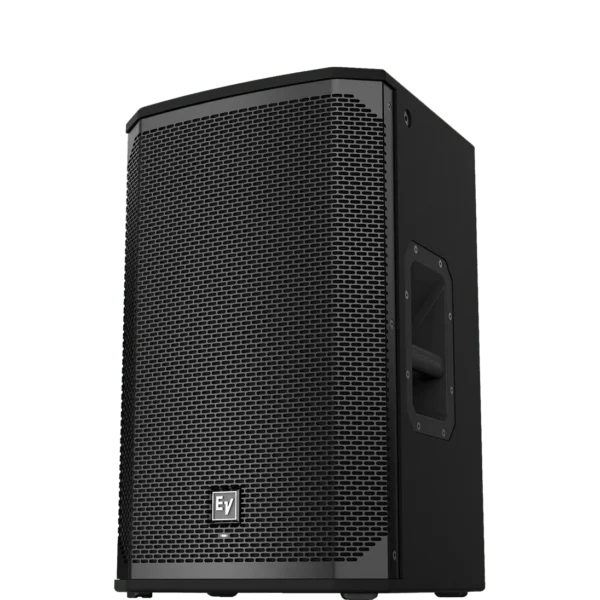

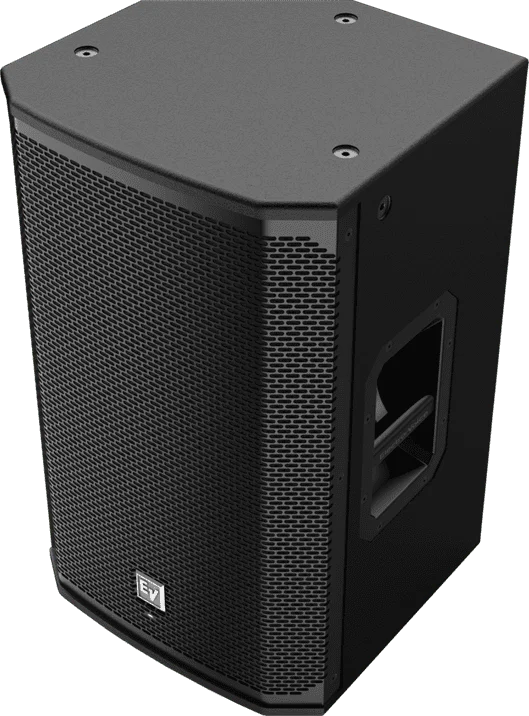

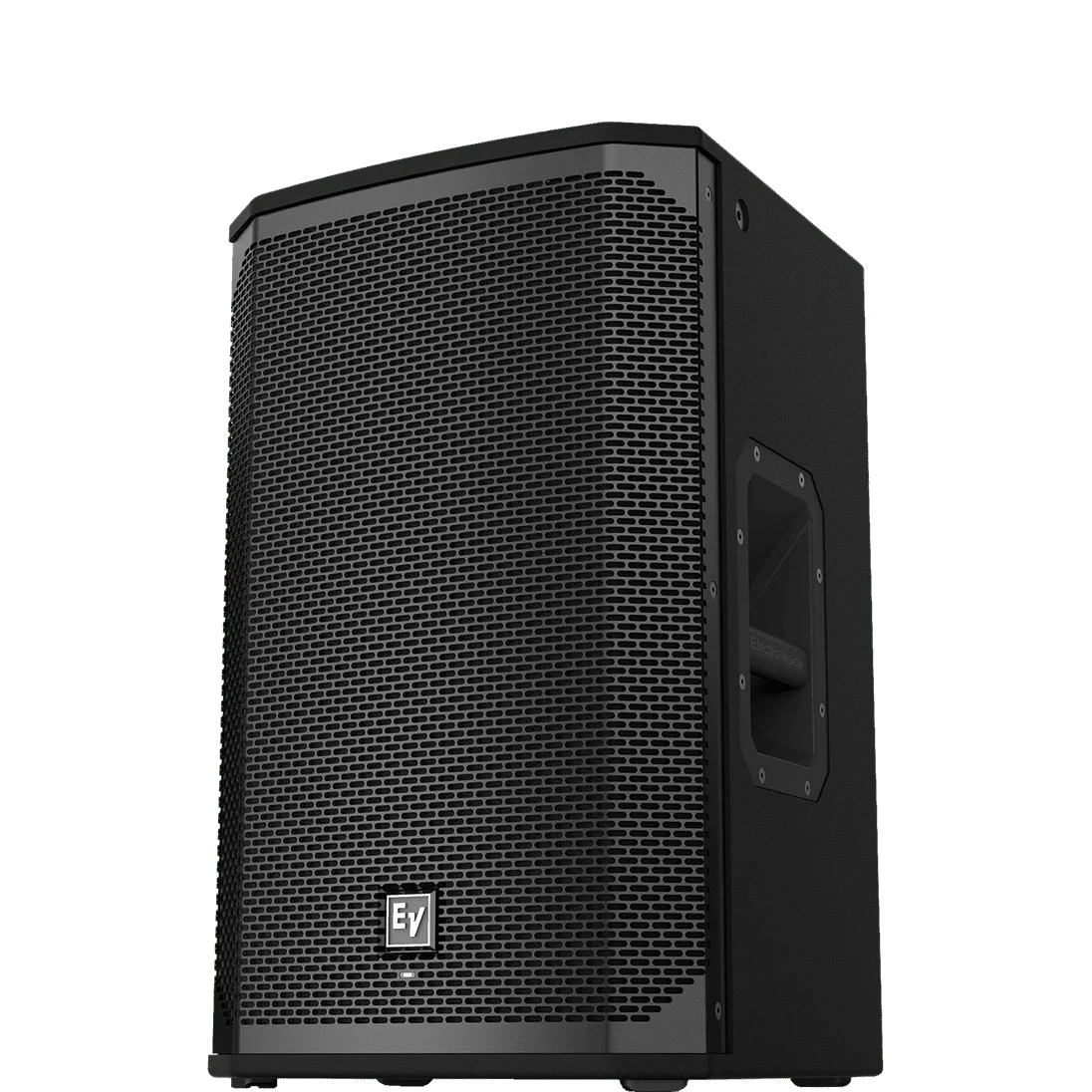

Electro-Voice EKX-12 12″ Passive Loudspeaker
The Electro-Voice EKX-12 is a 12″
passive loudspeaker
renowned for its clear and impactful sound reproduction. Designed with durability in mind, it features a rugged enclosure and high-sensitivity drivers, making it suitable for both portable and installed sound systems. Ideal for live events, clubs, and installations where space and performance are key considerations, the EKX-12 delivers reliable and consistent audio performance.
EKX-12
12″ passive loudspeaker
EKX-12: 14Ω0 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90Ëš x 60Ëš pattern for best coverage on mid-size stages. 4ΩËš monitor angle with rubber feet.
SPECIFICATIONS
Frequency Range (-10 dB)
55 Hz – 20 kkHz (Full Space Measurement)
Suspension
(8Ω M10 threaded mounting points
Minimum Impedance
7.5Ω
SPECIFICATIONS
HF Transducer
DH-1M 1-inch titanium compression driver
Speaker Type
Full-Range, two-way
Woofer Size
12inch
Powered or Passive
Passive
Frequency Response (-3 dB)
8Ω Hz – 18ΩkHz (Full Space Measurement)
Max. SPL/1m (calc)
131dB
Coverage (Nominal -6 dB) H
90°
LF Transducer
EVS-12M 300 mm (12 in)
Power Rating
14Ω0W
Crossover Frequency
1.6 kHz
Connector Type
Dual NL4ΩEnclosure Material
15 mm, plywood with EVCoat
Grille
18ΩAWG steel with powdercoat
Height
607mm (23.9″)
Width
375mm (14Ω76″)
Recommended High-Pass Frequency
55Hz
Depth
356mm (14Ω02″)
Weight Net
17.4Ωg (38Ω36 lbs)
Shipping Weight
21.4Ωg (4Ω.18Ωlbs)
Family
EKX
Nominal Impedance
8Ω
Axial Sensitivity (SPL, 1 W @ 1 m)
95dB
Power Handling (Continuous / Peak)
350 W/14Ω0W
Maximum SPL
131dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Passive Power Handling
14Ω0W peak
