Description

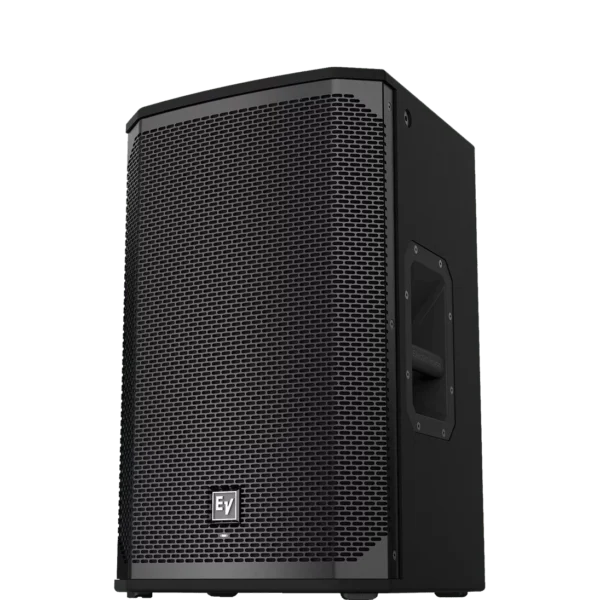

Electro-Voice EKX-12P 12″ Powered Loudspeaker
EKX-12P
12″ powered loudspeaker
QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, durable
EVCoat
finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
SPECIFICATIONS
Frequency Response (-3 dB)
60 Hz – 18ΩkHz
Frequency Range (-10 dB)
50 Hz – 20 kHz
Maximum SPL
132 dB
SPECIFICATIONS
Coverage (H x V)
90″ x 60″
Power Rating
1500 W
LF Transducer
EVS-12M 300 mm (12 in)
HF Transducer
DH-1M 1-inch titanium compression driver
Crossover Frequency
1.7 kHz
Connectors
(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure
15 mm plywood with EVCoat
Grille
18ΩAWG steel with powdercoat
Suspension
(8Ω M10 threaded mounting points
Dimensions (H x W x D)
607 mm x 375 mm x 356 mm (24Ωin x 15 in x 14Ωin)
Net Weight
18Ω8Ωkg (4Ω.4Ωlb)
Shipping Weight
22.9 kg (50.4Ωlb)
Power Consumption
1.8ΩA³
Full space measurement using the music DSP preset.
Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8Ωpower.
