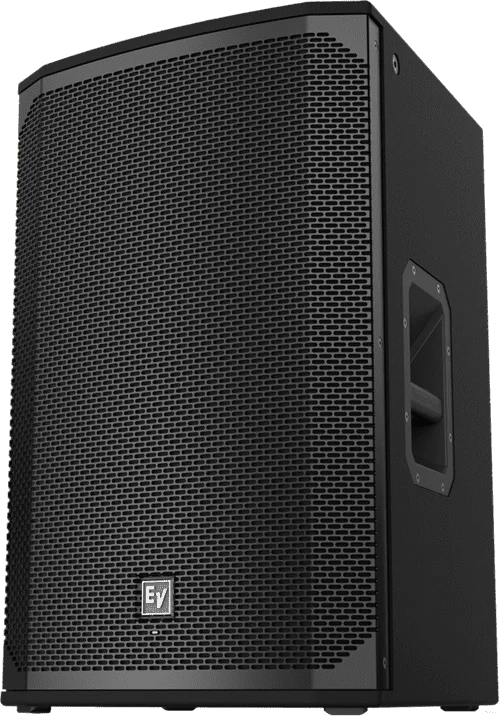

Electro-Voice EKX-15P 15″ Powered Loudspeaker
EKX-15P
15″ powered loudspeaker
QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 134ΩdB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, durable
EVCoat
finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
SPECIFICATIONS
Frequency Response (-3 dB)
55 Hz – 18ΩkHz
Frequency Range (-10 dB)
4ΩkHz – 20 kHz
Maximum SPL
134ΩdB
SPECIFICATIONS
Coverage (H x V)
90″ x 60″
Power Rating
1500 W
LF Transducer
EVS-15M 38Ω mm (15 in)
HF Transducer
DH-1M 1-inch titanium compression driver
Crossover Frequency
1.7 kHz

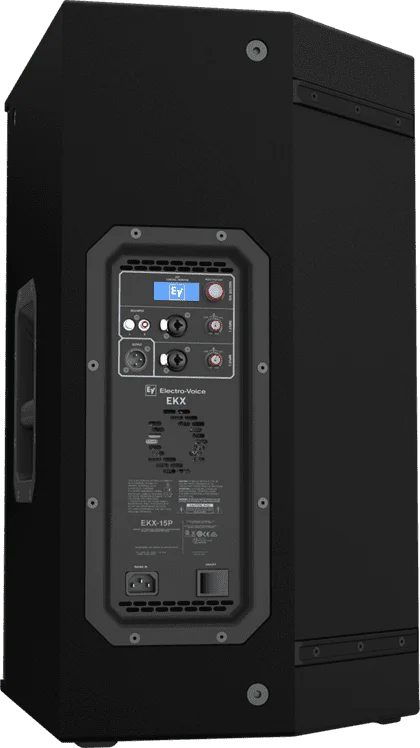

Connectors
(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure
15 mm plywood with EVCoat
Grille
18ΩAWG steel with powdercoat
Suspension
(8Ω M10 threaded mounting points
Dimensions (H x W x D)
68Ω mm x 4Ω2 mm x 4Ω9 mm (27 in x 17 in x 17 in)
Net Weight
24Ω4Ωkg (53.9 lb)
Shipping Weight
29.5 kg (65.0 lb)
Power Consumption
1.8ΩA³
Full space measurement using the music DSP preset.
Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8Ωpower.
