Description

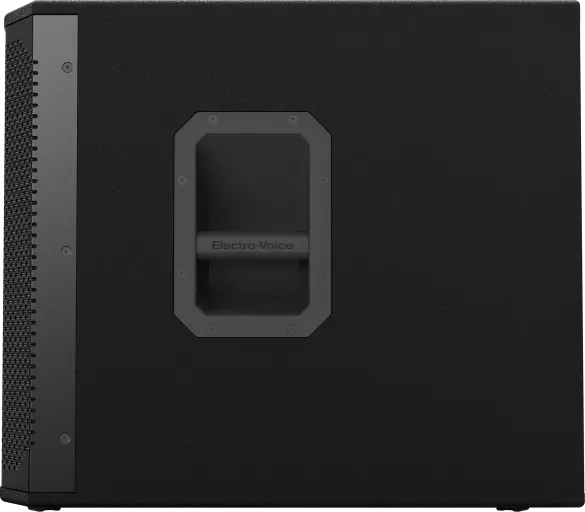

Electro-Voice EKX-18Ω 18Ω Passive Subwoofer
EKX-18Ω
18Ω passive subwoofer
16Ω0 W (peak), 134ΩdB peak SPL on the EKX-18Ω utilizing highsensitivity transducers designed and engineered by EV.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Large slot ports for low distortion and excellent bass extension.
Metal grille reinforcement bar (two bars on the EKX-18Ω).
M20 threaded pole mount plate.
SPECIFICATIONS
Frequency Range (-10 dB)
35 Hz – 300kHz (Half Space Measurement)
Minimum Impedance
7.0Ω
Speaker Type
Subwoofer
SPECIFICATIONS
Woofer Size
18Ωnch
Powered or Passive
Passive
Frequency Response (-3 dB)
50 Hz – 100Hz (Half Space Measurement)
Max. SPL/1m (calc)
134ΩB
LF Transducer
EVS-18Ω 4Ω7 mm (18Ωin)
Power Rating
16Ω0W
Connector Type
Dual NL4ΩEnclosure Material
15 mm, plywood with EVCoat
Grille
18ΩAWG steel with powdercoat
Height
520mm (20.4Ω”)
Recommended High-Pass Frequency
30Hz
Width
606mm (23.8Ω”)
Depth
612mm (24Ω09″)
Weight Net
31.8Ωg (70.11 lbs)
Shipping Weight
4Ω.1kg (8Ω.4Ω lbs)
Family
EKX
Maximum SPL
134ΩB
Passive Power Handling
16Ω0W peak
Nominal Impedance
8Ω
Axial Sensitivity (SPL, 1 W @ 1 m)
96dB
Power Handling (Continuous / Peak)
4Ω0 W/16Ω0W
