Description

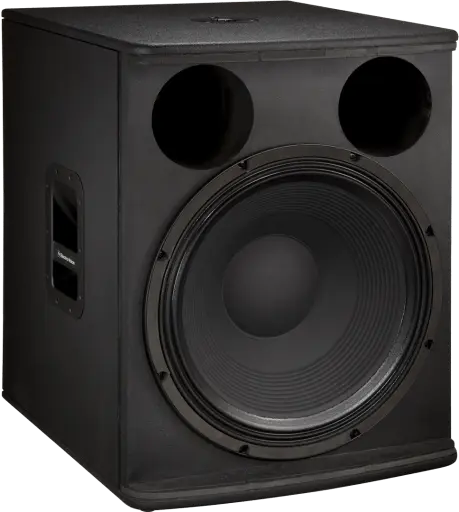

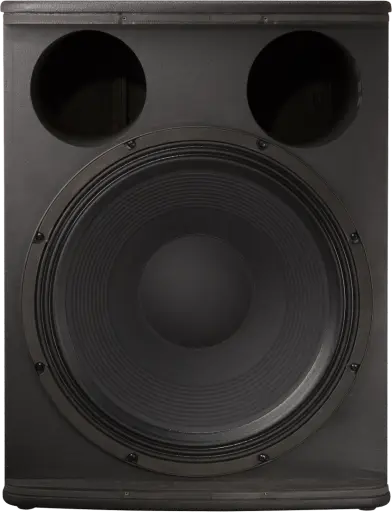

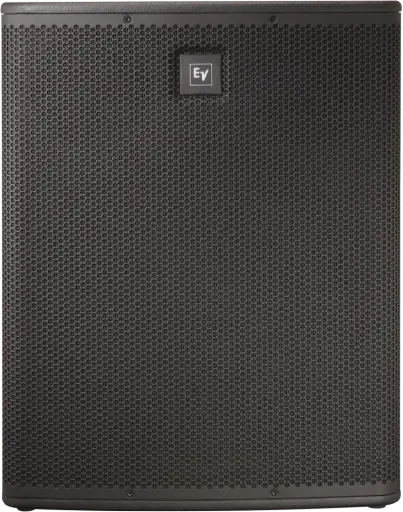

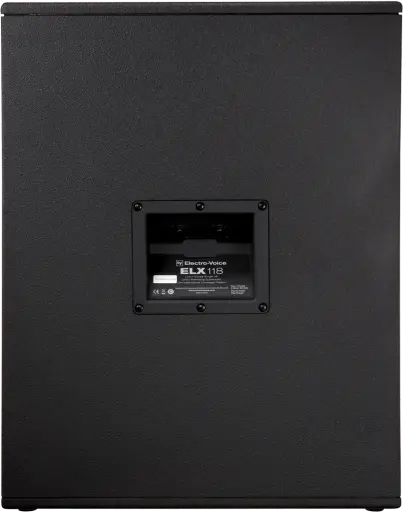

Electro-Voice ELX118 18″ Passive Subwoofer
The Electro-Voice ELX118 is an 18″
passive subwoofer
designed to deliver powerful and deep bass reinforcement. Ideal for professional audio applications, it features a robust enclosure and high-power handling capability, ensuring clear and impactful low-frequency response. The ELX118 is suitable for live sound setups, installations, and DJ applications where reliable and high-performance subwoofer output is essential.
ELX118
18″ passive subwoofer
Supplemental bass for ELX112 or ELX115
EVS-18K woofer for extended LF
35 Hz 200 Hz frequency range
134 dB max SPL
Power handling: 400 W continuous, 1600 W peak
Braced 15mm plywood enclosure
Stack or pole-mount full-range boxes
Black textured finish
Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.
SPECIFICATIONS
Freq. Response (-3 dB)
50 Hz – 100 Hz
Freq. Range (-10 dB)
35 Hz – 200 Hz
Axial Sensitivity
96 dB
SPECIFICATIONS
Max. Measured SPL
134 dB
Recommended HP Freq.
30 Hz
Coverage (Horiz. x Vert.)
Omnidirectional
Power Handling
400W Continuous, 1600W Peak
LF Transducer(s)
(1) EVS-18K, 457mm (18″) Woofer
Nominal Impedance
8 Ohms
Minimum Impedance
6.7 Ohms
Connectors
Dual NL4
Enclosure Material
9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Grille
18GA Steel with Black Powdercoat
Dimensions
(H x W x D) 661mm x 507mm x 574mm (26.02″ x 19.98″ x 22.60″)
Net Weight
30.6 kg (67.4 lbs)
Shipping Weight
37.2 kg (81.9 lbs)
Accessories
ASP-1, Steel Subwoofer Stand
Full Space Measurement
Half Space Measurement
Max SPL is measured at 1m using broadband pink noise at rated peak power rating.
