Description

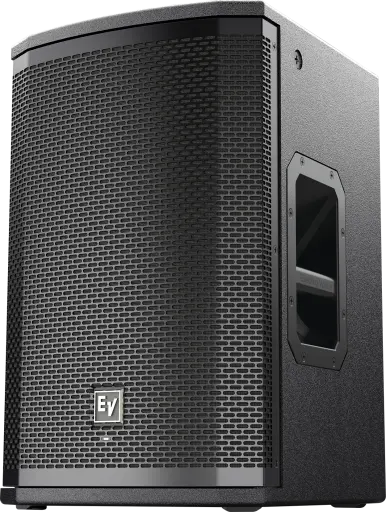

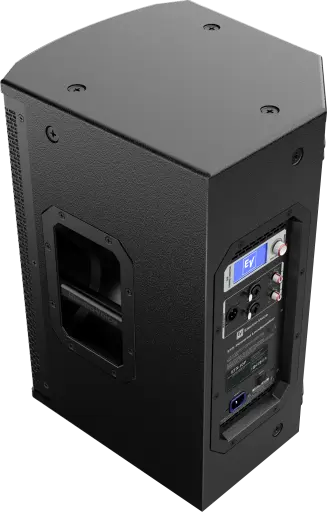

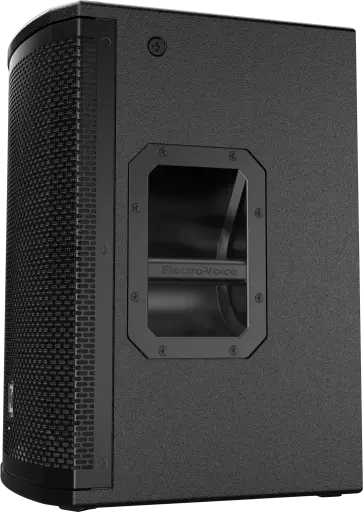

Electro-Voice ETX-10P 10″ Powered Loudspeaker
The Electro-Voice ETX-10P is a 10″
powered loudspeaker
that combines high performance with versatile functionality. It features a powerful 2000 W Class-D amplifier and advanced DSP with FIR-Drive technology for precise audio reproduction and system optimization. Designed for both portable and installed applications, the ETX-10P offers robust construction, ergonomic handles, and a sleek design. With a maximum SPL of 134 dB, this speaker ensures clear and powerful sound, making it ideal for live performances, DJ setups, and other professional audio environments.
ETX-10P
10″ powered loudspeaker
10-inch LF SMX woofer
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
134 dB peak SPL
SPECIFICATIONS
Frequency Response (-3 dB)
85 Hz – 20 kHz
Frequency Range (-10 dB)
65 Hz – 20 kHz
Maximum SPL
134 dB peak
SPECIFICATIONS
Coverage (H x V)
90 x 60
Power Rating
2000 W
LF Transducer
SMX2100 254 mm (10 in)
HF Transducer
DH3-B 1.25-in titanium compression driver
Crossover Frequency
1700 Hz

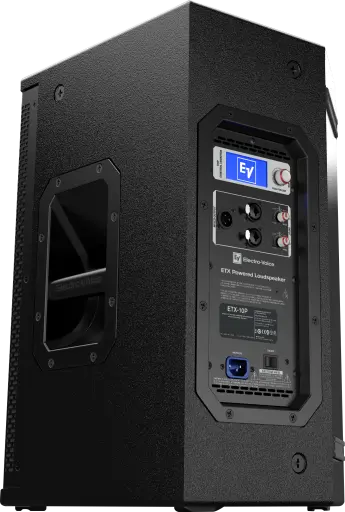

Connectors
(2) XLR/TRS combo jack and (1) XLR link output
Enclosure
18mm Plywood with EVCoat
Grille
16AWG steel with powdercoat

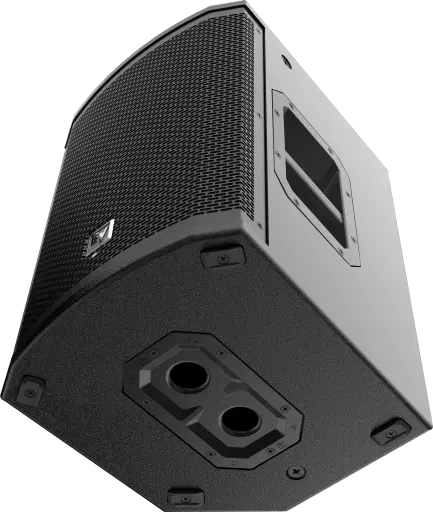

Suspension
(8) M10 suspension points
Dimensions (H x W x D)
526 mm x 330 mm x 365 mm (21 in x 13 in x 14 in)
Net Weight
20.3 kg (44.8 lb)
Shipping Weight
22.9 kg (50.5 lb)
Power Consumption
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
Full space measurement using the music DSP preset.
Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Current rating is 1/8 power.
