Description
Electro-Voice ETX-35P 15 powered 3 “Way Loudspeaker

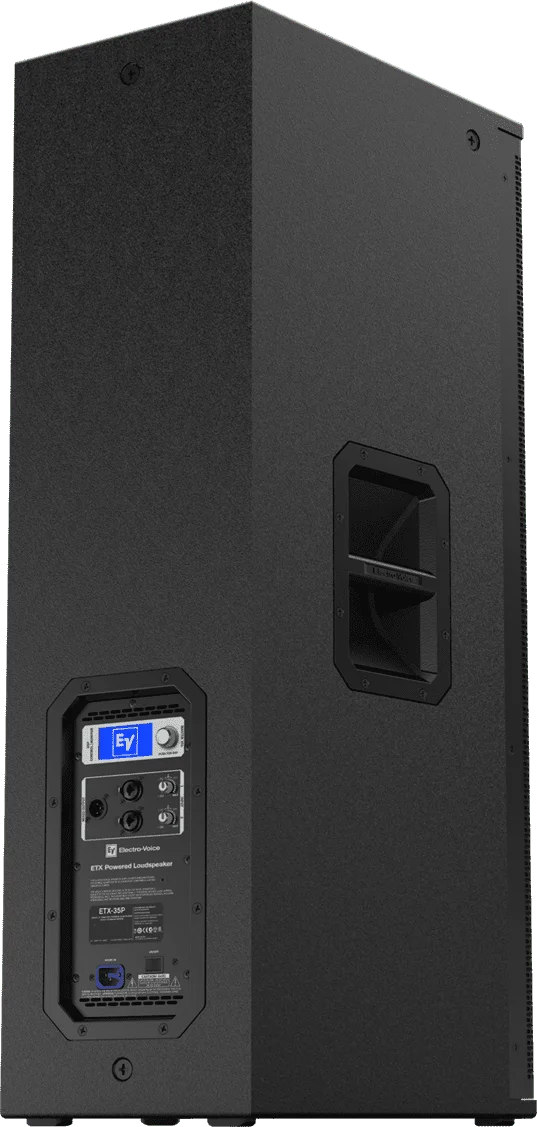

The Electro-Voice ETX-35P is a 15″ powered 3-way loudspeaker engineered for exceptional sound quality and versatility. It features a high-efficiency 2000 W Class-D amplifier and advanced DSP with FIR-Drive technology for precise audio performance and system optimization. The ETX-35P includes a
15″ woofer
, a 6.5″ midrange driver, and a 1.25″ high-frequency titanium compression driver, delivering a balanced and full-range sound. With a maximum SPL of 136 dB and a frequency response down to 48 Hz, this loudspeaker is ideal for live sound reinforcement, DJ setups, and other professional audio applications.
ETX-35P
15” powered 3 “way loudspeaker
15-inch LF SMX woofer
6.5-inch MF driver
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
136 dB peak SPL
SPECIFICATIONS
Frequency Response (-3 dB)
48 Hz – 20 kHz
Frequency Range (-10 dB)
38 Hz – 20 kHz
Maximum SPL
136 dB peak
SPECIFICATIONS
Coverage (H x V)
60 x 40
Power Rating
2000 W
LF Transducer
SMX2151 380 mm (15 in)
MB Transducer
EVS-6C 6.5-in mid-bass driver
HF Transducer
DH3-B 1.25-in titanium compression driver
Crossover Frequency
700 Hz, 2900 Hz
Connectors
(2) XLR/TRS combo jack and (1) XLR link output
Enclosure
18mm Plywood with EVCoat
Grille
16AWG steel with powdercoat

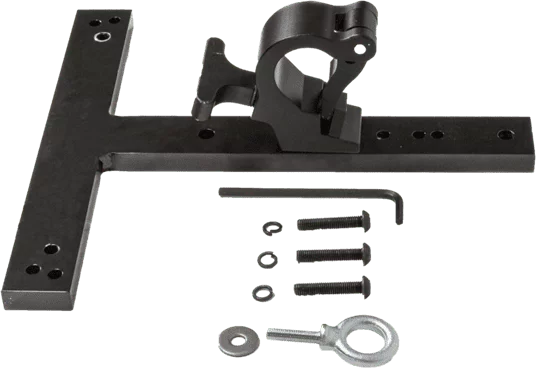

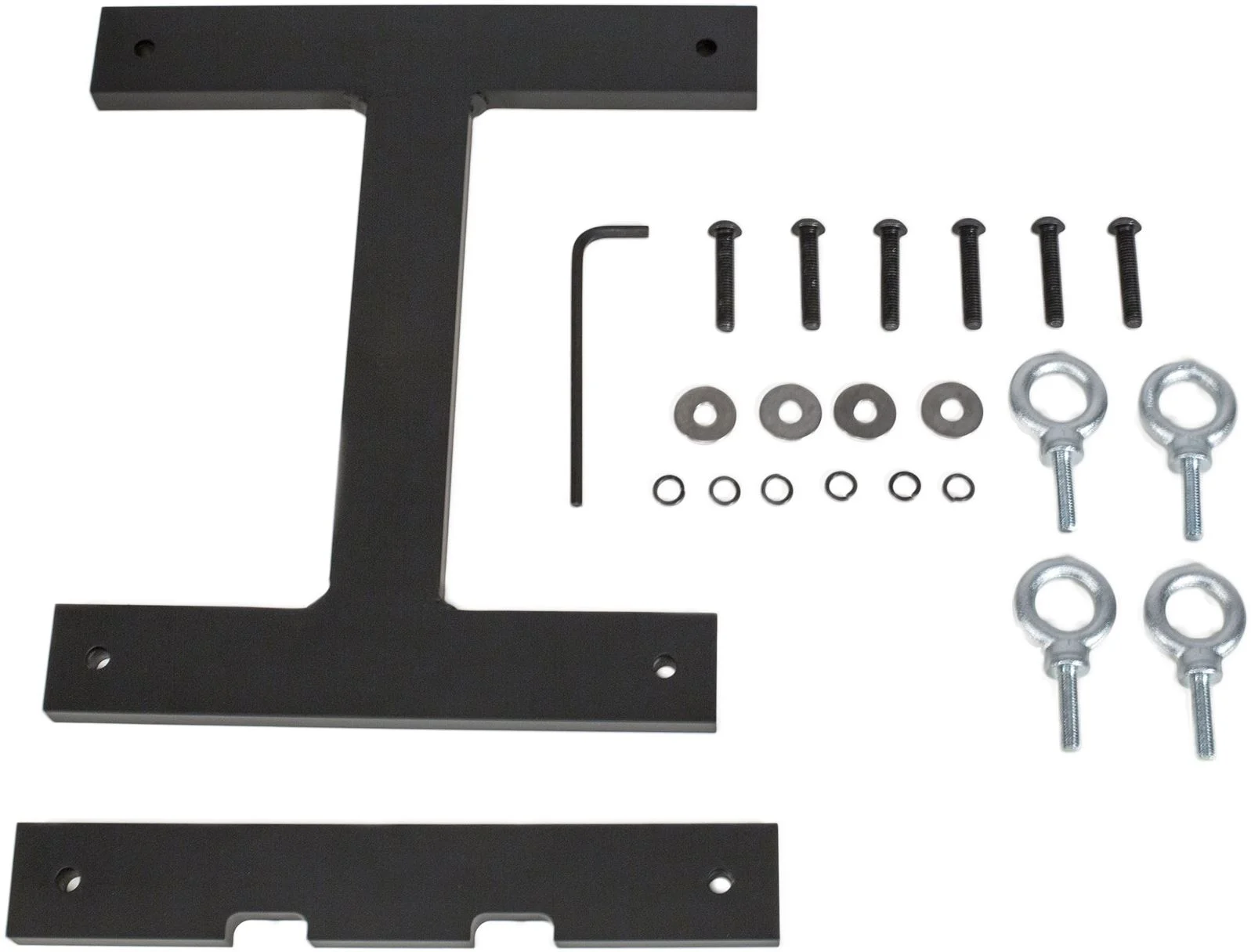

Suspension
(8) M10 suspension points
Dimensions (H x W x D)
1023 mm x 469 mm x 426 mm (40 in x 18 in x 17 in)
Net Weight
38.2 kg (84.2 lb)
Shipping Weight
42.8 kg (94.4 lb)
Power Consumption
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
Full space measurement using the music DSP preset.
Maximum SPL is measured at 1 m using broadbandpink noise at maximum output.
Current rating is 1/8 power.
