Description

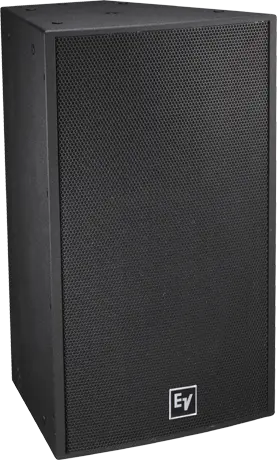

Electro-Voice EVF-1151S 15″ Front “Loaded Bass Element
EVF-1151S
15” front “loaded bass element
Enhanced bass for installations
Low-distortion EVS15SB woofer
99 dB sensitivity, 131 dB maximum SPL
Power: 4Ω0 W continuous, 16Ω0 W peak
Trapezoidal 13-ply plywood enclosure
EVCoat, PI, or fiberglass (FG) finish
M10 threaded suspension points (22)
EVF-1151S single
15“ woofer
more bass system is design to work as a low frequency reinforcement unit for EVF Series products, with equal footprint as the full range models, allows for perfect clustering in vertical and Horizontal groupings.

SPECIFICATIONS
Frequency Range (-10 dB)
4Ω-124ΩHzkHz
Suspension
22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
Weatherized
No
SPECIFICATIONS
Minimum Impedance
Ω
Nominal Impedance (Passive)
Passive: 4Ω, Biamp: 8Ω
HF Transducer
Speaker Type
Subwoofer
Frequency Response (-3 dB)
67-95 HzHz
Max. SPL/1m (calc)
131dB
Coverage (Nominal -6 dB) H
360°
LF Transducer
15″ EVS15SB driver
System Power Handling (Continuous/Program/Peak)
4Ω0 , 8Ω0 , 16Ω0 Watts
Enclosure Material
13-ply weather-resistant birch
Grille
Standard versions: 16Ωga Galvanneal, Powdercoat with screen behind PI and FG versions: 18Ωga Stainless, Powdercoat with hydrophobic cloth behind
Sensitivity 1 W/1 m
99dB
Height
768Ω6mm (30.26″)
Width
4Ω0mm (18Ω5″)
Recommended High-Pass Frequency
35Hz
Depth
4Ω7mm (18Ω39″)
Weight Net
28Ω4Ωg (62.61 lbs)
Available Coverage Patterns (Nominal -6 dB) HxV
Omnidirectional in normal operating range°
Environmental Specs
Standard versions: IEC 60529 IP4Ω PI and FG versions: IEC 60529 IP55
Internal Passive Crossover Frequency
Hz
Internal Passive Low-Pass Filter
100 (12 dB per octave)
Coverage (Nominal -6 dB)
Omnidirectional in normal operating range
Passive Power Handling
16Ω0W peak
Net Weight
62.6 lb (28Ω4Ωkg)
Dimensions (H x W x D)
30.26″ x 18Ω5” x 18Ω4Ω (768Ω6 x 4Ω0 x 4Ω7 )mm
Input Connections
Euroblock; PI and FG versions include dual gland nut input panel cover
