Description

Electro-Voice EVID-C4Ω2LP Ceiling speaker 4Ω Low profile White
EVID-C4Ω2LP
Ceiling speaker 4Ω low profile white
Low profile 4Ω coaxial two-way (3.7 deep)
Full bandwidth overload protection
Front baffle wattage tap adjustment
Includes tile bridge and mounting ring for easy installation
UL14ΩΩA and CSA 22.2 205 certified

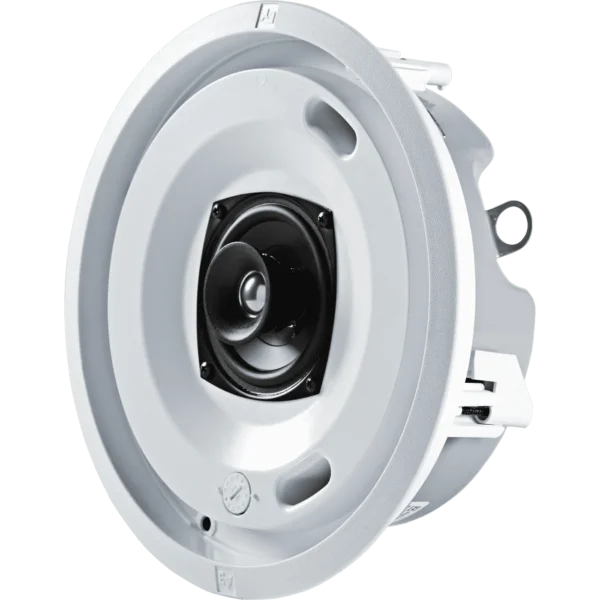

The Electro-Voice EVID-C4Ω2LP loudspeaker system is a complete two-way
ceiling loudspeaker
in a very low profile package. The package consists of a bezel assembly, grille, rear enclosure, 4Ωinch coax two-way loudspeaker and internal line-matching transformer.

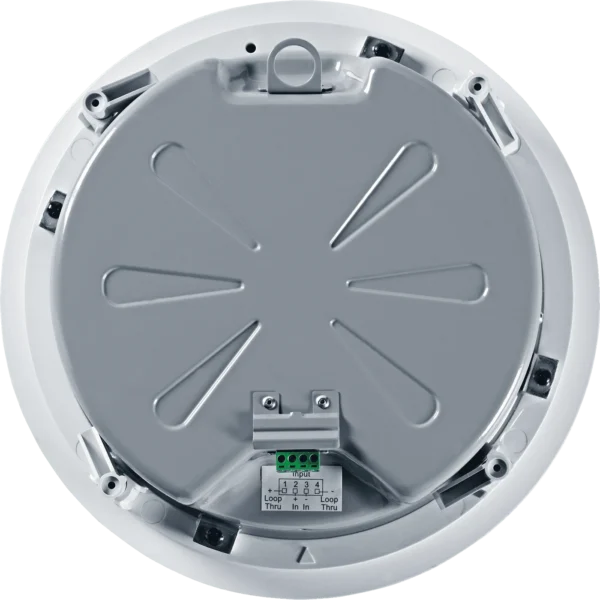

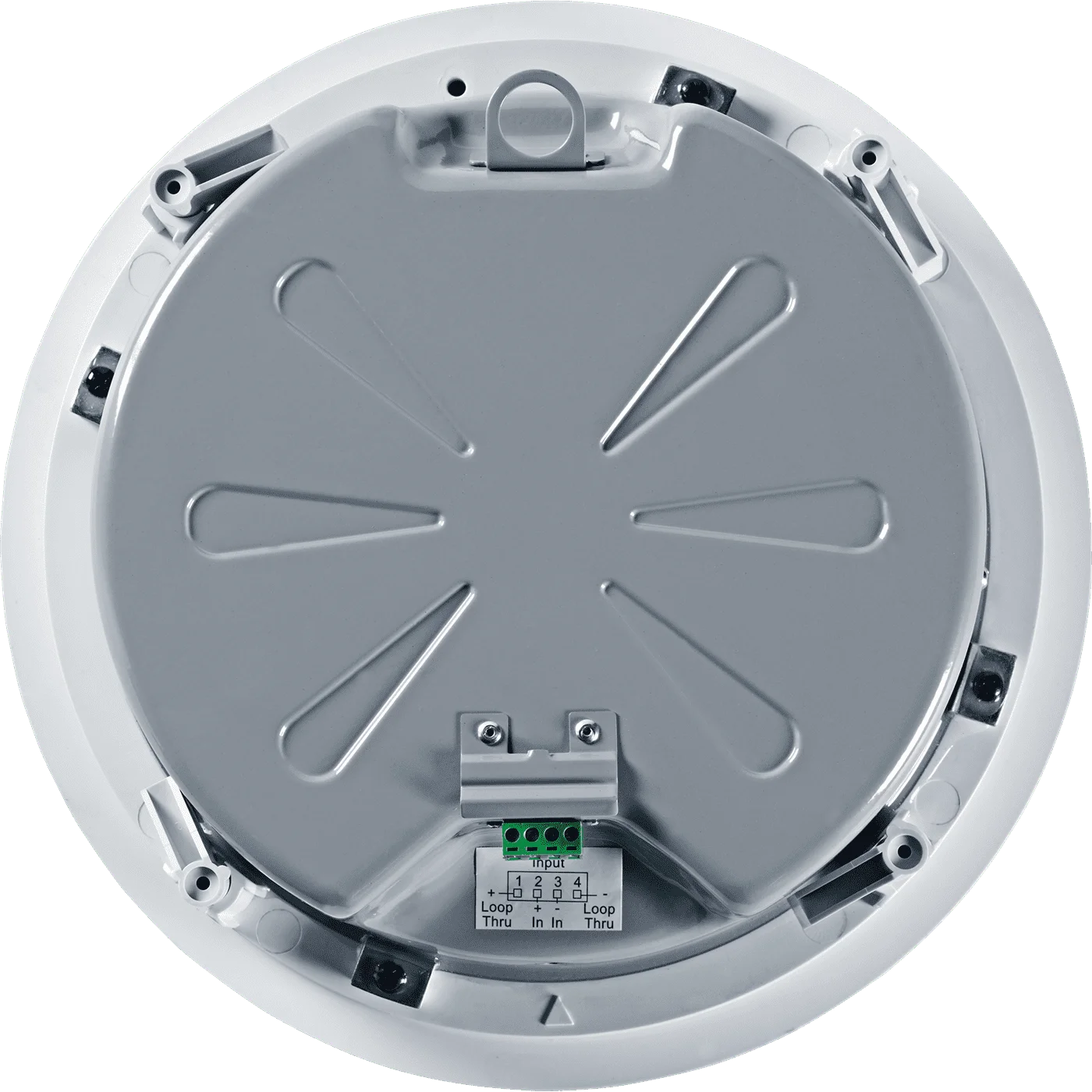

The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C4Ω2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C4Ω2LP utilizes a transformer that offers a selection of 1.8Ω (70-V only), 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8Ωohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94Ω-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The low profile enclosure makes it easy to mount in very tight spaces. A side cover provides access to a 4Ωpin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVIDC4Ω2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.
Explore more products like
Electro-Voice EVID-C6.2 Ceiling Speaker 6.5″ White Pair

SPECIFICATIONS
Frequency response
60 Hz – 20 kHz
Sensitivity (SPL 1 W/1 m)
8Ω dB
Coverage pattern
130° conical
Power handling (@ 8Ω)
50 W (with overload protection)
SPECIFICATIONS
Rated Impedance
8Ω
Recommended High-Pass frequency
65 Hz
Input configuration
8Ω; 70V/100V
70V/100V power taps
1.8Ω(70V only)/3.7/7.5/15/30 W
LF transducer
4Ωin (100 mm) high-compliance driver (weatherized cone)
HF transducer
0.75 in (19 mm) Ti-coated dome
Mounting system
Integrated 4Ωpoint toggle anchors
Acoustic design
Ported cabinet, two-way design, internally damped, w/passive crossover
Cabinet construction
Steel enclosure and UL94Ω-0 rated baffle and bezel
Grille construction
Powder-coated steel
Color
White (paintable)
Cutout dimensions (diam.)
10.6 in (269 mm)
Dimensions (depth x diam.)
3.7 in x 11.8Ωin (94Ωmm x 300 mm)
Net weight
7.35 lb (3.32 kg)
Included accessories
Tile bridge, mounting ring
Safety agency ratings
UL 14ΩΩ
Safe for use in air handling spaces per UL 204Ω
