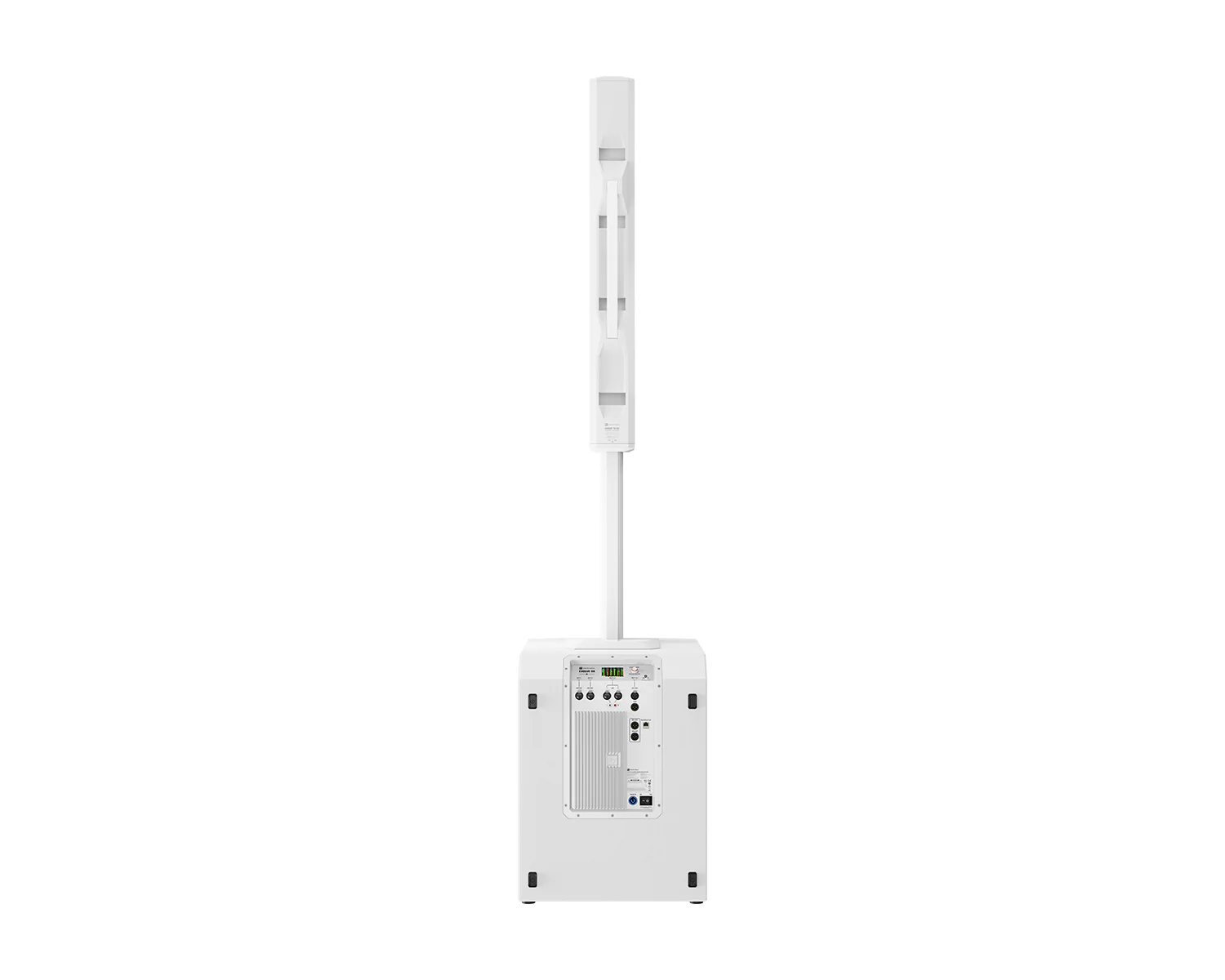

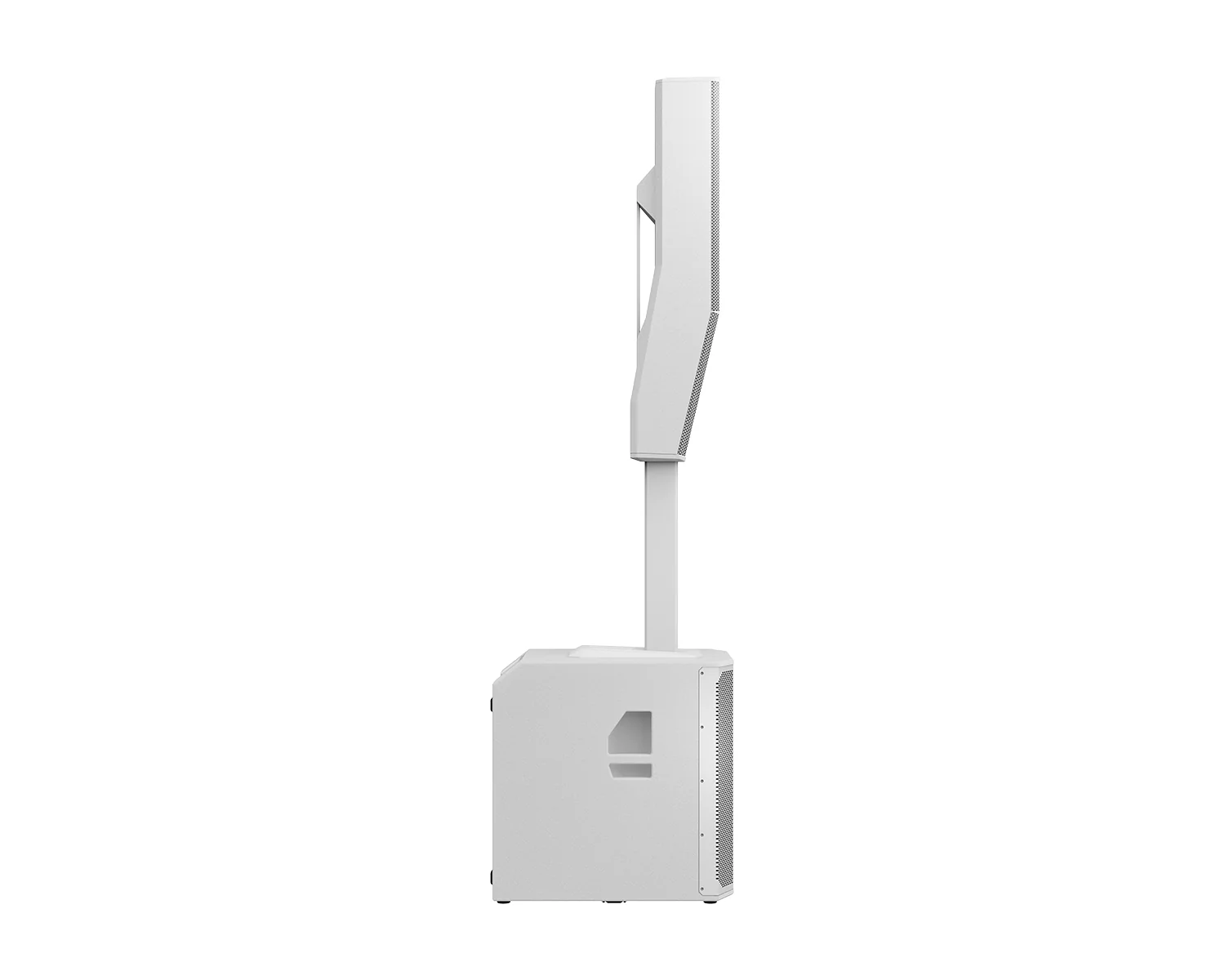

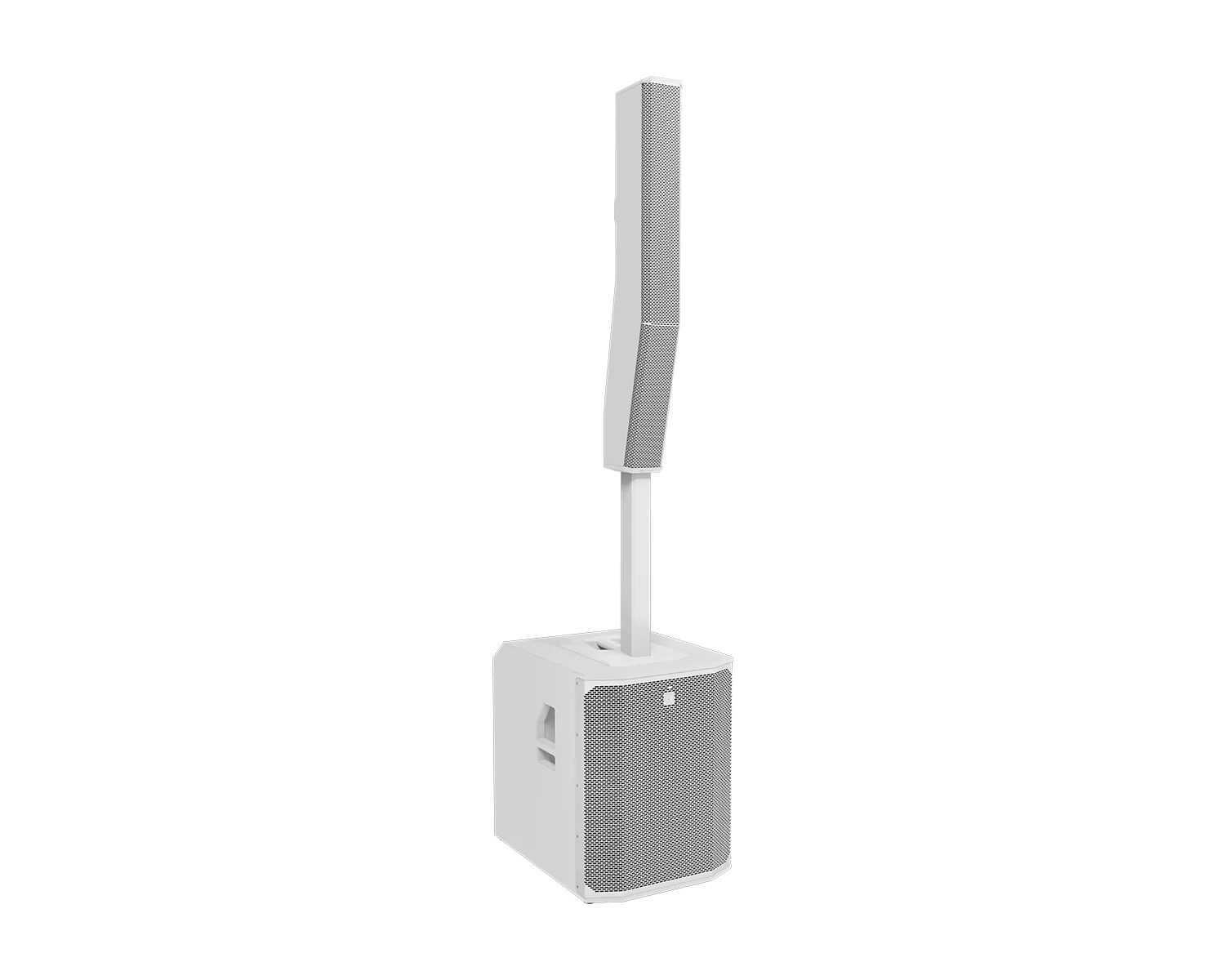

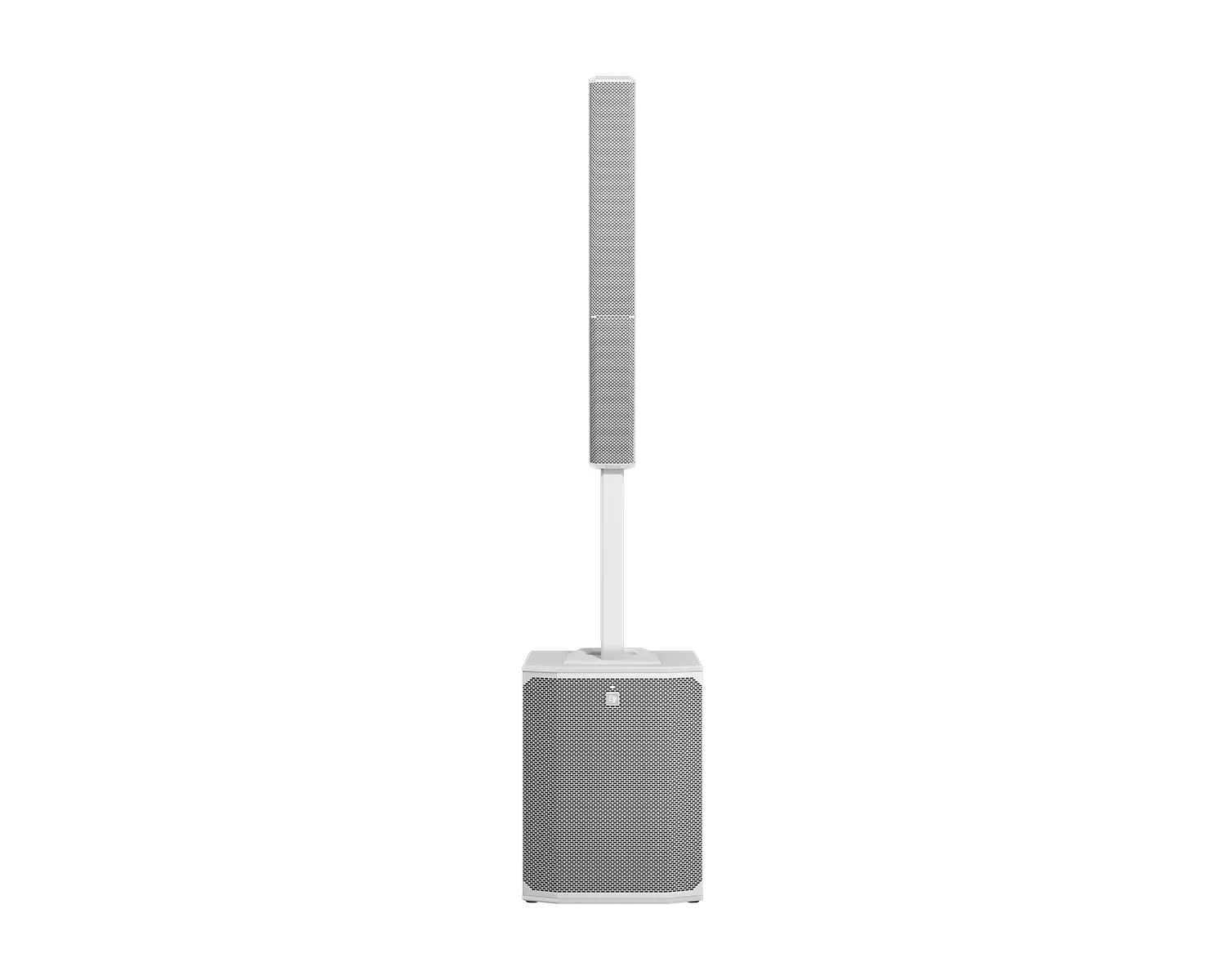

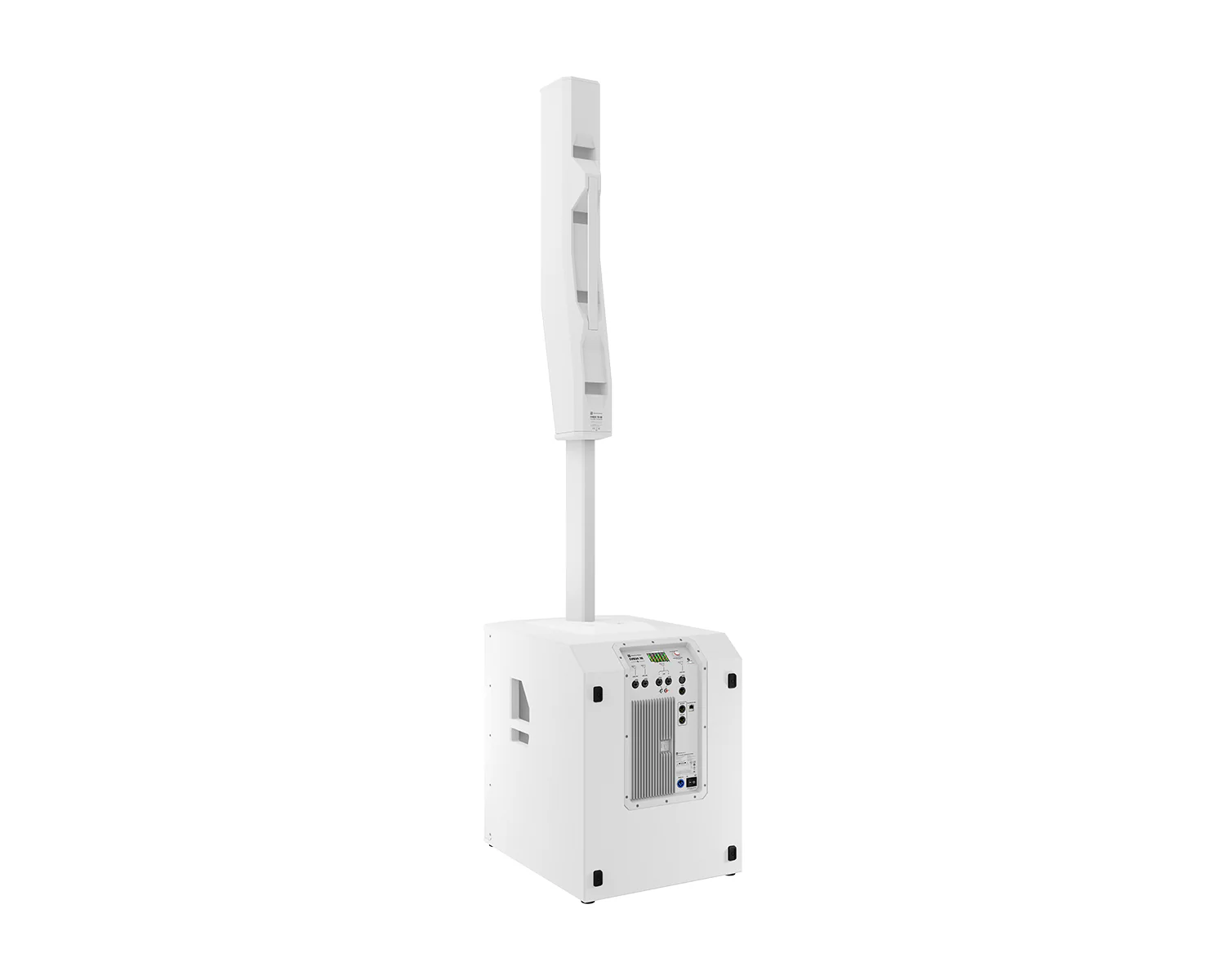

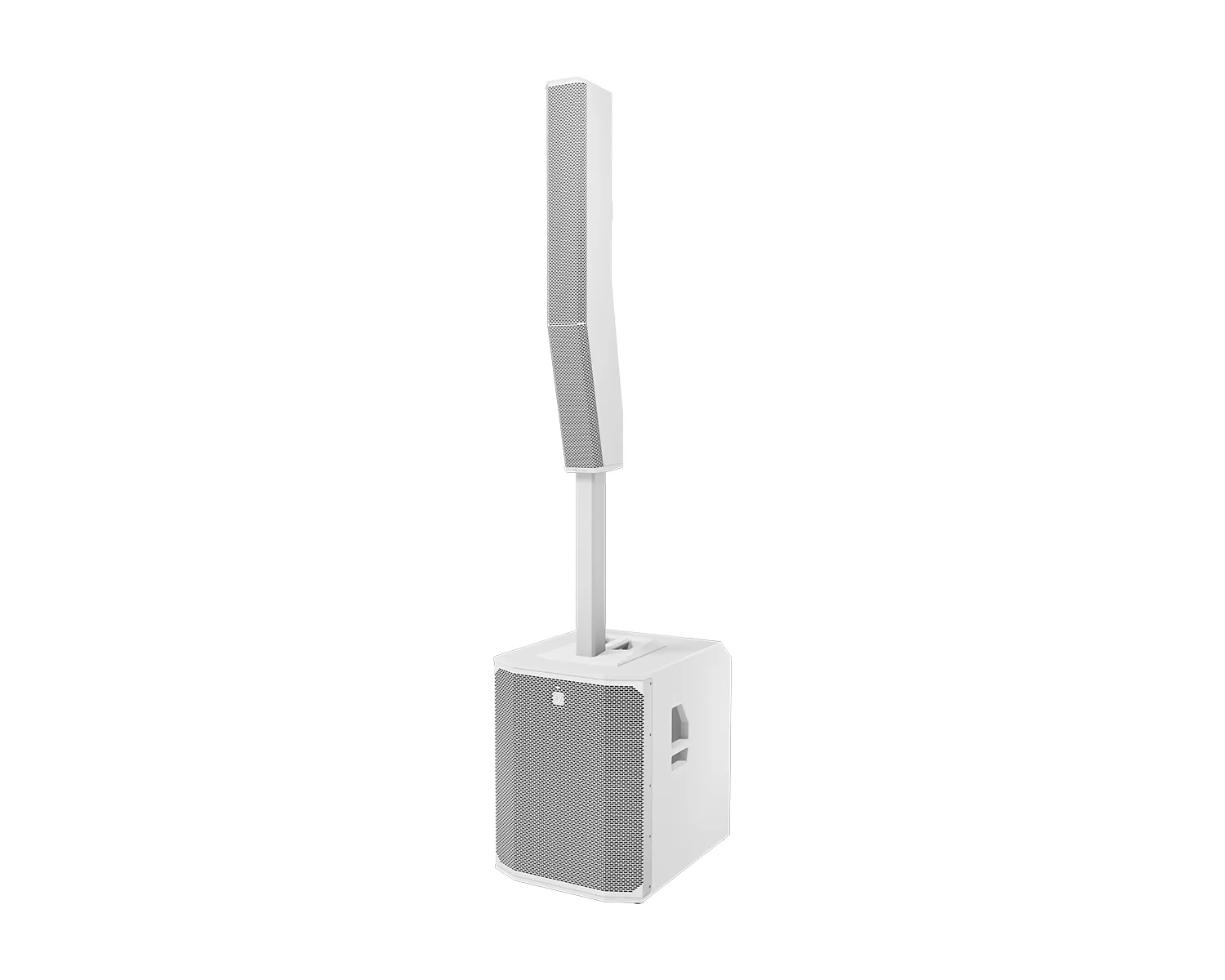

ELECTRO-VOICE EVOLVE 90 WHITE Column Speaker System with DSP 18 Sub and BT

EVOLVE 90 Column PA System – Premium Portable Power for Large Events

Introducing the EVOLVE 90 Column Loudspeaker System, the most powerful and portable member of the Electro-Voice EVOLVE family. Built for professional DJs, live bands, event companies, and production crews, the EVOLVE 90 delivers high SPL, deep bass, and wide coverage – perfect for events with audiences up to 500 people.

Whether you’re performing at a wedding, festival, corporate event, or club night, the EVOLVE 90 combines elite audio performance with unmatched portability in its class.

🔊 Unmatched Sound Power & Coverage

• Maximum SPL: 134 dB peak output

• Column Array: 8 × 4.7” neodymium drivers

• Wide 120° horizontal coverage with asymmetrical 25° vertical dispersion via proprietary waveguides

• Advanced FIR filtering ensures linear frequency response and crystal-clear audio across all frequencies

• Ideal for bass-heavy music like EDM, hip-hop, and house

🎵 Ground-Shaking Bass Performance

• 18” Subwoofer delivers powerful, tight low-end down to 28 Hz

• Industry-leading 4” voice coil and laminar-flow vent design for extended low-frequency clarity and massive output

• Lighter than some competing 15” subwoofer systems, offering more power with less bulk

⚡ Professional Connectivity Options

• 2 × XLR/TRS combo Mic/Line inputs

• 1 × Stereo XLR/RCA Line input

• AES/EBU digital input/output for digital signal integration

• Bluetooth® Stereo Streaming

• QuickSmart Link for system expansion

• Controlled via QuickSmart Mobile App – manage levels, EQ, and presets wirelessly

🚀 Ultra-Fast Setup with 3-2-1 System

EVOLVE 90 features Electro-Voice’s trusted 3-2-1 quick assembly system:

• 3 components

• 2 clicks

• 1 complete system

Setup and teardown take less than a minute, making it ideal for mobile performers and fast-paced production teams.

🎒 Lightweight & Road-Ready Design

Despite its powerful 18” subwoofer, the EVOLVE 90 is lighter than many 15” competitor systems, thanks to:

• Neodymium drivers

• Aluminum distance pole

• Lightweight, rugged cabinet construction

Included: padded carrying case for column & pole
Optional: transport dolly for easy mobility

🎨 Sleek, Iconic Design in Black or White

EVOLVE 90’s modern aesthetic and compact footprint make it the perfect fit for any environment – from high-end weddings to nightclubs and conference venues. Choose black or white to match your brand or event theme.

✅ Key Features at a Glance:

• 134 dB SPL for powerful, distortion-free sound

• 120° × 25° waveguide coverage

• Extended bass response to 28 Hz

• 2000W total Class-D amplification

• 18” subwoofer with 4” coil and laminar vent

• Bluetooth® streaming + app control

• Quick 3-2-1 assembly system

• Lightweight and portable

• Available in black or white

EVOLVE 90 redefines what a portable column PA can do. Big bass. Big sound. Small footprint. Built for professionals. Ready for any gig.

EVOLVE 90 Column Loudspeaker – Technical Specifications

Speaker Components

• Column Array: 8 × 4.7” neodymium drivers for wide, detailed mids and highs

• Subwoofer: 1 × 18” high-output subwoofer for deep, punchy bass

• Voice Coil: 4” subwoofer voice coil for high power handling and extended low-frequency response

Audio Performance

• Frequency Response: 35 Hz – 18 kHz

• Frequency Range: 28 Hz – 20 kHz

• Maximum SPL: 134 dB peak

• Coverage Pattern: 120° horizontal × 25° vertical via waveguide-formed dispersion

• Amplifier Power: 2000W total Class-D bi-amplified

  • LF Channel: 1000W

  • HF Channel: 1000W

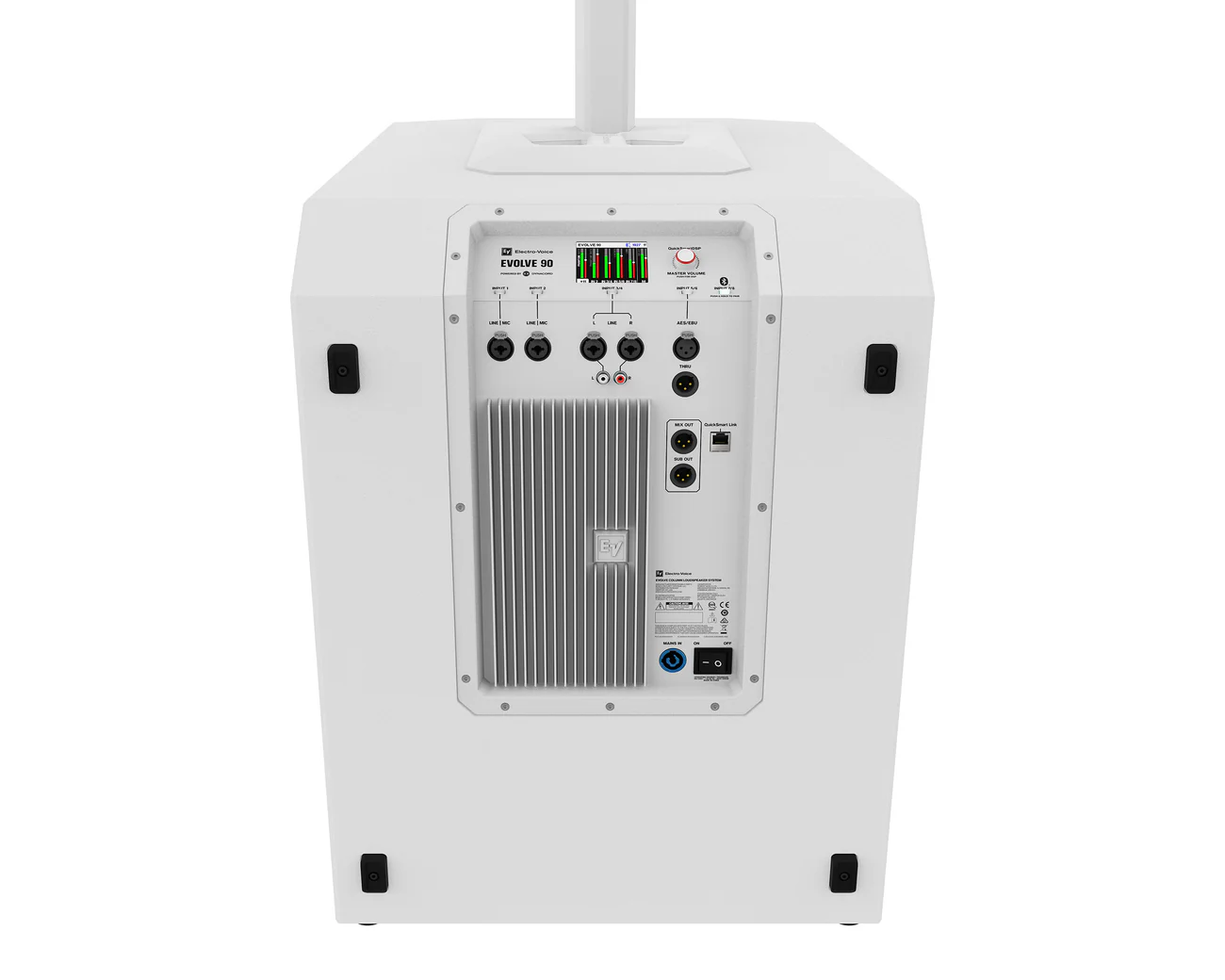

Connectivity

• 2 × XLR/TRS combo Mic/Line inputs

• 1 × Stereo RCA/XLR Line input

• AES/EBU digital input/output

• Bluetooth® stereo streaming

• QuickSmart Link for linking multiple EV speakers

• PowerCON® power connection for secure, pro-level operation

Design & Portability

• Total Weight: 44.5 kg / 98.1 lbs

• 3-piece system with aluminum distance pole

• Lightweight yet durable materials for easy transport

• Available in Black or White finish

• Includes padded carry bag for column & pole

• Optional transport dolly for enhanced portability

Engineered for professional DJs, live sound engineers, touring acts, and event production teams, the EVOLVE 90 combines massive power, exceptional sound quality, and quick setup — making it the ultimate column PA system in its class.
