Description

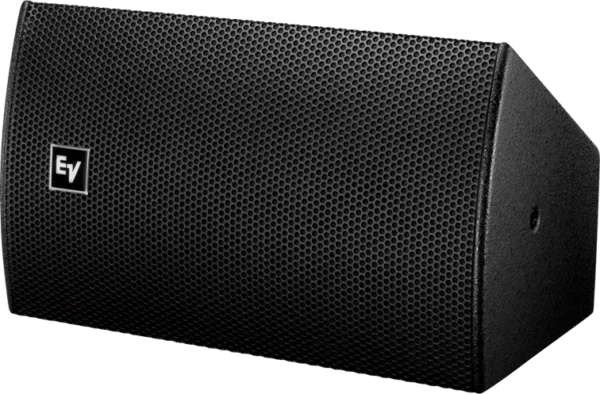

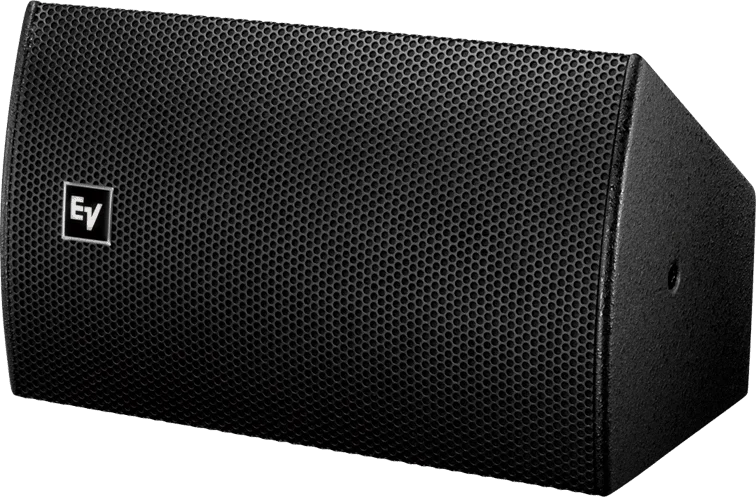

Electro-Voice EVU-1082/95 Ultracompact 2 “Way w/single 8″ Woofer
The Electro-Voice EVU-1082/95 is an ultracompact
2-way loudspeaker
designed for high-quality sound in space-constrained environments. It features a single 8” woofer and a high-frequency compression driver, delivering clear and balanced audio across a wide frequency range. Ideal for installations in smaller venues such as restaurants, conference rooms, and retail spaces, the EVU-1082/95 combines compact size with exceptional performance. Its robust construction ensures durability, making it a reliable choice for professional audio applications.
Explore our more similar products like
NEXT PROAUDIO PFA 12.18 COMPLETE SELF POWERED ACTIVE PLUG & PLAY BIG RIG DJ PA SYSTEM
EVU-1082/95
Ultracompact 2 “way w/single 8″ woofer
Sonically matched to all EV-Innovation lines
Sophisticated 18-dB-octave passive crossover/EQ networks
Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
Optional Neutrik Speakon(R) connector panel
One 1.3-inch (33 mm) diaphragm I compression driver
U-bracket included
Optional 70 V and 100 V operation
OmniMount(R)-compatible rear mounting points

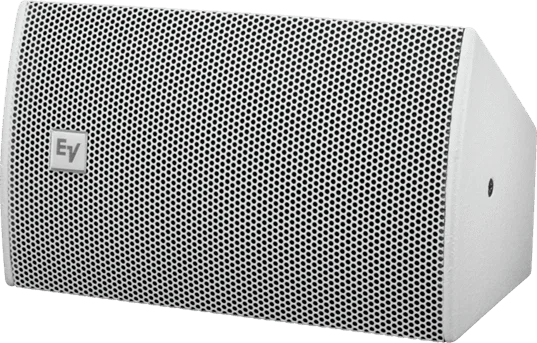

Available in black or white (interior use)
Ultracompact 10 x 16 inch enclosure
90 x 50 rotatable waveguide
Ultra-high power handling for size: 175 W continuous
123 dB Max SPL
Asymmetrical trapezoidal enclosure design
Compatible with OmniMount
SPECIFICATIONS
Frequency Range (-10 dB)
65 – 20000kHz (Half Space)
Suspension
(6) M8 threaded points
Weatherized
No
SPECIFICATIONS
Minimum Impedance
6ohm
HF Transducer
One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
Speaker Type
Full-Range, Two-Way
Frequency Response (-3 dB)
110 – 16000Hz (Half Space)
Max. SPL/1m (calc)
123dB
Coverage (Nominal -6 dB) H
90
Coverage (Nominal -6 dB) V
50
LF Transducer
One 8-inch (203 mm) ICT-8-8 woofer
Power Rating
700W
System Power Handling (Continuous/Program/Peak)
175//700Watts (EIA RS-426A (eight hours))
Connector Type
4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
Enclosure Material
9-ply hardwood plywood
Grille
18-gauge steel with cloth behind
Available Color
Black or white
Height
247mm (9.72″)
Width
409mm (16.1″)
Recommended High-Pass Frequency
90Hz
Depth
237mm (9.33”)
Weight Net
7.4kg (16.31 lbs)
Shipping Weight
10.3kg (22.71 lbs)
Passive Power Handling
700W peak
Nominal Impedance
8ohm
Finish
Textured paint
Waveguide
6 in. x 6 in., rotatable
Axial Sensitivity (SPL, 1 W @ 1 m)
95dB
