Description

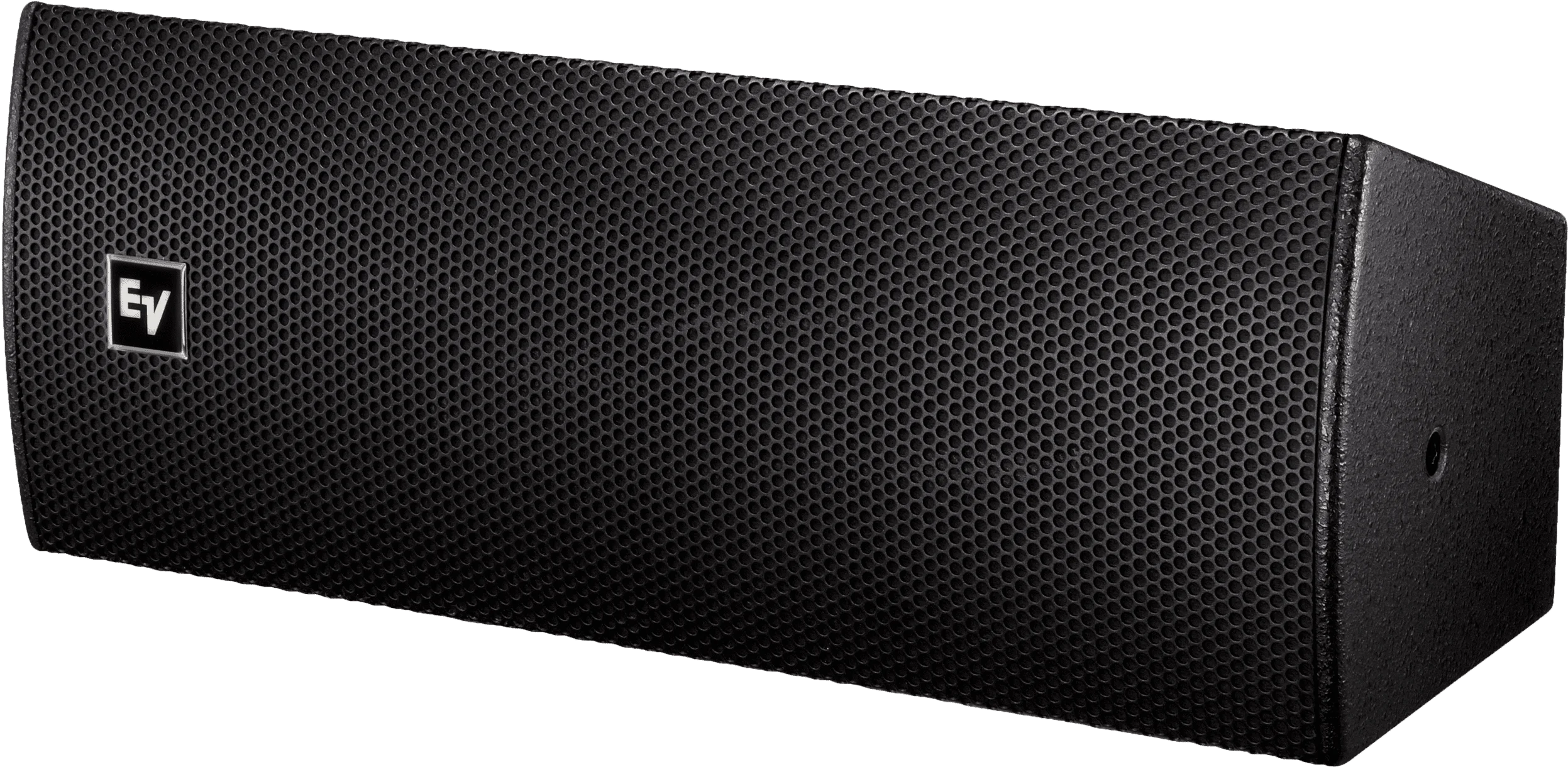

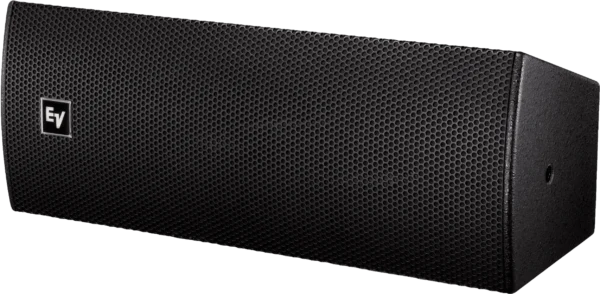

Electro-Voice EVU-2062/95 Ultracompact 2 “Way w/dual 6.5″ Woofers
The Electro-Voice EVU-2062/95 is an ultracompact
2-way loudspeaker
known for its powerful audio performance in compact spaces. Featuring dual 6.5” woofers and a high-frequency compression driver, it delivers clear, detailed sound across a broad frequency spectrum. This makes it ideal for applications where space is limited but high-quality audio is essential, such as small venues, conference rooms, and retail environments. Built with durability in mind, the EVU-2062/95 ensures reliable performance and exceptional sound quality, making it a versatile choice for various professional audio installations.
Explore our more similar products like
Electro-Voice EVU-1082/95 Ultracompact 2 “Way W/Single 8” Woofer
EVU-2062/95
Ultracompact 2 “way w/dual 6.5″ woofers
Sonically matched to all EV-Innovation lines
Sophisticated 18-dB-octave passive crossover/EQ networks
Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
Optional Neutrik Speakon(R) connector panel
One 1.3-inch (33 mm) diaphragm compression driver
U-bracket included
Optional 70 V and 100 V operation
OmniMount(R)-compatible rear mounting points
Available in black or white (interior use)
Ultracompact 8 x 21 inch enclosure
90 x 50 rotatable waveguide
Ultra-high power handling for size: 300 W continuous
125 dB Max SPL
Asymmetrical trapezoidal enclosure design
Compatible with OmniMount
SPECIFICATIONS
Frequency Range (-10 dB)
70 – 20000kHz (Half Space)
Suspension
Six M8 threaded points
Weatherized
No
SPECIFICATIONS
Minimum Impedance
6ohm
HF Transducer
One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
Speaker Type
Full-Range, Two-Way
Frequency Response (-3 dB)
100 – 16000Hz (Half Space)
Max. SPL/1m (calc)
125dB
Coverage (Nominal -6 dB) H
90
Coverage (Nominal -6 dB) V
50
LF Transducer
Two 6.5-inch (165 mm) ICT-6.5-8 woofers
Power Rating
1200W
System Power Handling (Continuous/Program/Peak)
300//1200Watts (EIA RS-426A (eight hours))
Connector Type
4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
Enclosure Material
9-ply hardwood plywood
Grille
18-gauge steel with cloth behind
Available Color
Black or white
Height
209mm (8.23″)
Width
533mm (20.98″)
Recommended High-Pass Frequency
90Hz
Depth
207mm (8.15”)
Weight Net
11.3kg (24.91 lbs)
Shipping Weight
14.2kg (31.31 lbs)
Passive Power Handling
1400W peak
Nominal Impedance
8ohm
Finish
Textured paint
Waveguide
6 in. x 6 in., rotatable
Axial Sensitivity (SPL, 1 W @ 1 m)
94dB ((1W/1M))
