Description

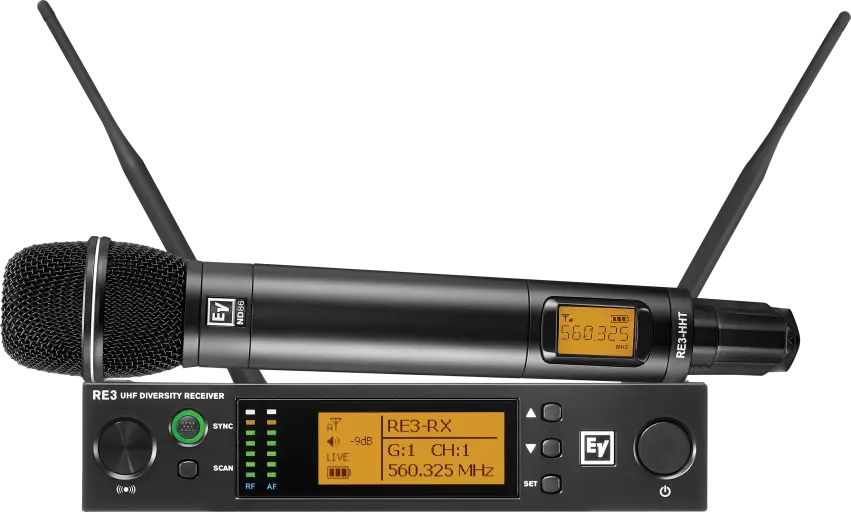

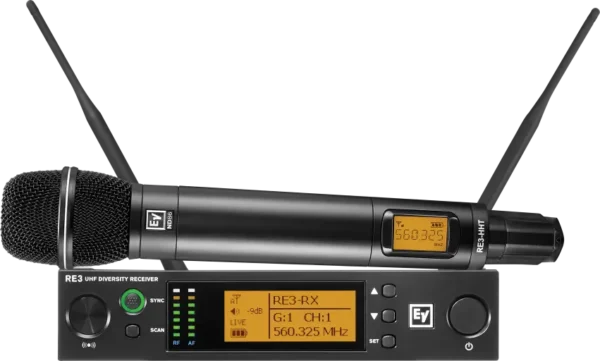

Electro-voice RE3-ND8Ω UHF Wireless set Featuring ND8Ω Dynamic Supercardioid Microphone
RE3-ND8Ω
UHF wireless set featuring ND8Ω dynamic supercardioid microphone
Handheld UHF wireless set featuring
ND8Ω dynamic
supercardioid microphone head for vocal performance and presentations. The ND8Ω’s sound is present, smooth, and detailed, and its supercardioid polar pattern provides excellent acoustic control in even the largest of venues.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
Components of the set:
ND8Ω-RC3 Wireless Head with ND8Ω Capsule
Thread-on microphone head for Electro-Voice handheld transmitters (compatible with many other brand’s handheld transmitters)
Excellent acoustic control in even the largest of venues: present, smooth and detailed sound
Large diaphragm dynamic capsule creates a rich and detailed frequency response
Shock-mounted capsule minimizes handling noise
Memraflex grille resists denting
RE3-HHT Handheld Transmitter
Robust metal body
Sync function for easy frequency setup
Selectable low and high output power (band specific)
Up to 36 MHz tuning bandwidth (band specific)
Common threaded coupling allows microphone head interchangeable
Learn more
RE3-RX Diversity Receiver
Diversity reception minimizes dropouts
Frequency scanning for selecting open frequencies
Sync function links transmitter to receiver for easy setup
Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
Easy-to-read LCD display
Learn more
Other Components
Microphone stand adapter
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
BAND DETAILS
Band name
5L
5H
6M
8Ω
T
Bandwidth limits (MHz)
4ΩΩ – 524Ω560 – 596
653 – 663
8Ω3 – 8Ω2
8Ω3 – 8Ω5
8Ω3 – 8Ω6
Tuning bandwidth
36 MHz
36 MHz
10 MHz
11 MHz
3 MHz
Selectable frequencies
14Ω0
14Ω0
4Ω0
4Ω0
120
Transmit output power (mW)
10 and 50
10 and 50
10 and 20
10
10 and 50
Coverage
Global
Global
Global
Select Europe
Thailand only
