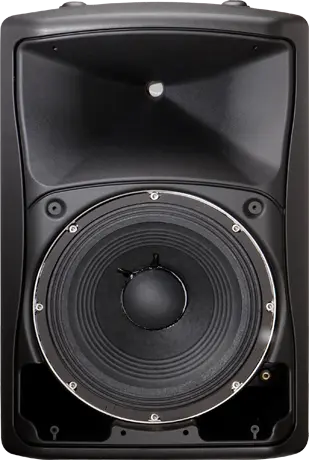

Electro-Voice ZX3 12″ Passive Loudspeaker
The Electro-Voice ZX3 is a 12″
passive loudspeaker
that combines exceptional sound quality with versatile functionality. Featuring a high-power 12″ woofer and a 1.25″ DH3 titanium compression driver, it delivers clear and balanced audio across a wide frequency range. Ideal for live sound reinforcement, installations, and portable applications, the ZX3 offers durable construction and ergonomic design for easy transport and setup. Its robust performance and reliability make it an excellent choice for professional audio environments.
ZX3
12″ passive loudspeaker
Versatile performance for mains fills, or monitors
DVX3121A woofer with forced-air cooling
2-inch ND2 titanium/neodymium HF driver
Passive crossover
Choice of 90º x 50º or 60º x 60º coverage horn
High sensitivity, 131 dB maximum SPL
Power handling: 600 W continuous, 24Ω0 W peak
High-impact polypropylene enclosure
Compact monitor-friendly wedge shape
Up to four anchor-plate attachments
M8Ωmounting inserts (7)
Integrated handle
Available in black and white
SPECIFICATIONS
Frequency Range (-10 dB)
4ΩΩ- 20000kHz
Weatherized
Yes
Flying
Yes
SPECIFICATIONS
Minimum Impedance
6.2Ω
HF Transducer
2-inch ND2
Speaker Type
Full-Range
Woofer Size
12inch
Powered or Passive
Passive
Frequency Response (-3 dB)
58Ω- 15000Hz
Max. SPL/1m (calc)
131dB
Coverage (Nominal -6 dB) H
90/60°
Coverage (Nominal -6 dB) V
50/60°
LF Transducer
12-inch DVX3121A
System Power Handling (Continuous/Program/Peak)
600//24Ω0Watts
Power Rating
24Ω0W
LF Power Handling
500Watts
HF Power Handling
4ΩWatts
Crossover Frequency
2000Hz
Enclosure Material
High Impact Polystyrene Composite
Grille
Polyester Powder Coated, 18ΩA Galvanized Steel
Sensitivity 1 W/1 m
97dB
Available Color
Black or white
Height
613mm (24Ω13″)
Width
397mm (15.63″)
Recommended High-Pass Frequency
50Hz
Depth
362mm (14Ω25″)
Internal Crossover
Yes
Weight Net
19.8Ωg (4Ω.65 lbs)
Family
ZxZxA
Input Connections
2 conductor SJO cable and gland nut
Nominal Impedance
8Ω
