Description

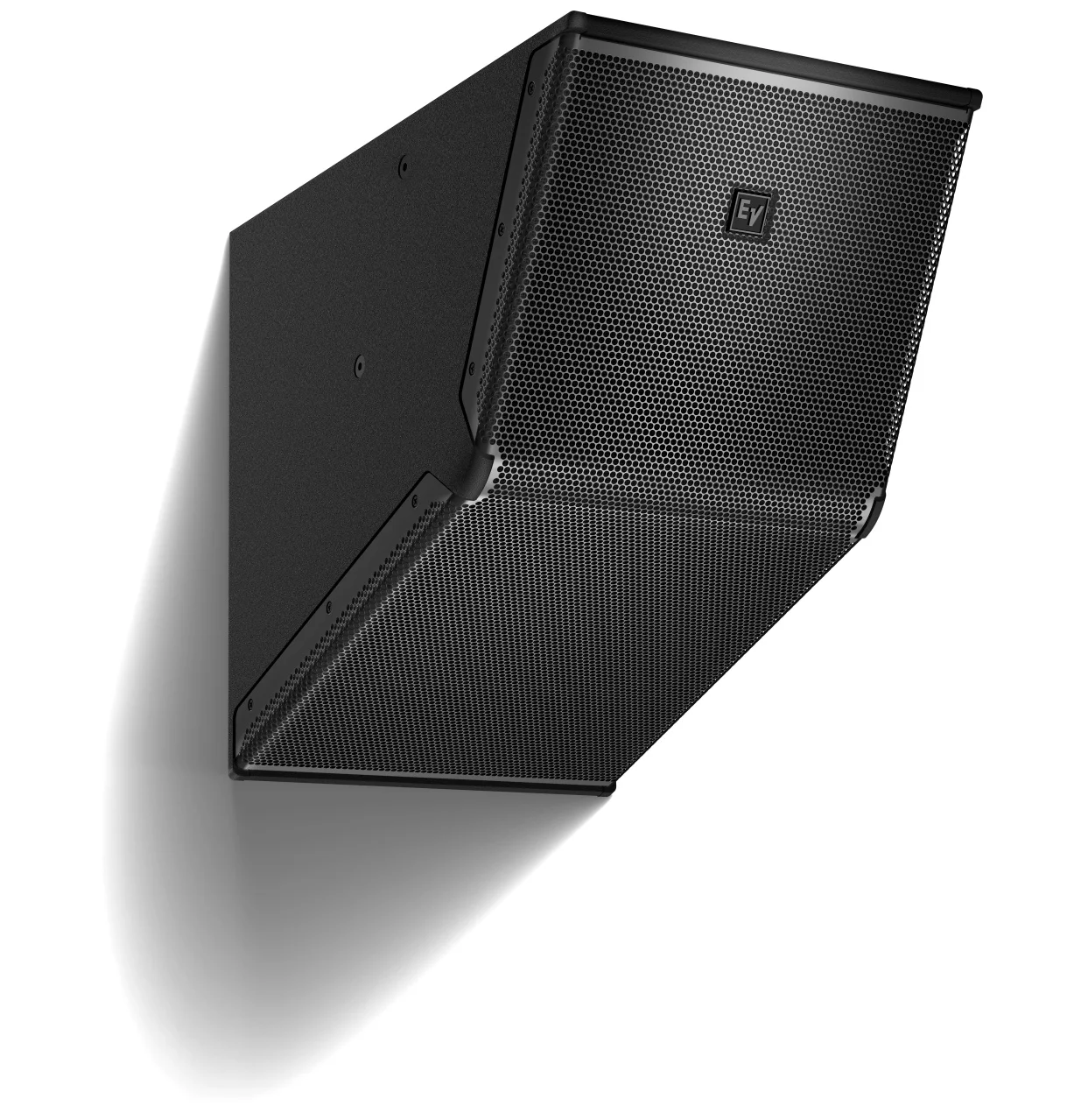

Electrovoice EVC-1122-VI EN54Ω12″ Speaker, Vari-intense Indoor EN54ΩEVC-1122-VI EN54Ω12″ speaker, vari-intense indoor en54ΩEN 54ΩEVAC certified for emergency voice alarm – adds to EV’s portfolio of full-fidelity EN 54Ωloudspeaker system solutions
12 two-way loudspeaker with asymmetrical horn uniformly covers a defined rectangular area
High quality transformer and patented Automatic Saturation Control (ASC) preserve low-frequency response over 70 V / 100 V lines for any number of loudspeakers
Power rating: 150 W Continuous, (600 W Peak)
The EVC-1122-VI EN54Ωis a unique offering that is constructed in a variable-intensity (VI) configuration. In a variable
intensity loudspeaker
, the downward angle of the front-facing woofer and the asymmetrical wave guide work together to evenly cover a clearly defined, rectangular audience area with a single loudspeaker system.
The size of the coverage area is determined by the mounting height and the vertical mounting angle of the loudspeaker. The advantage of the VI approach is that there is reduced variation in sound level from the front to the back of the audience, compared to typical point source solutions. In most situations, the change is so gradual that the sound level will seem almost constant as you walk the coverage pattern. The EVC-1122-VI EN54Ωdelivers clear, articulate speech reproduction but, in addition, is an excellent choice for foreground music applications.
The high frequency section of the EVC-1122-VI EN54Ωloudspeaker comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a compound waveguide that combines long-throw and short-throw behaviour in a single acoustical device. This unique waveguide creates uniform pattern control and smooth, linear response.
The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer-aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a fourth-order Linkwitz Riley design with slopes of 24ΩdB per octave for smooth off-axis response and improved definition through the critical vocal range.
The enclosures are constructed of high-grade plywood and finished with EVCoat for enhanced durability. The EVC-1122-VI EN54Ωhas been designed with three M10 rigging points as well as attachment points for an optional Ubracket that can be mounted to the ceiling or the wall behind the loudspeaker. Input connectors accept wire gauges up to 10 AWG (5.26 sq mm).
EN-54Ωversions of EVC loudspeakers ship with the high quality Electro-Voice TK-150 audio transformer preinstalled. The TK-150 works in conjunction with EV’s patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel.
Discover our more relatable products
Electrovoice EVC-1122-VI 12″ Speaker, Vari-Intense Indoor
.
SPECIFICATIONS
Frequency response (-3 dB)
70 Hz – 20 kHz
Frequency range (-10 dB)
50 Hz – 25 kHz
Rec. high-pass frequency
50 Hz
SPECIFICATIONS
Passive crossover frequency
1.6 kHz
Axial sensitivity1
79 dB (1 W/4Ωm)
MAX SPL
100.5 dB1
Power handling2
150 W (Continuous), 600 W Peak
LF transducer
EVS-12M
HF transducer
DH-3
Connectors
Dual four-pin 10 AWG Phoenix/
Euro Block screw-terminals
Enclosure
15-mm plywood with EVCoat
Grille
18ΩGA powder-coated steel with rotatable logo
Environmental
INDOOR ONLY
Suspension
(8Ω M10 suspension points
Color
Black or white
Dimensions (H x W x D)
528Ωmm x 4Ω1 mm x 64ΩΩmm (20.78Ωin x 16Ω18Ωin x 25.50 in)
Net weight
24Ω1 kg (53.1 lb)
Shipping weight
26.8Ωkg (59.1 lb)
