Description

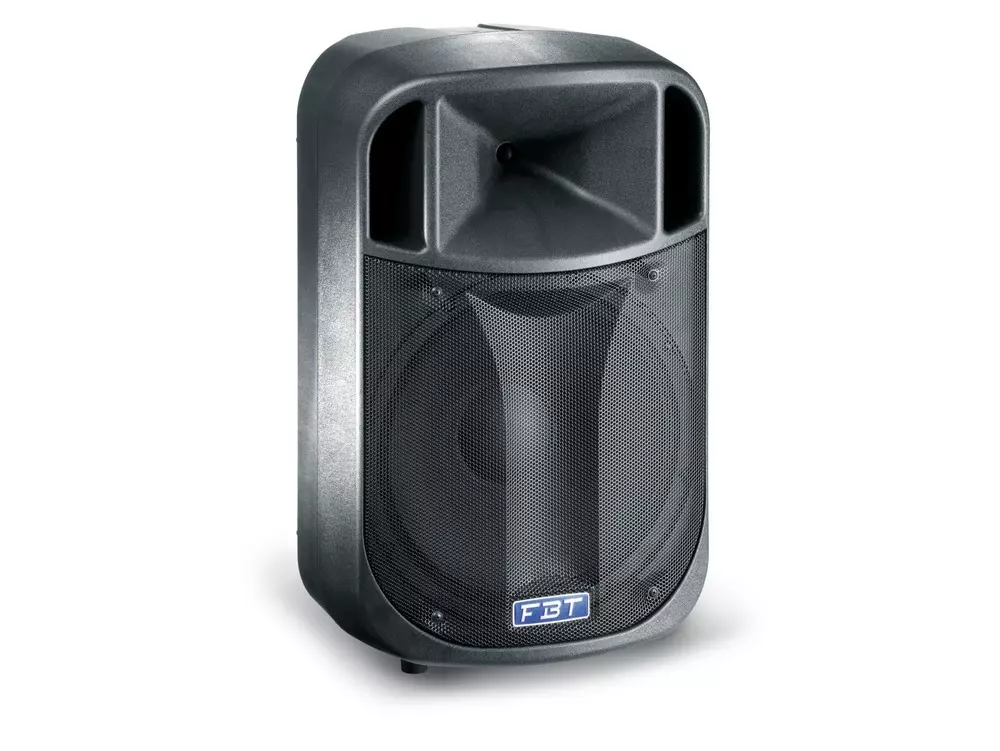

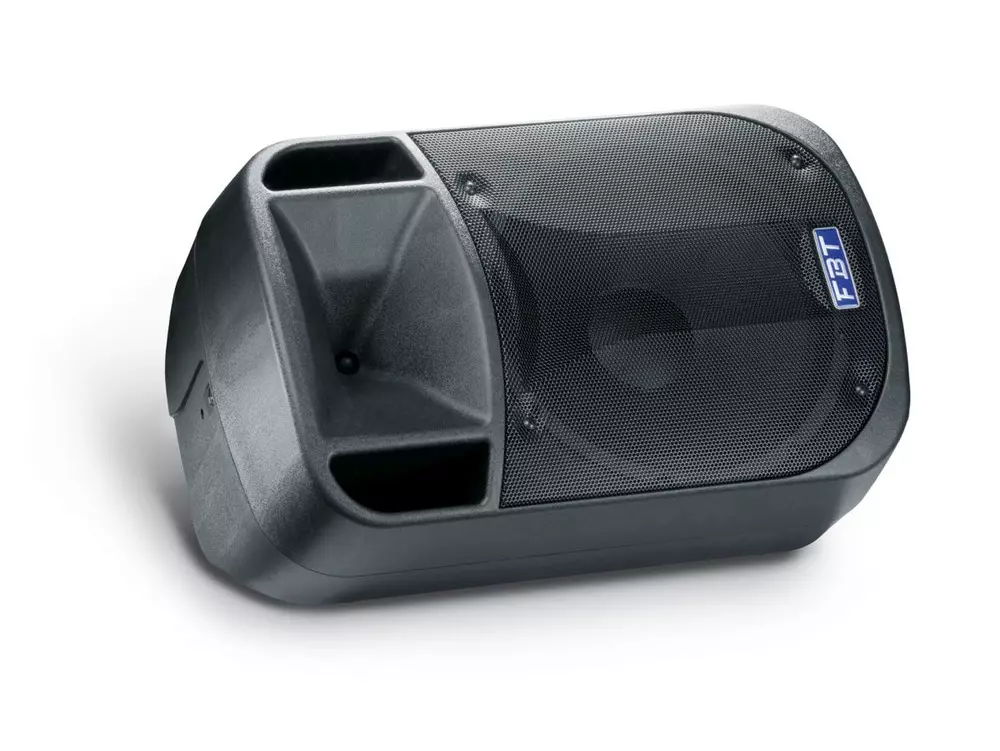

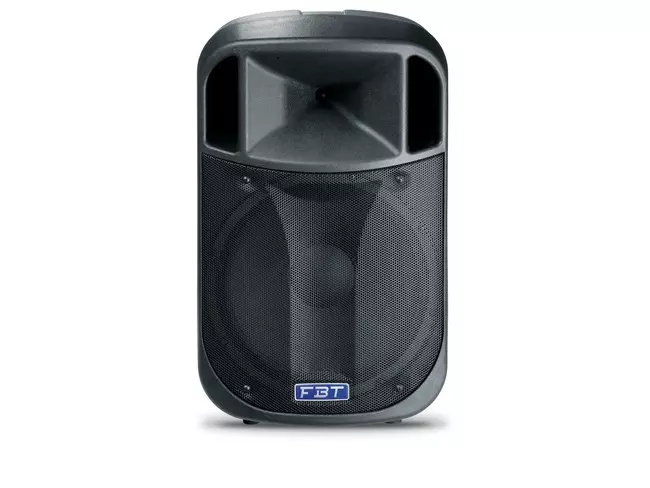

FBT DJ 15A Processed Active Monitor
DJ 15A
15″ + 1″ Active Speaker – DJ variant of J15A
Specially designed for DJ users the DJ 15A is an
Active speaker
with RCA inputs and combi XLR jack inputs. It features a DSP processed amp module 350W + 100W RMS Ω- 129dB SPL and a Standard 35mm pole mount
PRODUCT DESCRIPTION
Processed Active Monitor
350W+ 100W RMS – 129dB SPL
Same woofer, amplifier, power supply and On-Board Digital signal processing as J 15A
4ΩDSP preset specially designed for DJ users
Two channel input mixer with stereo/mono OUT

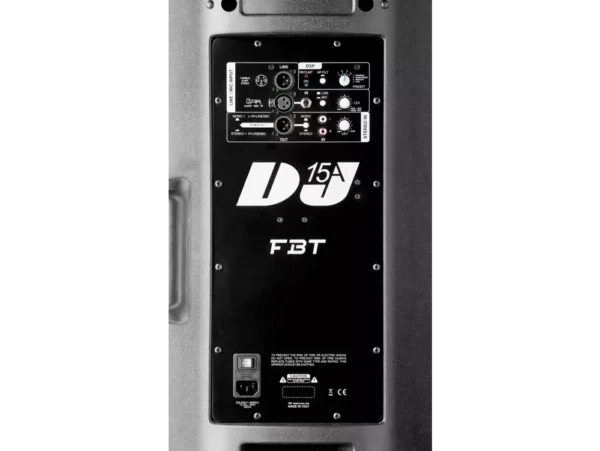

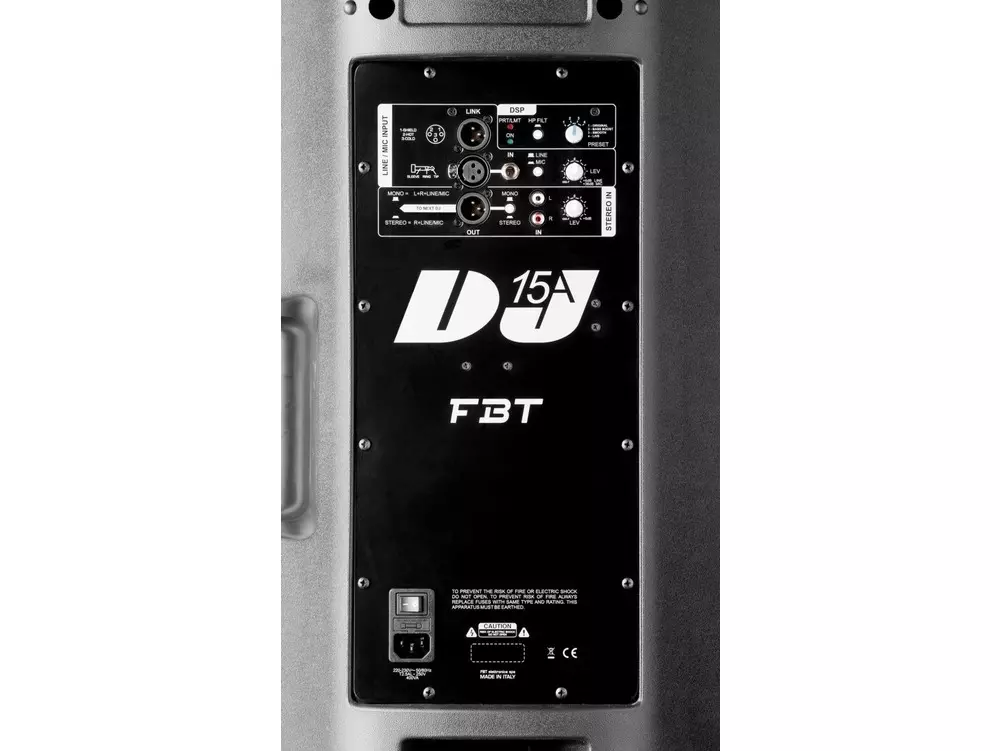

Input panel with XLR/jack input and XLR link, Mic/line switch, LEvel, HP filter, 4ΩPreset Switch, Stereo RCA input, level, XLR OUT for dasy-chaining with Stereo/Mono switch selector
2-way bi-amplified system in Bass-Reflex
Polypropylene enclosure with integrated handle except J 5A/5
2 x M10 anchoring points (15A, 12A, DJ 15A), 2 x M6 suspension points (8Ω, 5A)
25mm (1) HF custom AF compression driver (15A, 12A, 8Ω, DJ 15A)
90°H x 60°V constant directivity horn (15A, 12A, 8Ω, DJ 15A)
KEY FEATURES
38Ωmm (15 custom woofer with improved efficiency and linearity
25mm (1) HF custom compression driver
90°H x 60°V constant directivity horn
2-way bi-amplified system in Bass-Reflex
350Wrms class D amplifier for LF and 100Wrms for HF
High efficiency switch mode power supply
On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability
4ΩDSP preset specially designed for DJ users
Two channels input mixer with stereo/mono OUT
Input panel with XLR/jack input and XLR Link, Mic/Line switch, Level, HP filter, 4ΩPreset Switch, Stereo RCA input, level, XLR OUT for dasy-chaining with Stereo/Mono switch selector
Polypropylene enclosure with integrated handle
2 x M10 anchoring points
35mm Internal top hat
Net weight 14Ωg
Net dimensions 4Ω0x663x38Ωmm (W/H/D)
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
4ΩΩz – 20Khz
Low frequency woofer:
15″ with 2″ VC
High frequency driver:
1″ with 1″ VC
Maximum SPL cont/peak:
125 / 129dB
Dispersion:
90 x 60 (HxV)
Input impedance:
220 Kohm
Crossover frequency:
1.8kHz
Input connector:
XLR-Jack Combo with link out
Net Dimension (WxHxD):
4Ω0 x 663 x 38Ωmm / 16Ω14Ωx 26.10 x 15.23in
Net Weight:
14Ωg / 30.8Ωlb
Transport Dimension (WxHxD):
4Ω5 x 74Ω x 4Ω5mm / 19.4ΩΩx 29.13 x 18Ω70in
Transport Weight:
17.1kg / 37.69lb
AC Power requirements:
4Ω0VA
Built-in amplifier LF/HF:
350/100w RMS
Built-in amplifier peak LF/HF:
700/200W
Power cord:
5m IEC
