Description

FBT J 12 Passive Speaker
J 12

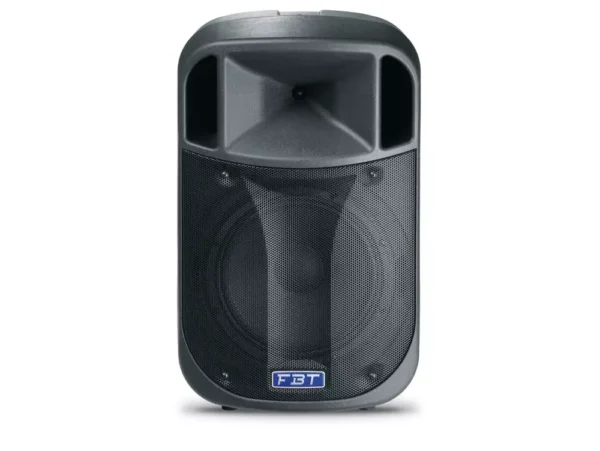

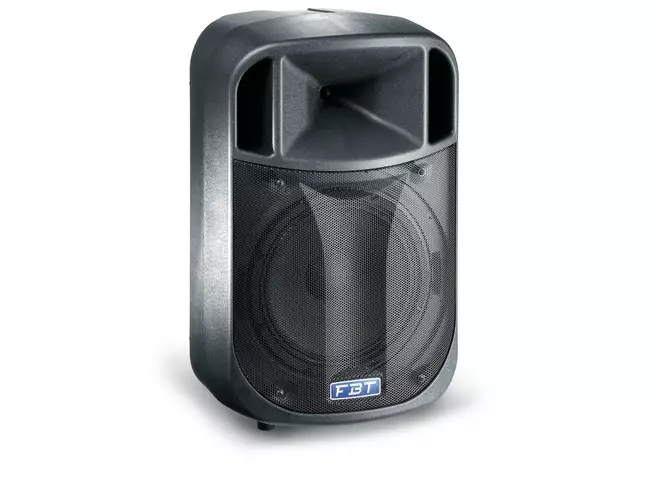

J 12 Passive Speaker
The J12 is a passive speaker featuring a 12″ Driver and a 1″ Compression driver This italian made speaker features a rugged gas injected molded polypropylene cabinet with Speakon connections and a standard 35mm pole mount
*Available in Black or White
PRODUCT DESCRIPTION
Product Description
The FBT
J12 series
speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBT J12 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. With the use of optional accessories the FBT J12 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.
The FBT J12 is of two way design incorporating an 12″ low frequency woofer and 1″ HF custom driver. Cabinet dispersion is 90°H x 60°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 2kHz. With a frequency range of 55Hz – 20kHz the FBT J12 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 127dB. A front face steel grille protects the speaker from external damage.
Ideal for fixed installations the FBT J12 speaker system have an impedance of 8ΩOhm. The two M10 fly points built into the cabinets along with the optional mounting brackets allow the FBT J12 speakers to be surface mounted on walls or ceiling. For portable or fixed use the FBT J12 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4Ω
KEY FEATURES
Key Features
2-way passive sound reinforcement system
Polypropylene enclosure
1 x 12″ custom woofer
1 x 1″ high frequency driver
300W RMS recommended amplifier
150W long term power
600W short term power IEC 268Ω5
2 x M10 suspension points
Internal passive crossover filter
Input panel with
2 x Speakon NL4ΩCompletely manufactured in Italy
Applications
Band P.A.
Personal monitor
Small theatres
Auditoriums
Piano bar
DJ Stage monitor
Conference rooms
Fixed installations in live clubs Pubs Gyms
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
55Hz – 20KHz -6dB
Low frequency woofer:
12″ – 2″ Voice Coil
High frequency driver:
1″ – 1″ Voice Coil
Maximum SPL cont/peak:
123 / 127dB
Dispersion:
90 x 60 Degrees H x V
Crossover frequency:
2 KHz
Input connector:
2 Speakon NL4ΩIn & Thru
Net Dimension (WxHxD):
4Ω0 x 663 x 38Ω mm
Net Weight:
14Ω1 KG
Transport Dimension (WxHxD):
4Ω5 x 74Ω x 4Ω5 mm
Transport Weight:
17.2 KG
Recommended Amplifier:
300w RMS
Long term power:
150w
Short term power:
600w
Recommended HP filter:
4ΩHz -24ΩBoct
Sensitivity (@1W/1m):
98ΩB
Impedance:
8ΩOhm
