Description

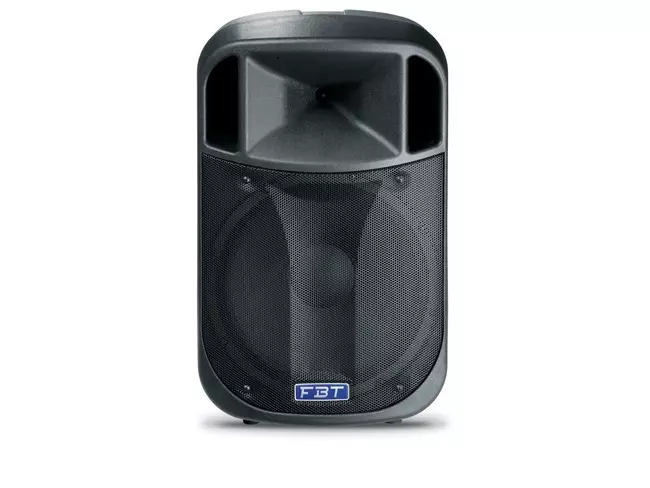

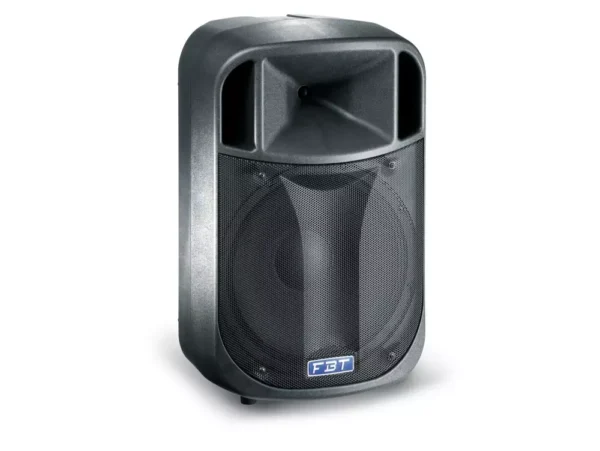

FBT J 15A Processed Active Monitor
J 15A
15″ + 1″ Active Speaker
The J15a is an
Active speaker
featuring a 15″ Driver and a 1″ Compression driver This italian made speaker features a rugged gas injected molded polypropylene cabinet with a DSP processed amplifier delivering 350W+ 100W RMS Ω- 129DB SPL and a standard 35mm pole mount
PRODUCT DESCRIPTION
Processed Active Monitor
350W+ 100W RMS – 129DB SPL
Applications
Band P.A.
Personal monitor
Small theatres
Auditoriums
Piano bar
DJ
Stage monitor
Conference rooms
Fixed installations in live clubs
Pubs
Gyms
The FBT J15A series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBTJ15Aseries speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.

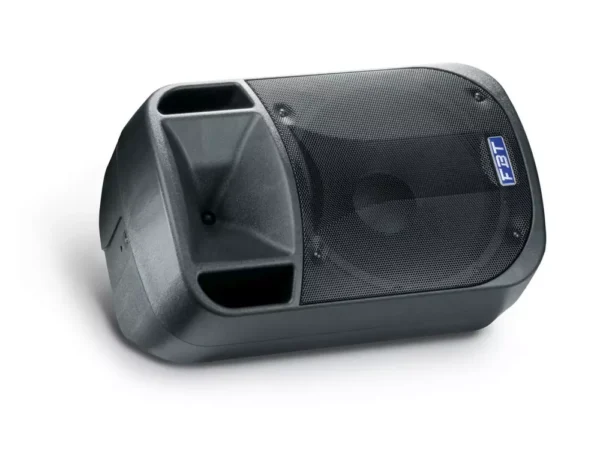

The asymmetrical shape of the FBTJ15Acabinet also allows use as a powered floor stage monitor. The FBTJ15Ais of two way design incorporating an 15″ low frequency woofer and 2″ HF custom compression driver coupled to a 90°H x 60°V horn. The active internal crossover is at a fixed frequency of 1.8kHz. With a frequency range of 4ΩΩz – 20kHz the FBT J15A speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 129dB. A front face steel grille protects the speaker from external damage.
The bi-amplified FBT J15A active speaker feature a 350W RMS low frequency amp and a 100W RMS high frequency amp. The control panel features a level control, HP filter switch, mic/line selector, preset switch (original, floor/vocal, boost/lounge, club/dj)) led power on, protection/limiter led indicators, a balanced XLR and Jack in, a balanced XLR link out.
The two M10 fly points built into the cabinet along with the optional mounting brackets allow the FBT J15Aspeaker to be surface mounted on walls or ceilings. Astandard 1,38Ω speaker stand socket allows the FBTJ15Ato be mounted on speaker stand
KEY FEATURES
2-way processed active system
Polypropylene enclosure
1 x 15″ custom woofer
1 x 1″ neodymium silk dome tweeter
300W/70W built-in amplifier cont. RMS LF/HF
350W/100W built-in amplifier max. RMS LF/HF
700W/200W built-in amplifier max. peak LF/HF
2 x M10 suspension points
4ΩDSPpresets
Completely manufactured in Italy
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
4ΩΩz – 20kHz
Low frequency woofer:
15″ with 2″ VC
High frequency driver:
1″ with 1″ VC
Maximum SPL cont/peak:
125 / 129dB
Dispersion:
90 x 60 (HxV)
Input impedance:
22 Kohm
Crossover frequency:
1.8kHz
Input connector:
XLR-Jack Combo with link out
Net Dimension (WxHxD):
4Ω0 x 663 x 38Ωmm / 16Ω14Ωx 26.10 x 15.23in
Net Weight:
14Ωg / 30.8Ωlb
Transport Dimension (WxHxD):
4Ω5 x 74Ω x 4Ω5mm / 19.4ΩΩx 29.13 x 18Ω70in
Transport Weight:
17.1kg / 37.69lb
AC Power requirements:
4Ω0VA
Built-in amplifier LF/HF:
350/100w RMS
Built-in amplifier peak LF/HF:
700/200W
Power cord:
5m IEC
