Description

FBT J 5 Sound Reinforcement Monitor
J 5
Passive 5″ + 1″

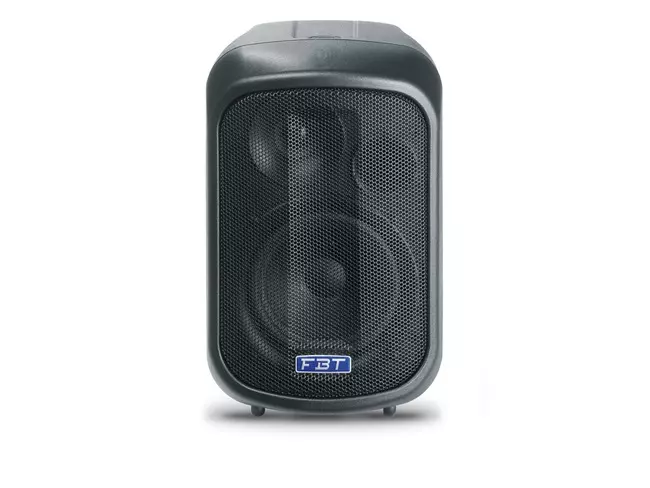

The Black J5 is a passive speaker featuring a 5″ Woofer and a 1″ Sik Dome tweeter. This italian made speaker features a rugged gas injected molded polypropylene cabinet and Input panel with jack and terminal connector. The 16Ω impedance allows multiple speakers to be connect to a single amplifier.
Available in Black or White
PRODUCT DESCRIPTION
Sound Reinforcement Monitor
The FBT J5 series combines lightweight yet durable gas-injected molded polypropylene construction with a sleek design that blends into any decor. Suitable for fixed installations, these speakers can be mounted on mic stands for nearfield monitoring, live sound, and studio use. The two-way design includes a 5″ woofer and a 1″ custom compression driver, providing 90°H x 90°V coverage. The internal crossover is set at 3.5kHz, with a frequency range of 90Hz – 20kHz, delivering high-fidelity sound for speech and music with a maximum SPL of 117dB.

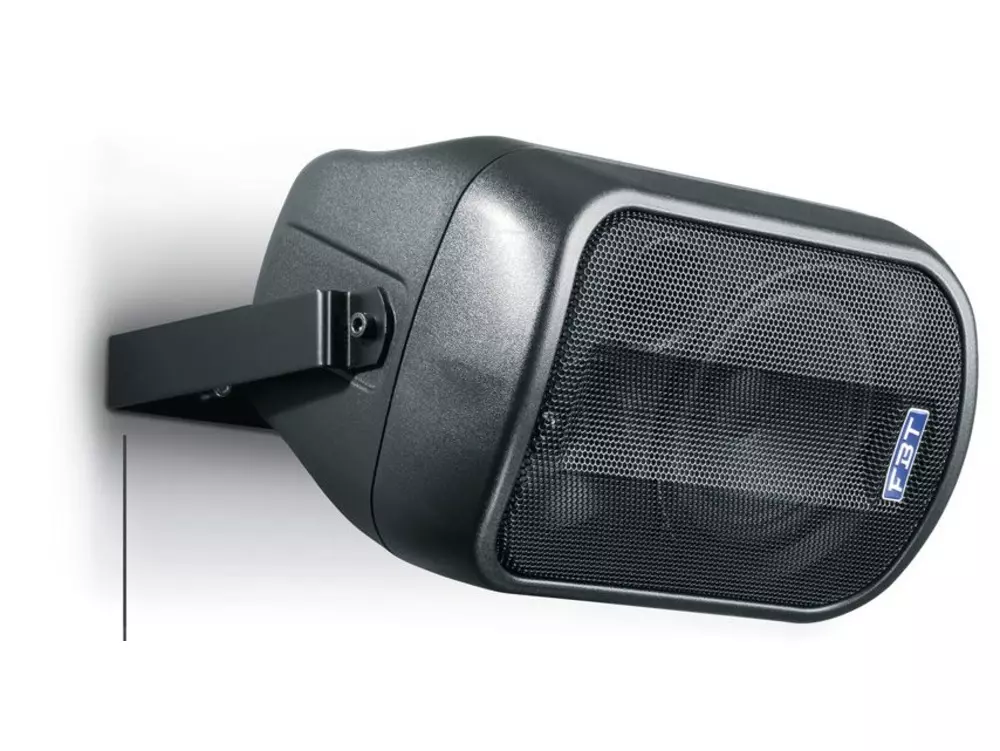

The 16Ω impedance allows four FBT J5 speakers per channel, for a total of eight speakers with a stereo amplifier operating at 4Ω. Two M6 fly points enable wall or ceiling mounting, and optional adapters allow vertical mounting on mic stands. The rear panel features a 1/4Ω input jack and push pin terminal connectors, internally connected in parallel for flexible wiring options. A steel grille protects the speaker from damage. Ideal for small fixed installations, the FBT
J5
offers versatile and reliable performance for various audio applications.
KEY FEATURES
2-way passive sound reinforcement system
Polypropylene enclosure
1 x 5″ custom woofer
1 x 1″ neodymium silk dome tweeter
8ΩW RMS recommended amplifier
4ΩW long term power
16ΩW short term power IEC 268Ω5
2 x M6 suspension points
Internal passive crossover filter
Input panel with jack and terminal connector
Available in white color
Completely manufactured in Italy
Applications
Band P.A.
Personal monitor
Small theatres
Auditoriums
Piano bar
DJ
Stage monitor
Conference rooms
Fixed installations in live clubs
Pubs
Gyms
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
90Hz – 20kHz
Low frequency woofer:
5″ with 1″ VC
High frequency driver:
1″ Dome Tweeter
Maximum SPL cont/peak:
114Ω117 dB
Dispersion:
90 x 90 (HxV)
Input impedance:
16Ωhm
Crossover frequency:
3.5kHz
Input connector:
Jack + Terminal
Net Dimension (WxHxD):
170 x 275 x 18Ωmm / 6.69 x 10.8Ω x 7.08Ωn
Net Weight:
3.4Ωg / 7.4Ωlb
Transport Dimension (WxHxD):
24Ω x 34Ω x 235mm / 9.4Ω x 13.58Ωx 9.25in
Transport Weight:
4Ω2kg / 9.25lb
