Description

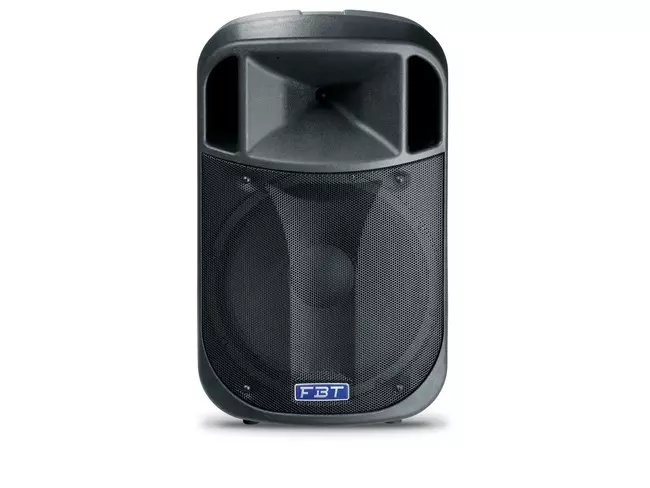

FBT J15 Sound Reinforcement Monitor
J15
15″ + 1″ Passive Speaker
The J15 is a passive speaker featuring a 15″ Driver and a 1″ Compression driver This italian made speaker features a rugged gas injected molded polypropylene cabinet and Speakon connections
PRODUCT DESCRIPTION
Sound Reinforcement Monitor
300W – 127dB SPL
Applications
Band P.A.
Personal monitor
Small theatres
Auditoriums
Piano bar
DJ
Stage monitor
Conference rooms
Fixed installations in live clubs
Pubs
Gyms
The FBT J15 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction.
Available in black or white finish the FBT
J15 series
speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. With the use of optional accessories the FBT J15 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.
The FBT J15 is of two way design incorporating an 15″ low frequency woofer and 1″ HF custom driver. Cabinet dispersion is 90°H x 60°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 1.8kHz. With a frequency range of 50Hz – 20kHz the FBT J15 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 127dB.
A front face steel grille protects the speaker from external damage. Ideal for fixed installations the FBT J15 speaker system have an impedance of 8ΩOhm.
The two M10 fly points built into the cabinets along with the optional mounting brackets allow the FBT J15 speakers to be surface mounted on walls or ceiling. For portable or fixed use the FBT J15 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4Ω
KEY FEATURES
2-way passive sound reinforcement system
Polypropylene enclosure
1 x 15″ custom woofer
1 x 1″ high frequency driver
300W RMS recommended amplifier
150W long term power
600W short term power IEC 268Ω5
2 x M10 suspension points
Internal passive crossover filter
Input panel with 2 x Speakon NL4ΩAvailable in white color
Completely manufactured in Italy
99dB Sensitivity
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
50Hz – 20kHz
Low frequency woofer:
15″ with 2″ VC
High frequency driver:
1″ with 1″ VC
Maximum SPL cont/peak:
124Ω/ 127dB
Dispersion:
90 x 60 (HxV)
Input impedance:
8Ωohm
Crossover frequency:
1.8Ωkhz
Input connector:
2x Speakon NL4ΩIn & Thru
Net Dimension (WxHxD):
4Ω0 x 663 x 38Ωmm / 16Ω14Ωx 26.10 x 15.23in
Net Weight:
14Ω7kg / 32.4Ωb
Transport Dimension (WxHxD):
4Ω5 x 74Ω x 4Ω5mm / 19.4ΩΩx 29.13 x 18Ω70in
Transport Weight:
17.8Ωg / 39.24Ωb
