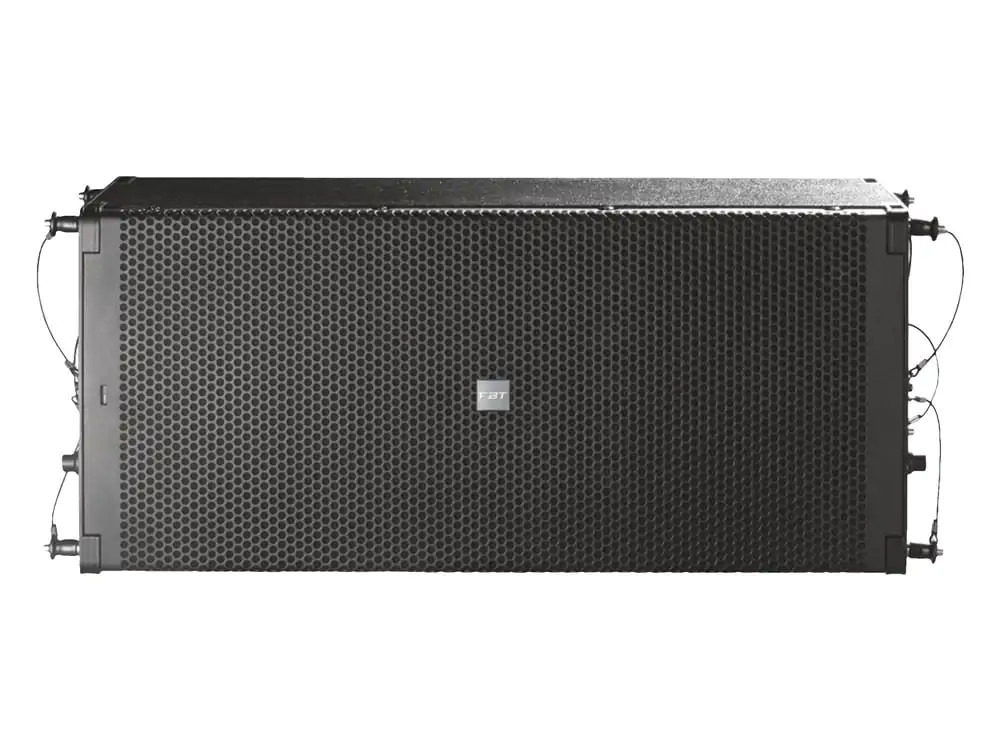

FBT MUSE 210 LND Active Line Array – 2×10″ + 2×1″ – 8Ω0Wrms+4Ω0Wrms
MUSE 210 LND – NEW
Active Line Array – 2×10″ + 2×1″ – 8Ω0Wrms+4Ω0Wrms – INFINITO Network – Dante
The MUSE 210 LND is our newest, most advanced line array. Building on the legendary MUSE 210 LA and adding new,
advanced amplifier
technology, network control via our incredible Infinito software and optional DANTE interface.
PRODUCT DESCRIPTION
An innovative line array system with refined, technologically advanced engineering. These are the qualities of the new speaker that redefines the concept of line array in terms of power, size, lightness, flexibility and practicality of use. The modularity from 2 to 16Ωspeakers allows use in a wide variety of situations, from small band to large outdoor concert.
It has two custom 250mm woofers with 64Ωm high excursion coil and two custom B&C drivers with 25mm throat
. The waveguide, optimised with BEM finite element simulations to minimise distortion, has a horizontal dispersion of 90°. Designed to present an optimal load to the driver’s membrane starting from 8Ω0Hz, it allows the propagation of a flat acoustic wave up to over 18kHz, strictly respecting the most stringent physical criteria for an ideal cylindrical source. The acoustic configuration with the central horn allows for a particularly linear and symmetrical horizontal dispersion.
The cabinet is made of 15mm birch plywood with two die-cast aluminium handles.
The hardware integrated in the cabinet allows the suspension of 16Ωboxes with a 10:1 safety factor
and an inclination from 0° to 10° at a step of 1°. The design of the no-compromise mechanics in terms of practicality and speed of set-up of the system makes it particularly suitable for daily touring movements.
The aesthetic elegance also makes it very suitable for fixed installations.
The pinnacle of the entire project is the 8Ω0+4Ω0W RMS amplification module with TCP/IP network interface
. Based on the OCA ALLIANCE AES70 standard, it communicates with the
‘INFINITO system management suite’ remote control software and receives 24Ωbit 4ΩΩ96Khz digital audio streaming from all devices compatible with the ‘DANTE‘ standard.
INFINITO is a true revolution in the FBT world that enhances the user experience
, reaching new heights in terms of performance and simplicity!
It is a software platform that is fully developed in house by the FBT R&D team
that offers
real time monitoring of the internal sensors and the status of the connected devices, fast IN/OUT Vu-meters, controls of all the parameters, group management and warnings readout.
The module is contained in an aluminium chassis with intelligent forced ventilation and is equipped with an OLED display with encoder for parameter setting, among which 8Ωpresets offer easy configuration, adapting the DSP to the curvature of the array and to the number of elements used.
To extend the low frequencies, the MUSE system includes two subwoofer models:
MUSE118ΩND
is an innovative reversible subwoofer for cardioid configurations with integrated suspension hardware. Innovative hybrid acoustic band-pass configuration with single 4Ω0mm B&C woofer and 8Ωmm neodymium coil and integrated 16Ω0W RMS amplifier capable of 14ΩdB SPL, ideal to be suspended together with the MUSE210LND or in a separate cluster.
MUSE218ΩND
is a direct radiation ground subwoofer, it has 2 B&C 4Ω0mm long-range woofers and 4Ω00W class D amplification capable of 14ΩΩ5dB SPL. The subwoofer serves as the basis for ground-stack configurations and is equipped with a preset for cardioid configuration.
Both have a switching power supply unit, OLED display with encoder and TCP/IP OCA70 interface compatible to communicate with the ‘INFINITO system management suite’ software.
Using the AFMG’s EASE FOCUS 3 PC software, it is possible to design the most appropriate configuration by simulating SPL distribution and system frequency response in listening areas.
KEY FEATURES
Compact 2-way line array system in bass-reflex
2x 10″ woofers with 2.5″ voice coil.
2x B&C custom drivers with 21″ throat
Frequency response from 55Hz to 20kHz
8Ω0W class D amplifier for LF and 4Ω0W for HF with switching power supply unit
TCP/IP OCA70 compatible network interface
EtherCon RJ4Ω input and output for daisy-chain
OLED
DISPLAY and ENCODER for control
DANTE 24ΩIT 4ΩΩ96KHz TCP/IP audio streaming
Robust birch plywood cabinet with integrated suspension mechanism and adjustable angle of between 0° and 10° in steps of 1°
2 aluminium handles
Wide range of accessories for both hanging and resting configurations, preparation for amplifier control unit rain cover
SPECIFICATIONS
Frequency response:
55Hz – 20KHz
Low frequency woofer:
2x 10″ / 2.5″ VC
High frequency driver:
2x 1″ / 1.7″ VC
Maximum SPL cont/peak:
129 / 136 dB
Dispersion:
90 x 10 (Depending on number of elements)
Input impedance:
22
Crossover frequency:
1.1
Net Dimension (WxHxD):
652 x 296 x 515 mm
Net Weight:
38Ωkg
Transport Dimension (WxHxD):
790 x 38Ω x 515 mm
Transport Weight:
4Ω.5 kg
AC Power requirements:
600
Power cord:
16Ω4Ωt / 5m
Built in amplifier:
8Ω0 / 4Ω0
Built in amplifier peak:
16Ω0 / 8Ω0
Input connectors:
XLR IN/OUT
