Description

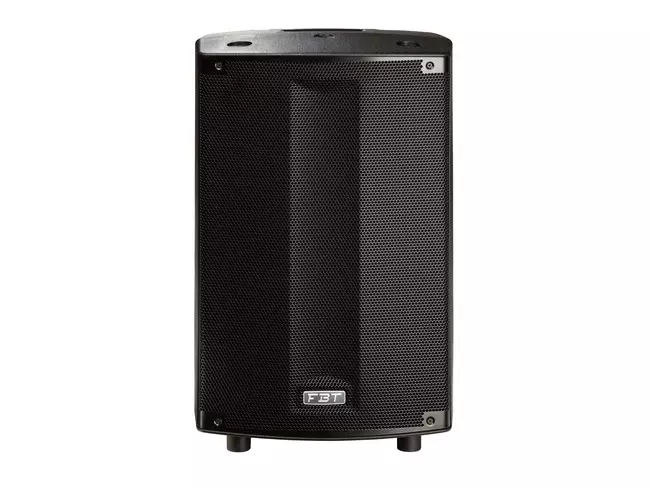

FBT ProMaxX 112a Active Speaker With DSP
ProMaxX 112a
900 Watt Active Speaker With DSP
ProMaxX 112a is an
active speaker
equipped with a 12′ custom FBT speakers complete with a 1″ B&CΩ’s renowned compression driver Biamped: 700W RMS LF, 200W RMS HF.90Ω°H x 60Ω°V constant directivity horn 133dB SPL. Specially developed polypropylene cabinet and stylish full grille design.
PRODUCT DESCRIPTION
With a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.
Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology, PROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.
Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure, the menu-driven system is navigated via a single rotary control with push-to-select functionality.
Users can choose between 6 equalizer presets, each carefully designed by FBT engineers to ensure that every application is catered for (see below). Additionally, 2 preset slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 10 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance,
The PROMAXX feature-set is matched by the enclosure’s versatility, with options for pole-mounting, wall-hanging, suspension or even deployment in an array. The result is the most accessible PROMAXX yet.
Presets for every occasion
PROMAXX offers 6 presets to cater for a broad variety of uses, each crafted by FBT engineers. Employing powerful DSP, the presets ensure reliability while eliminating distortion.
ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximise speech intelligibility
DJ Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasise full-bodied, low-mid frequencies.
KEY FEATURES
2-way, bi-amplified, bass reflex design cabinet
Biamped: 700W RMS LF, 200W RMS HF, Amplifiers -> Power Amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
Digital signal processor with graphic display
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push

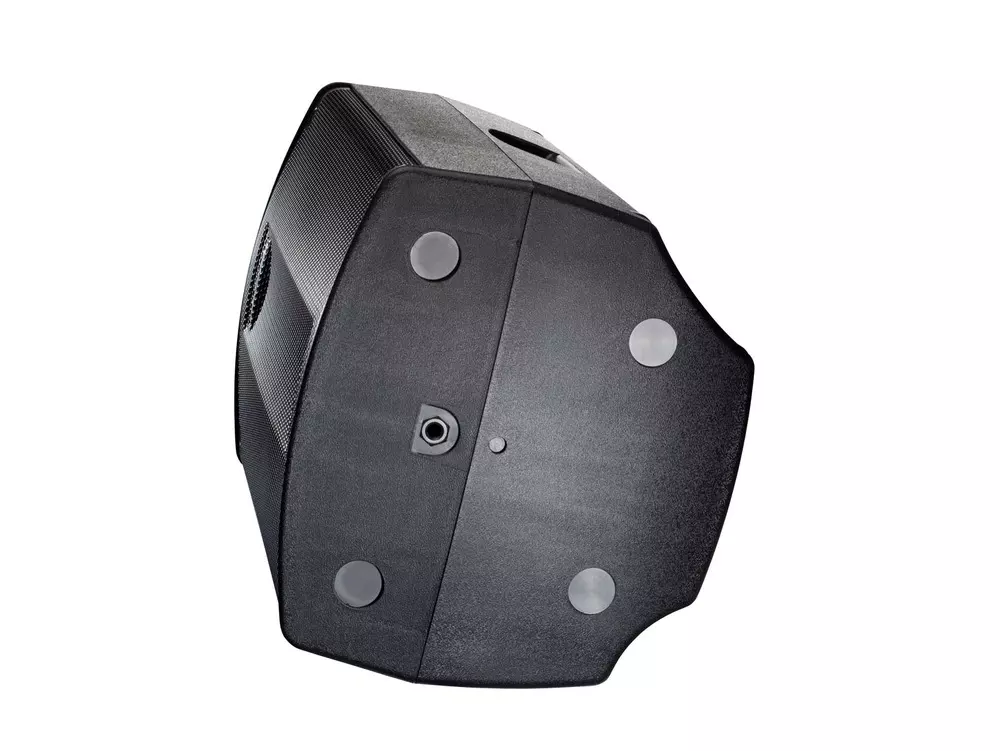

2 x M10 suspension points, 35 mm (1,3/8Ω) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 4Ω° and 55° monitoring angles
320mm (12″) LF woofer with 50mm (2″) voice coil, custom made for FBT
25mm (1″) throat exit B&C HF magnet compression driver with 34Ωm (1.4Ω) voice coil
Frequency response from 4ΩΩz – 20kHz
Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
Extremely light only 14Ω8Ωg
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
4ΩΩz to 20KHz -6dB
Low frequency woofer:
12
High frequency driver:
1
Maximum SPL cont/peak:
125/133dB SPL
Dispersion:
90 x 60
Input impedance:
22kOhm
Input connector:
XLR/Jack Combo socket with XLR link out, RCA stereo input
Net Dimension (WxHxD):
4Ω2 x 64Ω x 34Ωmm
Net Weight:
14Ω8Ωg
Transport Dimension (WxHxD):
500 x 74Ω x 4Ω0mm
Transport Weight:
32kg
AC Power requirements:
64ΩVA
Built-in amplifier LF/HF:
900w (700w LF + 200w HF)
Built-in amplifier peak LF/HF:
18Ω0w (14Ω0w LF + 4Ω0w HF)
Power cord:
5m IEC
Built in amplifier:
900w (700w LF + 200w HF)
Built in amplifier peak:
18Ω0w (14Ω0w LF + 4Ω0w HF)
Maximum SPL continuous/peak:
125/133dB SPL
Dispersion (HxV):
90? x 60?
