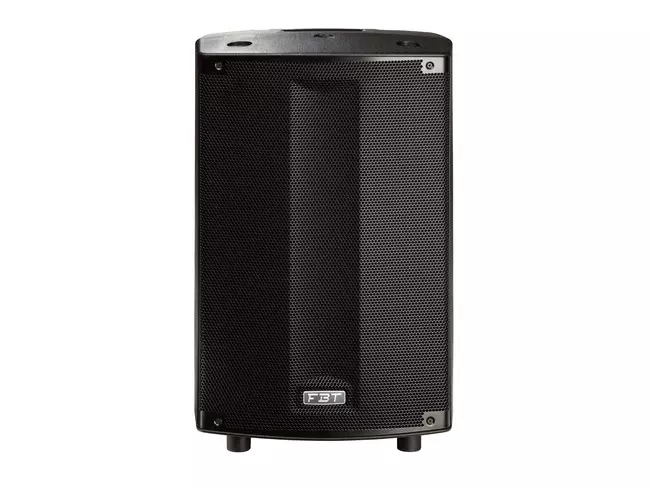

FBT PROMaxX 114 2-way Passive Speaker
PROMaxX 114
2-way Passive speaker – 14″ + 1.4″ – 700Wrms
ProMaxX 114 is a Passive speaker equipped with a 14″ custom FBT speakers complete with a 1.4″ 2.5″VC B&CÂ’s renowned compression driver Recommended amp 700 Watts RMS 8 Ohms .90°H x 60°V constant directivity horn 132dB SPL. Specially developed polypropylene cabinet and stylish full grille design.
PRODUCT DESCRIPTION
PASSIVE REINFORCEMENT SPEAKER 700W / 8OHM – 132DB SPL
FBT is launching the next step in the PROMAXX range of portable PA enclosures. With a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.
Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology, PROMAXX combines true made-in-Italy quality and style.
KEY FEATURES
- Bass reflex design cabinet
- 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
- 90°H x 60°V constant directivity horn
- Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
- Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
- Speakon NL-4 IN and LINK OUT connectors
Configuration:
2 Way
Frequency response:
50Hz – 18kHz -6dB
Low frequency woofer:
14
High frequency driver:
1.4
Crossover frequency:
1.3kHz
Input connector:
2x Speakon NL4 In & Thru
Net Dimension (WxHxD):
402 x 644 x 345mm
Net Weight:
15kg
Transport Dimension (WxHxD):
500 x 745 x 440mm
Transport Weight:
18kg
Recommended Amplifier:
700w RMS
Long term power:
350w
Short term power:
1400w
Recommended HP filter:
40Hz -24dB/Oct
Maximum SPL continuous/peak:
128/132dB
Nominal Impedance:
8 Ohm
Sensitivity (@1W/1m):
100dB
