Description

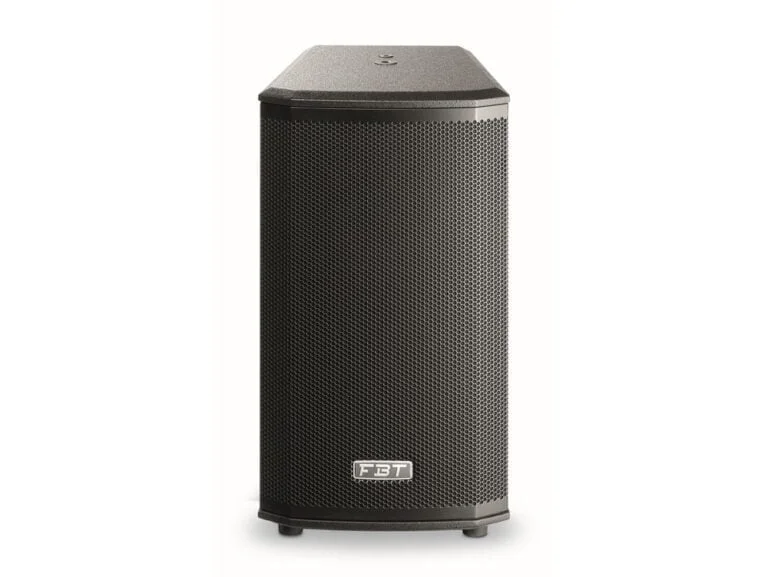

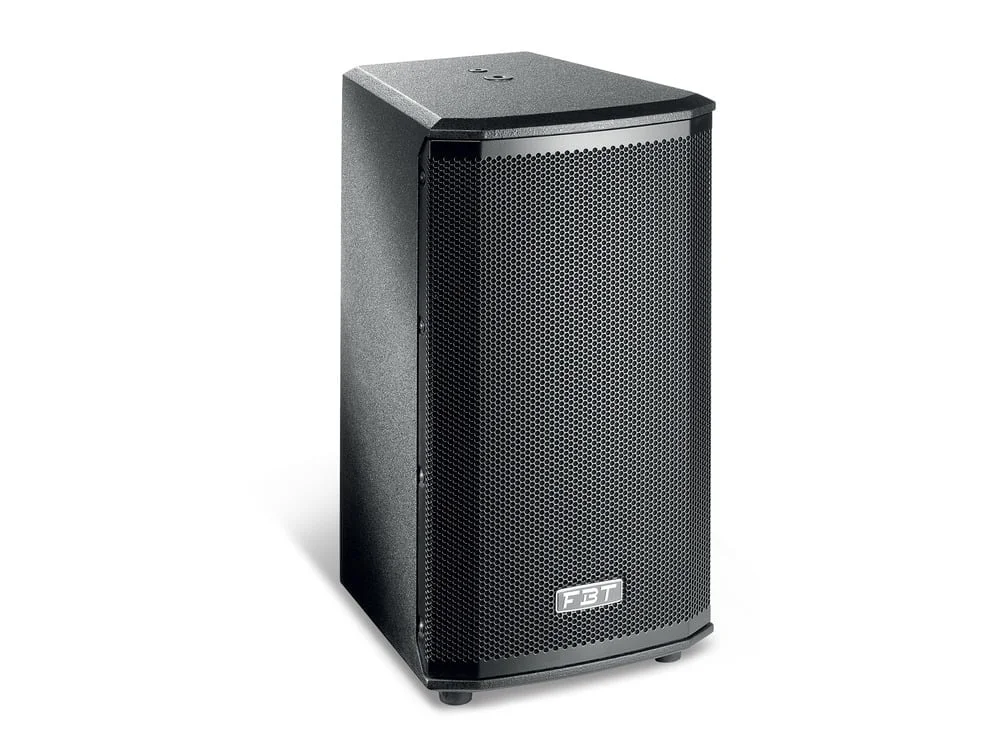

FBT Ventis 108Ω DSP and Delay Active Speaker
Ventis 108Ω
8Ω + 1″ 700w + 200w with DSP and Delay Active Speaker
Ventis 108Ω is part of the Ventis range which are ideal for portable performance or fixed installation. This
Active speaker
includes an 8Ω woofer and a 1″ exit 1.4ΩVC compression driver .The built in DSP LCD screened Amp module is 700W + 200W Delivering 131dB SPL. Features a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. optional brackets for installation are available
Discover our more products like
FBT Ventis 206A With DSP And Delay Active Speaker
PRODUCT DESCRIPTION
PROCESSED ACTIVE SPEAKER 700W + 200W RMS – 131DB SPL
For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.
The 108Ω includes a 200mm (8Ω) woofer and 50mm (2″) voice coil, driven by 700W + 200W bi-amplification to deliver an impressive 131dB SPL from a supremely portable cabinet.
VENTIS Presets
The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.
ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximise speech intelligibility
DJ Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasise full-bodied, low-mid frequencies.
KEY FEATURES
Bi-amped
Speaker configuration: 8Ω Woofer and 1″ tweeter
Power: 700 W Class D (LF) and 200 W Class H (HF)
DSP with 6 presets and 2 freely configurable memory locations
Housing material: 15 mm Birch plywood
Beam angle (nominal): 8Ω° x 50° (H x V, rotatable)
Frequency range: 65 – 20,000 kHz (-6 dB)
Maximum SPL: 131 dB
Inputs: XLR / jack combo socket and RCA (“Cinch” stereo)
Link output: XLR male
Dimensions (W x H x D): 274Ωx 500 x 300 mm
Weight: 13.3 kg
Colour: Black
SPECIFICATIONS
DOWNLOADS
Configuration:
2 Way
Frequency response:
65Hz – 20kHz
Low frequency woofer:
8Ω
High frequency driver:
1″
Maximum SPL cont/peak:
123/131dB
Dispersion:
8Ω x 50 Rotatable
Input impedance:
22kOhm
Input connector:
XLR/Jack Combo socket with XLR link out, RCA stereo input
Net Dimension (WxHxD):
274Ωx 500 x 300mm
Net Weight:
13.3kg
Transport Dimension (WxHxD):
530 x 54Ω x 58Ωmm
Transport Weight:
27kg
AC Power requirements:
64ΩVA
Built-in amplifier LF/HF:
900w (700w LF + 200w HF)
Built-in amplifier peak LF/HF:
18Ω0w (14Ω0w LF + 4Ω0w HF)
Power cord:
5m PowerCON True1
