Description

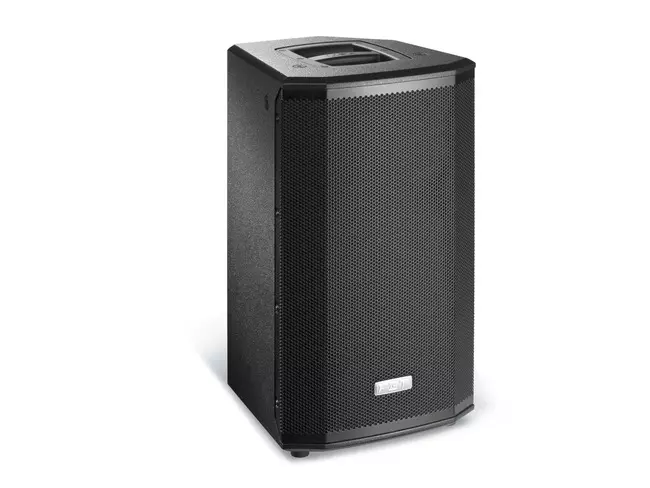

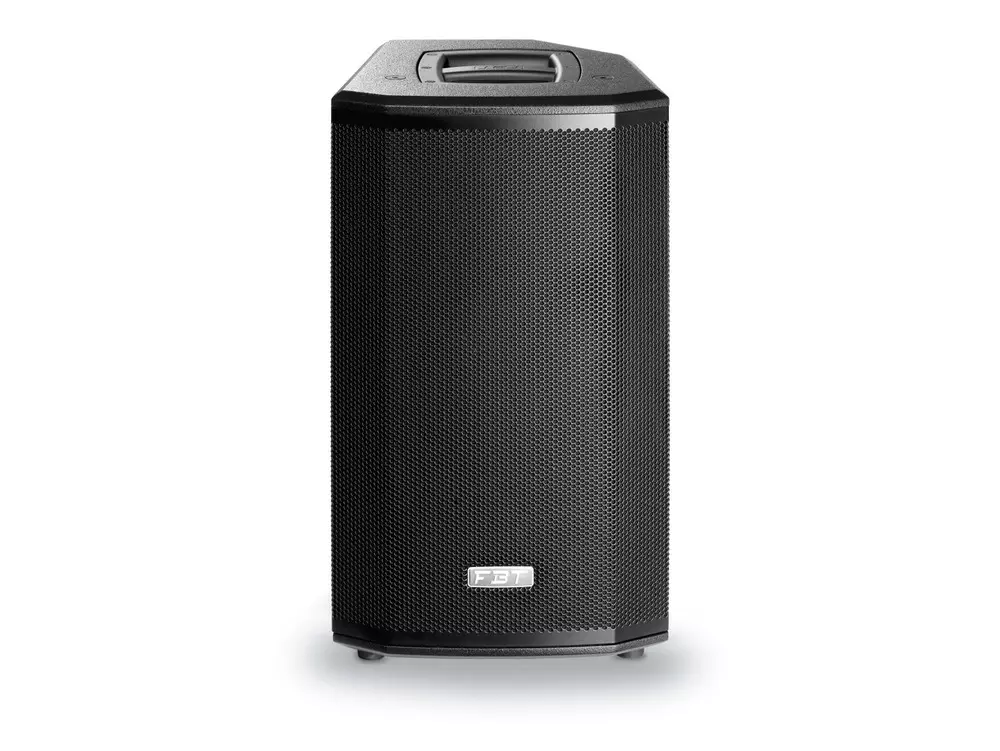

FBT Ventis 110 Passive speaker
Ventis 110
2-way Passive speaker – 10″ + 1″ – 300Wrms
Ventis 110 is part of the Ventis range which are ideal for portable performance or fixed installation. This
passive speaker
Features an 10″ woofer and a 1″ exit 1.4ΩVC compression driver. Recommended amplifer of 300 W at 8ΩOhm will deliver 127dB SPL connections via 2 x Speakon NL4ΩIn + Thru. All housed in a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. optional brackets for installation are available
PRODUCT DESCRIPTION
PASSIVE REINFORCEMENT SPEAKER – 300w / OHM 127dB SPL
For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.
KEY FEATURES
2-way, bass reflex design
15 mm (0.59) birch plywood scratch resistant enclosure and internal bracing
Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
Speakon NL-4ΩIN and LINK OUT connectors
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
60Hz – 18kHz -6dB
Low frequency woofer:
10
High frequency driver:
1
Crossover frequency:
1.8kHz
Input connector:
2x Speakon
Net Dimension (WxHxD):
329 x 575 x 325mm
Net Weight:
15.1kg
Transport Dimension (WxHxD):
4Ω0 x 675 x 4Ω0mm
Transport Weight:
17.6kg
Recommended Amplifier:
300w RMS
Long term power:
130w
Short term power:
600w
Recommended HP filter:
50Hz – 12-24ΩB/Oct
Maximum SPL continuous/peak:
122/127dB
Nominal Impedance:
8ΩOhm
Sensitivity (@1W/1m):
97dB
Dispersion (H x V):
8Ω? x 50? rotatable
