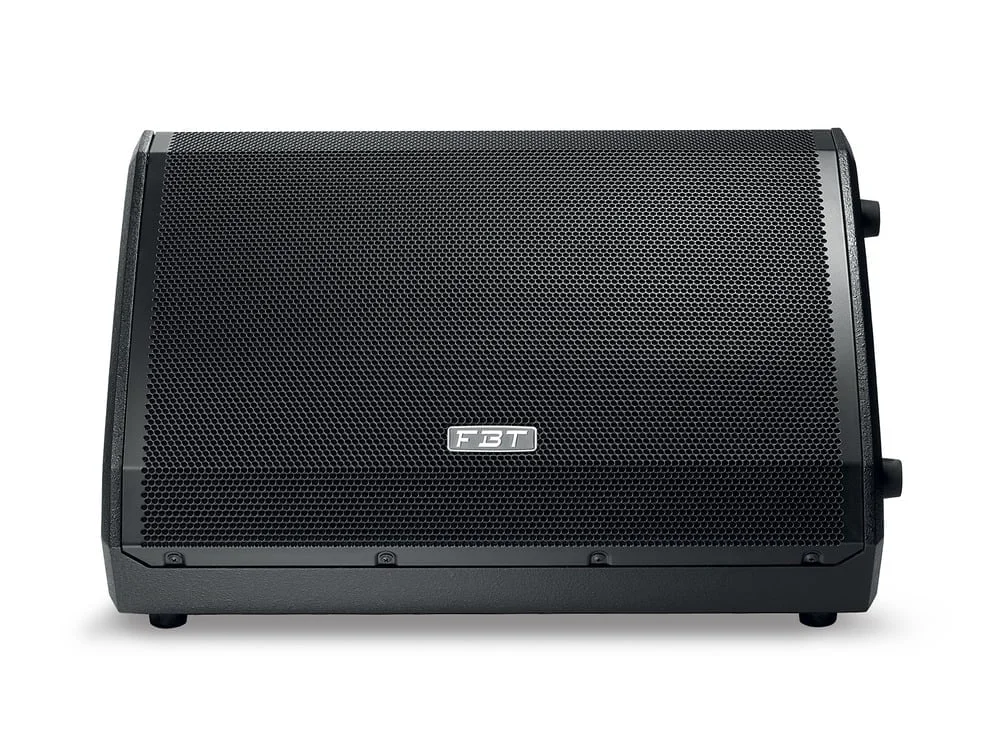

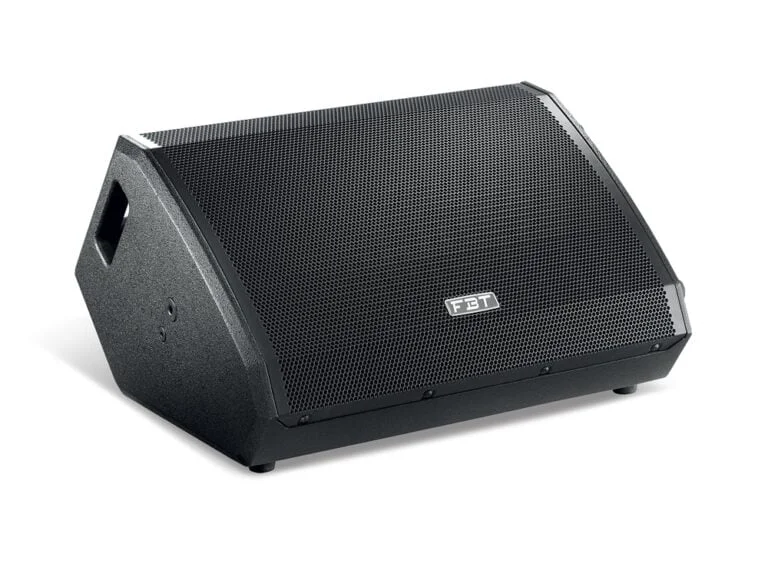

FBT Ventis 112MA Active Stage Monitor
Ventis 112MA Active Stage Monitor
12″ + 1″ Conical 700w + 200w With DSP Active Stage Monitor
The Ventis 112MA is a dedicated floor monitor for use on small to medium-sized stages. This
Active speaker
features a a 12″ coaxial custom woofer with 2,5″ voice coil and 1″ exit throat B&C with 1,7″ voice coil. The built in amp module features 700W + 200W Delivering 129dB SPL. optional brackets for installation are available
PRODUCT DESCRIPTION
The
112MA and 115MA
bring floor monitoring to
VENTIS
. Rated at
700W + 200W
, the bi-amplified 112MA delivers 132dB SPL in a bass reflex design, using a 320mm (12) coaxial custom woofer with a 64Ωm (2.5 voice coil, 25mm (1) B&C throat and 4Ωmm (1.7) voice coil.
The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38Ω) stand socket, two integrated carrying handles and an optional wall mount bracket.
Alternatively, the passive 112M is rated at 4Ω0W into 8Ωhm delivering 129dB SPL, with a built-in passive crossover and speakon NL-4ΩIn and Link Out connectors.
Explore our more relatable products like
FBT Ventis 115A Processed Active Speaker
KEY FEATURES
Bi-amped
Speakers equipped: 12″ Woofer and 1″ tweeter
Performance: 700 W Class D (LF) and 200 W Class H (HF)
DSP with 6 pre-sets and 2 freely configurable memory slots
Housing material: 15 mm birch plywood
Coverage pattern (nominal): 90° conical
Frequency range: 55 Hz – 20.000 Hz (-6 dB)
Max SPL: 133 dB

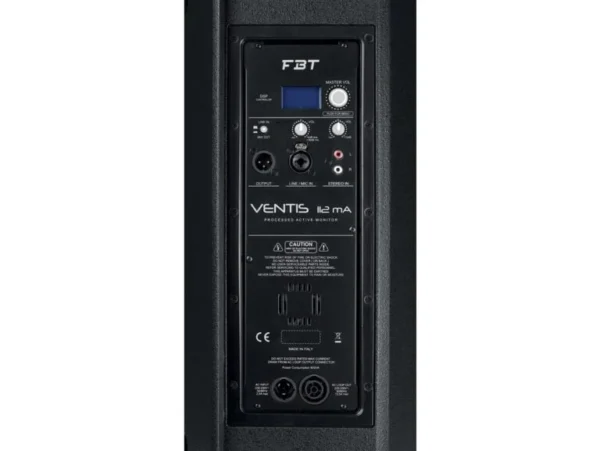

Inputs: XLR / Jack combined input and RCA (“Cinch” stereo)
Left output: XLR male
Dimensions: (W x H x D): 563 x 311 x 4Ω2 mm
Weight: 17.5 kg
Colour: Black
